IY-240 Heavy-Lift Multirotor Cargo UAV

IY-240 Heavy-Lift Multirotor Cargo UAV

The IY-240 is a heavy-lift multirotor cargo UAV designed for industrial material transport, emergency logistics, high-altitude delivery, field operation support, and heavy-duty unmanned transport projects. With a 16-rotor structure, 168 kg maximum safe payload, 409 kg maximum takeoff weight, 6000 m operating altitude, and strong wind resistance, it provides a professional UAV platform for demanding B2B cargo missions.

IY-240 heavy-lift multirotor cargo UAV main product image

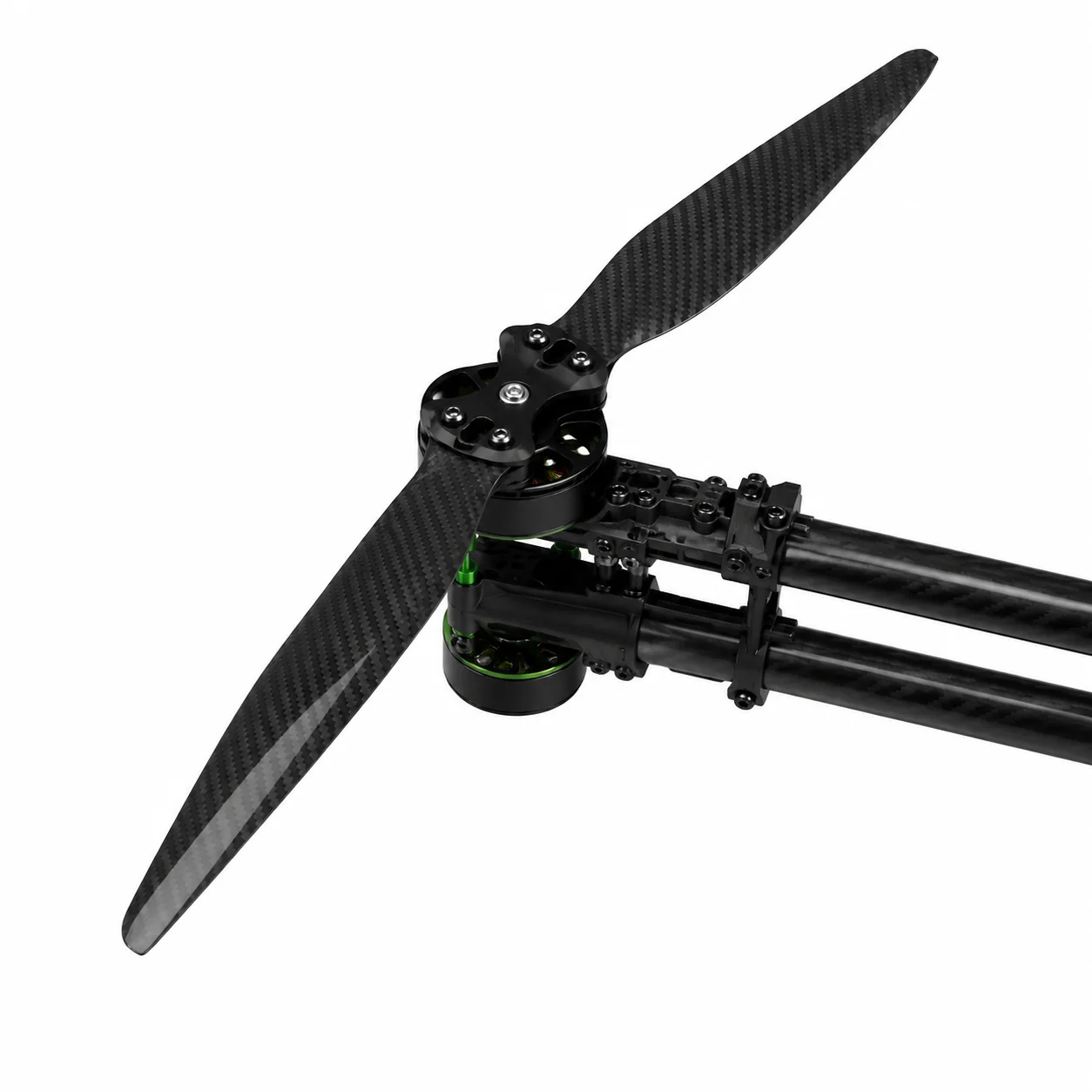

IY-240 carbon fiber drone arm detail

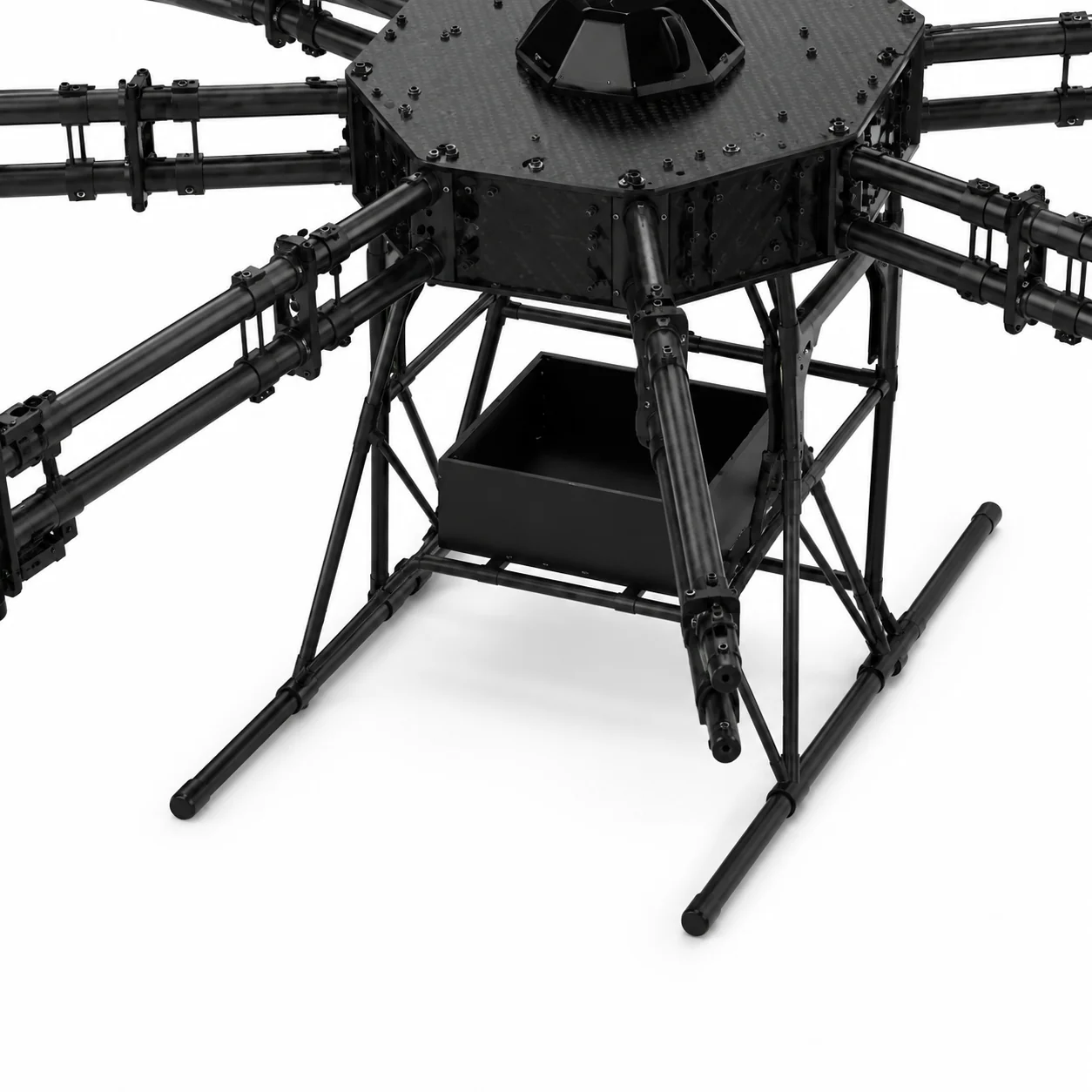

IY-240 cargo UAV landing gear and payload bay detail

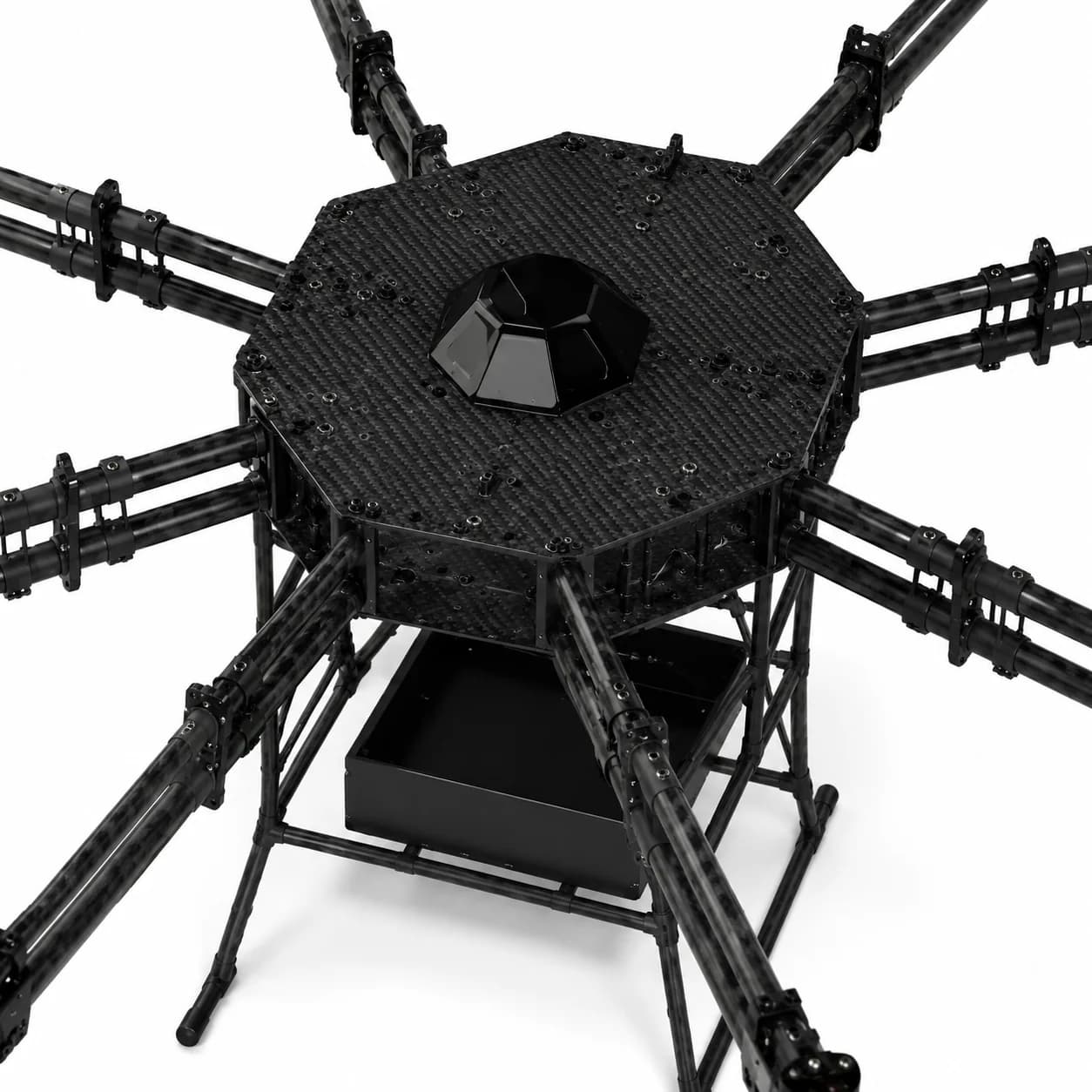

IY-240 heavy-lift cargo UAV frame structure detail

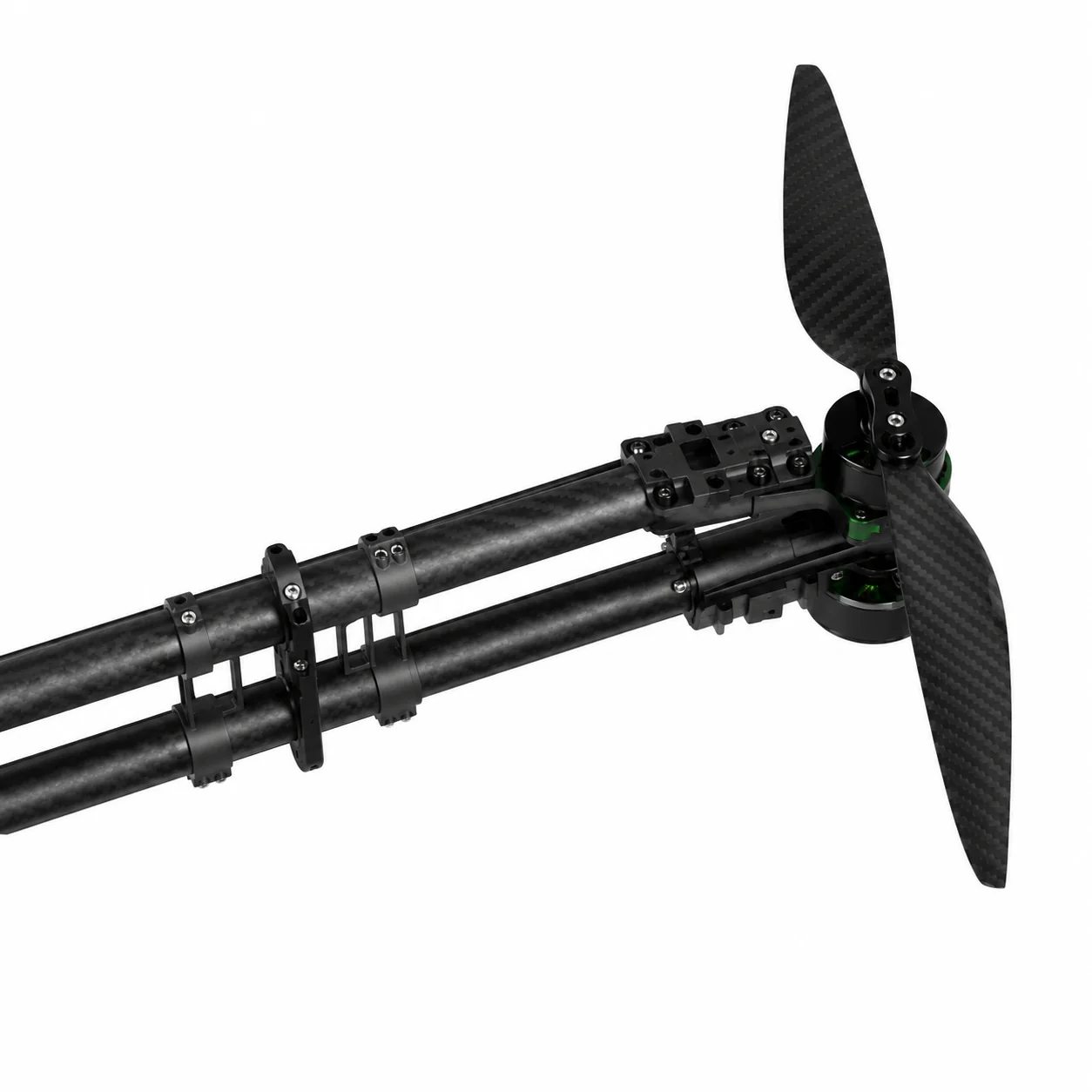

IY-240 heavy-lift UAV rotor system detail

Key Features

  • 16-rotor heavy-lift multirotor platform for high-capacity cargo missions
  • 168 kg maximum safe payload for professional transport applications
  • Maximum net payload up to 240 kg under specified conditions
  • 409 kg maximum takeoff weight for heavy-duty UAV deployment
  • 6000 m maximum operating altitude for high-altitude and complex terrain use
  • ≥18 min rated endurance for practical payload missions
  • ≥50 min unloaded hover time for platform testing and standby operation
  • Level 6 or above wind resistance for outdoor field missions
  • Suitable for industrial logistics, emergency delivery, construction support, and remote site transport

Product Overview

The IY-240 Heavy-Lift Multirotor Cargo UAV is developed for B2B customers who need a high-capacity unmanned transport platform for industrial logistics, emergency material delivery, mountain transport, construction support, power line maintenance, disaster relief, and remote field operations. Compared with smaller cargo drones, this model is better suited for heavy payload tasks where ground transport is slow, costly, or difficult. Its 16-rotor configuration improves lifting stability and redundancy, while the large-capacity battery system supports practical field deployment. For project buyers, payload mounting interface, battery package, charging solution, spare parts, packaging, training support, and after-sales service can be configured according to application needs.

Request a Quote

Technical Specifications

Core Specifications
Product Name
IY-240 Heavy-Lift Multirotor Cargo UAV
Rotor Configuration
16 Rotors
Maximum Safe Payload
168 kg
Maximum Net Payload
Up to 240 kg (specified conditions)
Maximum Takeoff Weight
409 kg
Maximum Operating Altitude
6000 m
Rated Endurance
≥18 min
Unloaded Hover Time
≥50 min
Wind Resistance
Level 6 or above

Related Products

Explore related products in the Heavy-Lift Cargo UAVs range to compare deployment form factors, response methods, and system integration options for similar project requirements.

Explore Related Categories

Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.

Heavy-Lift Cargo UAVs

Heavy-lift cargo UAVs for industrial logistics, remote delivery, and mission-based aerial transport across construction, energy, emergency, and field operations.

FPV Drones

FPV drones for training, testing, custom integration, and configurable first-person flight projects with low-latency control and flexible setup options.

Defense & Tactical UAVs

Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.

Agriculture UAV Drones

Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.

Counter-Drone Systems

Counter-drone systems for airports, critical infrastructure, industrial facilities, and public security projects, covering detection, tracking, identification, and authorized response workflows.

Frequently Asked Questions

What applications is the IY-240 suitable for?

The IY-240 is designed for heavy-duty industrial logistics, emergency material delivery, mountain transport, construction support, power line maintenance, disaster relief, and remote field operations. It is suitable for B2B projects that require high payload capacity and reliable unmanned transport in complex environments.

What payload capacity does the IY-240 support?

The platform supports a maximum safe payload of 168 kg and can provide up to 240 kg net payload under specified conditions. Final payload capability depends on mission profile, altitude, battery setup, and environmental conditions.

What are the altitude and endurance capabilities?

The IY-240 supports up to 6000 m operating altitude, with rated endurance of ≥18 min and unloaded hover time of ≥50 min. Actual performance varies with payload weight, weather conditions, and operating profile.

Why use a 16-rotor heavy-lift platform?

The 16-rotor architecture provides better lifting stability, redundancy, and operational reliability for heavy payload missions. It is well suited for demanding transport tasks where mission continuity and safety are critical.

Can the IY-240 be customized for project requirements?

Yes. B2B customization can include payload mounting interfaces, battery package, charging solution, spare parts, packaging, training support, and after-sales service according to project requirements.
