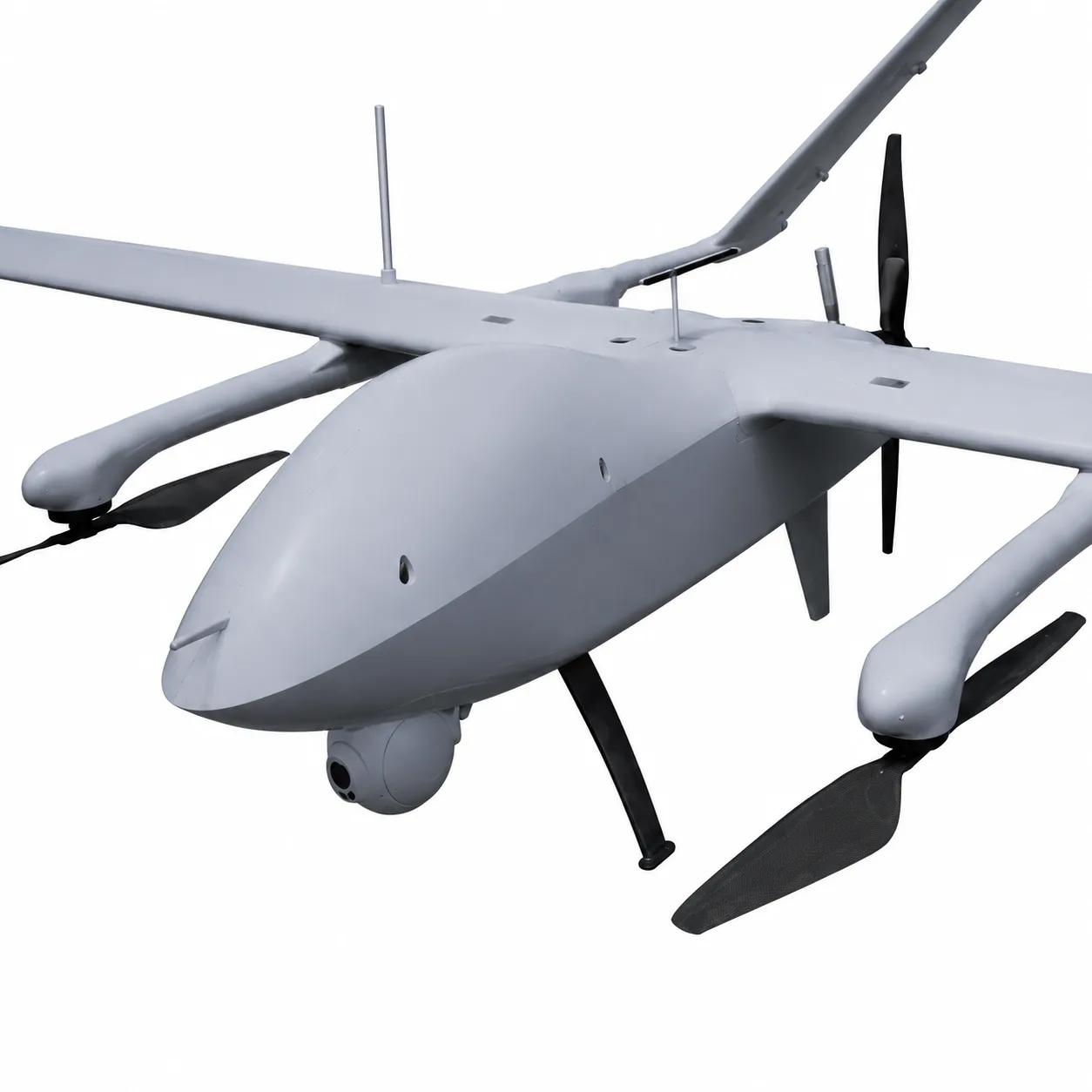

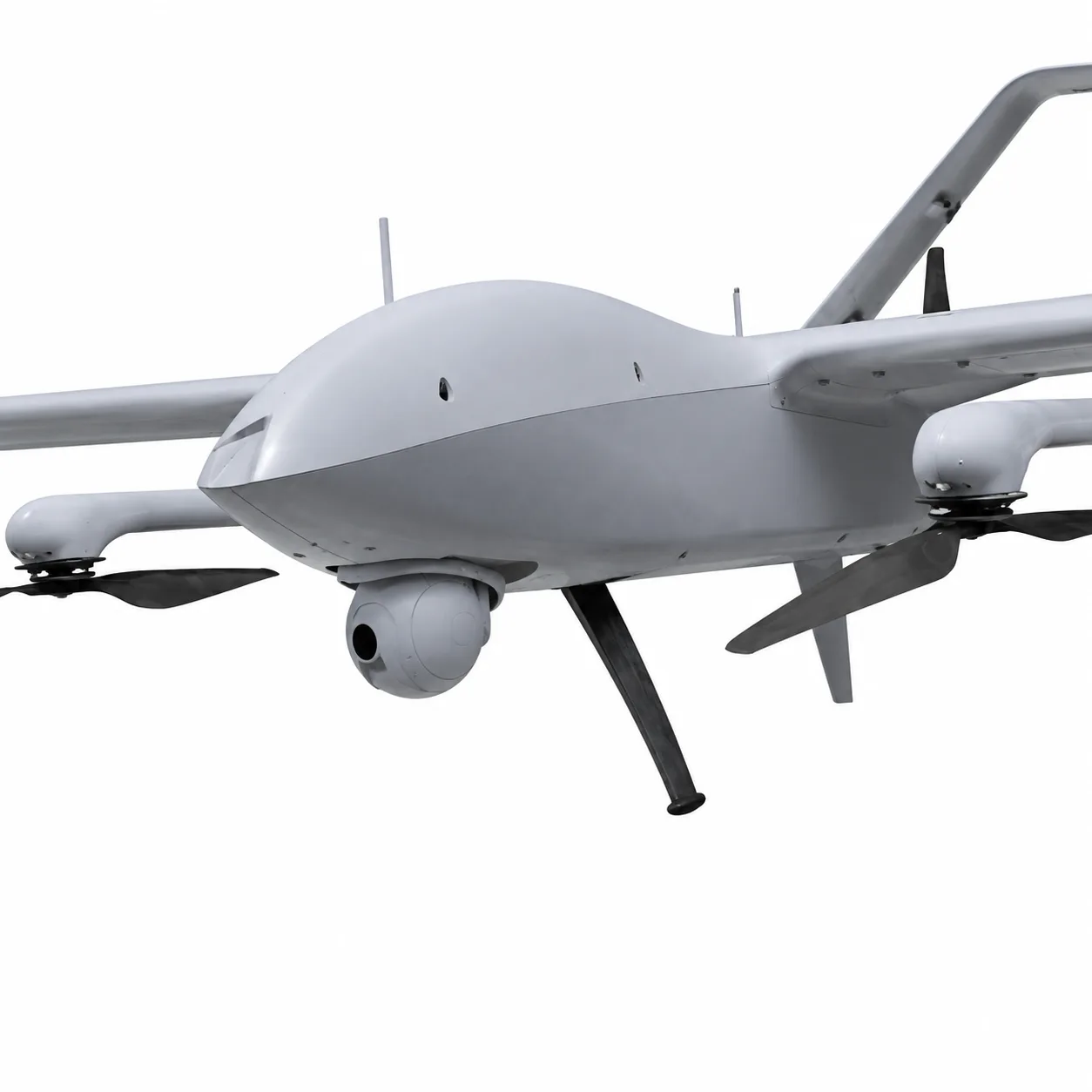

HY6520 Heavy-Payload Long-Endurance Hybrid VTOL Fixed-Wing UAV
The HY6520 is a heavy-payload hybrid VTOL fixed-wing UAV designed for long-endurance missions in complex terrain and remote field environments. With a 40 kg maximum payload, 160 kg maximum takeoff weight, 600 min maximum endurance, 5500 m maximum cruising altitude and 50-100 km customizable control radius, it provides a professional UAV platform for high-altitude logistics, emergency rescue, border and maritime patrol, forest fire monitoring, geological survey and communication relay applications.
Key Features
- Maximum takeoff weight of 160 kg for heavy-duty long-endurance missions
- Maximum payload capacity of 40 kg for logistics and mission equipment integration
- Maximum endurance up to 600 min and around 360 min with 30 kg payload
- Cruise speed of 95 km/h and maximum flight speed of 150 km/h
- Customizable control radius of 50-100 km for mission planning flexibility
- Maximum climbing speed of 4 m/s and maximum descent speed of 5 m/s
- Maximum cruising altitude of 5500 m and maximum takeoff altitude of 3500 m

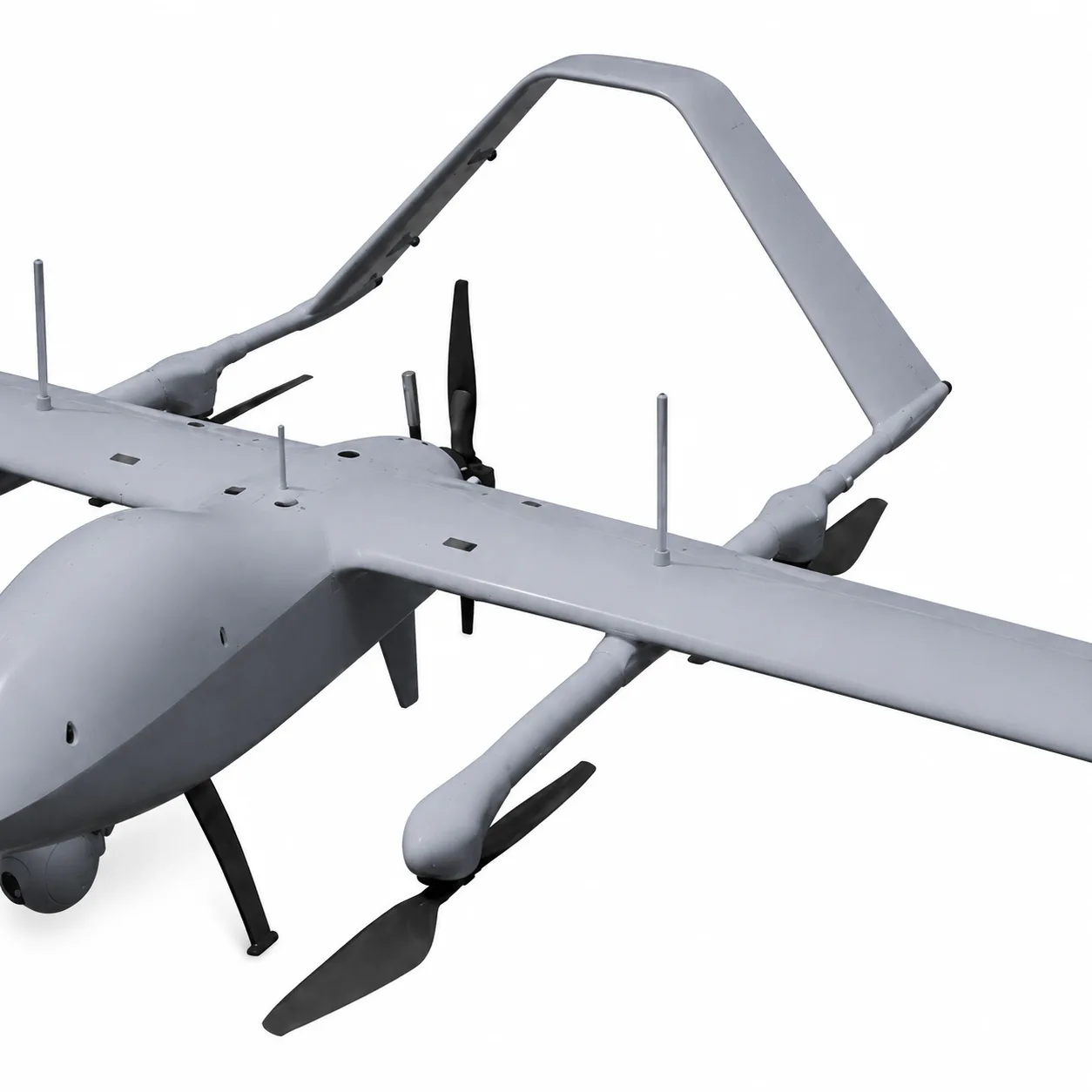

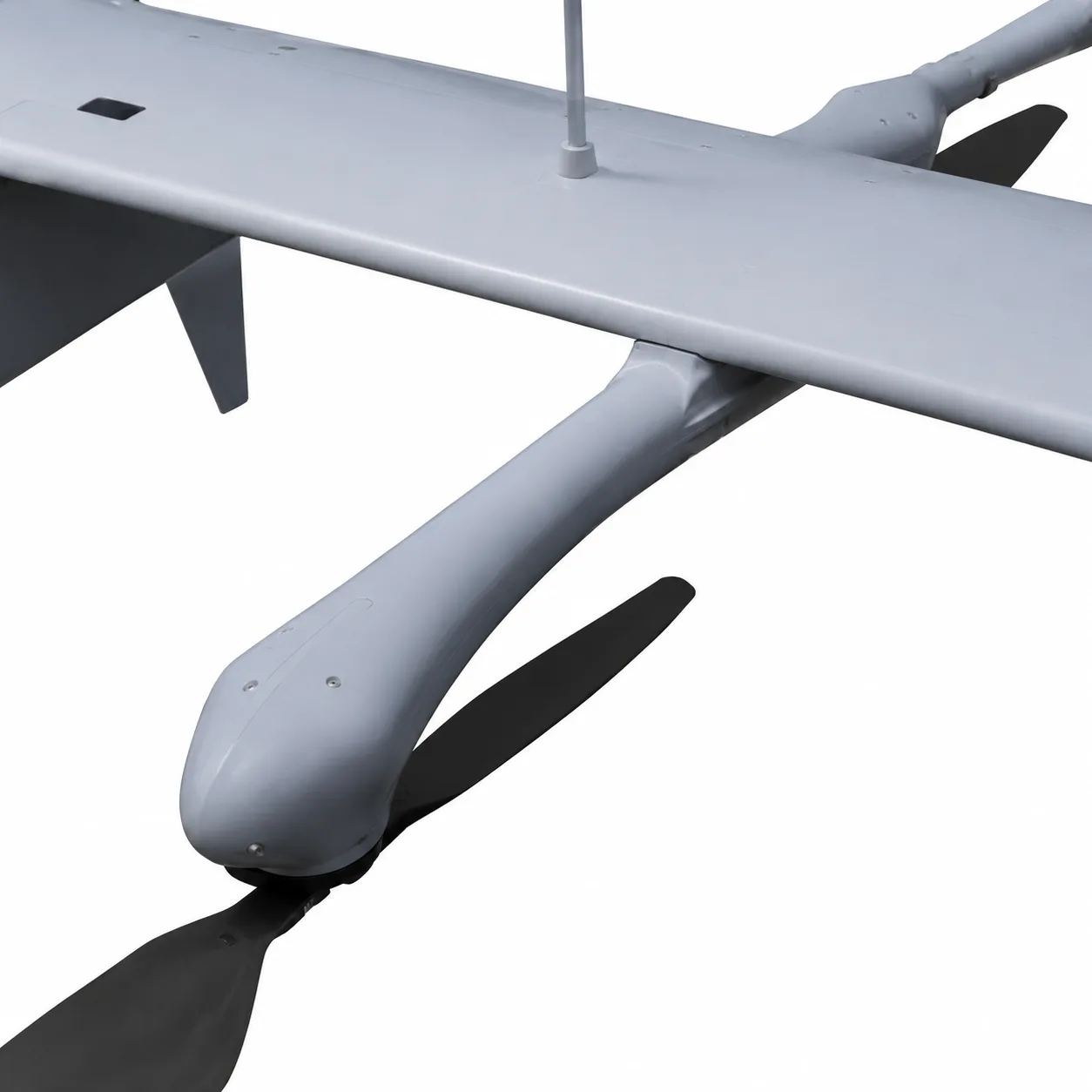

- Hybrid VTOL fixed-wing architecture with 42 L fuel tank
- Working temperature range from -10 to 60°C and Level 7 wind resistance
- Suitable for high-altitude logistics, emergency rescue, patrol, survey and communication relay
Product Overview
The HY6520 Heavy-Payload Long-Endurance Hybrid VTOL Fixed-Wing UAV is designed for B2B customers who require long flight endurance, vertical takeoff and landing capability, strong payload capacity and reliable operation in complex outdoor environments. It combines VTOL deployment flexibility with fixed-wing cruise efficiency, making it suitable for missions where runway access is limited but long-range performance is required. With a maximum takeoff weight of 160 kg and a maximum payload capacity of 40 kg, the HY6520 can support multiple mission payload configurations for logistics transport, emergency rescue, patrol, monitoring, survey and communication relay projects. The platform supports a cruise speed of 95 km/h, maximum flight speed of 150 km/h, maximum cruising altitude of 5500 m and Level 7 wind resistance, providing stable performance for demanding field missions. The HY6520 offers up to 600 min maximum endurance and approximately 360 min endurance with a 30 kg payload, depending on payload configuration, fuel load, altitude, weather conditions and mission profile. Its hybrid VTOL fixed-wing architecture, 42 L fuel tank, wide working temperature range and customizable control radius make it suitable for long-duration operations in high-altitude areas, forests, coastlines, remote sites and complex terrain.
Technical Specifications
Core Specifications
Model
HY6520
UAV Type
Heavy-Payload Long-Endurance Hybrid VTOL Fixed-Wing UAV
Maximum Takeoff Weight
160 kg
Maximum Payload Capacity
40 kg
Cruise Speed
95 km/h
Maximum Flight Speed
150 km/h
Control Radius
50-100 km (customizable)
Maximum Climbing Speed
4 m/s
Maximum Descent Speed
5 m/s
Maximum Takeoff Altitude
3500 m
Maximum Cruising Altitude
5500 m
Wind Resistance
Level 7
Working Temperature
-10 to 60°C
Fuel Tank Capacity
42 L
Maximum Endurance
600 min
Endurance (30 kg Payload)
360 min
Dimensions
6520*3264*1170 mm
Packaging Dimensions
2450*1440*1430 mm (including wheel)
Related Products
Explore related products in the Heavy-Lift Cargo UAVs range to compare deployment form factors, response methods, and system integration options for similar project requirements.
Heavy-Lift Cargo UAVs
Heavy-Lift Cargo UAVsIY-240 Heavy-Lift Multirotor Cargo UAV
The IY-240 is a heavy-lift multirotor cargo UA...
168 kg Payload
Heavy-Lift Cargo UAVsH300-200 - 200kg Class Heavy-Load Transport UAV
H300 is a 200kg-class heavy-load transport UAV...
200 kg Payload
Heavy-Lift Cargo UAVsH300-120 - 120kg Class Heavy-Load Transport UAV
H300 is a heavy-lift transport UAV built for l...
120 kg Payload
FPV DronesCustom FPV Drone Series
The Custom FPV Drone Series is designed for cu...
Heavy-Lift Cargo UAVsHY6970 Heavy-Payload VTOL Fixed-Wing UAV
A heavy-payload VTOL fixed-wing UAV with 50 kg...
50 kg Payload
Heavy-Lift Cargo UAVsHY3500 100kg Payload Heavy-Lift Octocopter UAV
A 100 kg payload heavy-lift UAV designed for e...
100 kg Payload
Industrial Inspection UAVsHY1200 Compact Quadcopter Payload Delivery Drone
The HY1200 is a compact quadcopter payload del...
≥10 kg Payload
Explore Related Categories
Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.
Heavy-Lift Cargo UAVs
Heavy-lift cargo UAVs for industrial logistics, remote delivery, and mission-based aerial transport across construction, energy, emergency, and field operations.
FPV Drones
FPV drones for training, testing, custom integration, and configurable first-person flight projects with low-latency control and flexible setup options.
Industrial Inspection UAVs
Industrial inspection UAVs for safer asset monitoring, faster data capture, and lower inspection downtime.
Defense & Tactical UAVs
Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.
Agriculture UAV Drones
Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.
Frequently Asked Questions
What missions is the HY6520 Hybrid VTOL Fixed-Wing UAV suitable for?
The HY6520 is designed for long-endurance professional missions that require VTOL deployment, efficient fixed-wing cruising, and heavy payload support. Typical applications include high-altitude logistics, complex-terrain transport, emergency rescue, border and maritime patrol, forest fire monitoring, geological survey, communication relay, and remote field inspection. With a 40 kg maximum payload, up to 600 min endurance, and 5500 m maximum cruising altitude, it fits demanding B2B operations.
What is the maximum payload capacity of the HY6520?
The HY6520 supports a maximum payload capacity of 40 kg. It can be configured for logistics modules, communication relay equipment, monitoring sensors, inspection systems, mapping payloads, and project-specific mission equipment. For accurate integration planning, please provide payload weight, dimensions, power demand, mounting method, and intended mission profile before requesting a quotation.
How long can the HY6520 stay in the air?
The HY6520 supports up to 600 min maximum endurance under suitable configuration and operating conditions. With a 30 kg payload, endurance is approximately 360 min, depending on fuel load, payload type, altitude, weather, cruise profile, and safety reserve. For long-range or high-altitude projects, mission route and payload setup should be confirmed before final configuration.
Why choose a hybrid VTOL fixed-wing UAV instead of a multirotor drone?
A hybrid VTOL fixed-wing platform combines multirotor-style vertical takeoff and landing with fixed-wing cruise efficiency. Compared with standard multirotor drones, the HY6520 provides longer endurance, stronger payload capability, and better efficiency for medium- to long-range missions. Compared with conventional fixed-wing aircraft, it does not require a runway, making it practical for mountains, forests, islands, coastlines, disaster zones, and remote sites.
Can the HY6520 operate in high-altitude or complex terrain environments?
Yes. The HY6520 supports a maximum takeoff altitude of 3500 m and a maximum cruising altitude of 5500 m. It also provides Level 7 wind resistance and a working temperature range from -10°C to 60°C, supporting stable operation in plateau areas, mountainous regions, forests, coastlines, and remote industrial environments.
What is the control radius of the HY6520?
The HY6520 supports a customizable control radius of 50-100 km. Actual link performance depends on antenna configuration, terrain, altitude, electromagnetic environment, and ground station setup. For long-distance patrol or relay missions, please provide your required operating distance and communication environment for proper data-link planning.
Can the HY6520 be customized for different payloads and applications?
Yes. The HY6520 supports project-based customization for payload interfaces, cargo modules, sensor integration, communication relay systems, ground control station setup, data-link configuration, onboard power interfaces, spare parts packages, documentation, and training support. Final configuration is determined by mission requirements, destination, quantity, and compliance constraints.
What information should I provide before requesting a quotation?
To receive an accurate quotation and configuration proposal, please provide: required quantity; destination country or region; intended application; payload type, size, weight, and power demand; required endurance and mission distance; operating altitude and terrain conditions; control radius and communication requirements; ground control station needs; spare parts and training expectations; customization scope; and expected delivery schedule.
Do you provide quality control, technical support, and spare parts?
Yes. HY6520 projects can include pre-delivery checks such as airframe inspection, VTOL rotor testing, fixed-wing flight system verification, hybrid power and fuel system checks, communication link validation, payload interface inspection, and functional testing. We also provide operation documentation, maintenance guidance, remote technical support, spare parts recommendations, and training options based on project requirements.
What trade terms do you support for international orders?
For international B2B orders, we currently support FOB and CIF terms only. FOB means the buyer arranges international freight after delivery to the agreed port of shipment, while CIF includes freight and insurance to the agreed destination port. At this stage, DDP, DAP, EXW, and door-to-door delivery terms are not supported.
