HY1200 Compact Quadcopter Payload Delivery Drone
The HY1200 is a compact quadcopter payload delivery drone designed for emergency material delivery, public safety support, rescue operations, mountain-area transport and industrial field missions. With a foldable frame, ≥10 kg payload capacity, ≥4500 m altitude capability, 4K visible-light gimbal option and 3-5 km communication distance, it provides a flexible UAV platform for professional B2B applications.
Key Features
- Compact foldable quadcopter platform for rapid deployment in field operations
- ≥10 kg payload capacity for emergency material delivery and industrial transport
- ≥60 min endurance under empty-load conditions for extended mission coverage
- Maximum flight speed of 20 m/s and cruise speed of 10 m/s
- Communication range of 3-5 km for mission control in varied environments
- ≥4500 m altitude capability for mountain-area and high-altitude operations
- Optional payload modules including 4K visible-light gimbal and 4-round 60 mm mortar launcher
- Designed for emergency response, public safety support, rescue logistics and industrial field missions
Product Overview

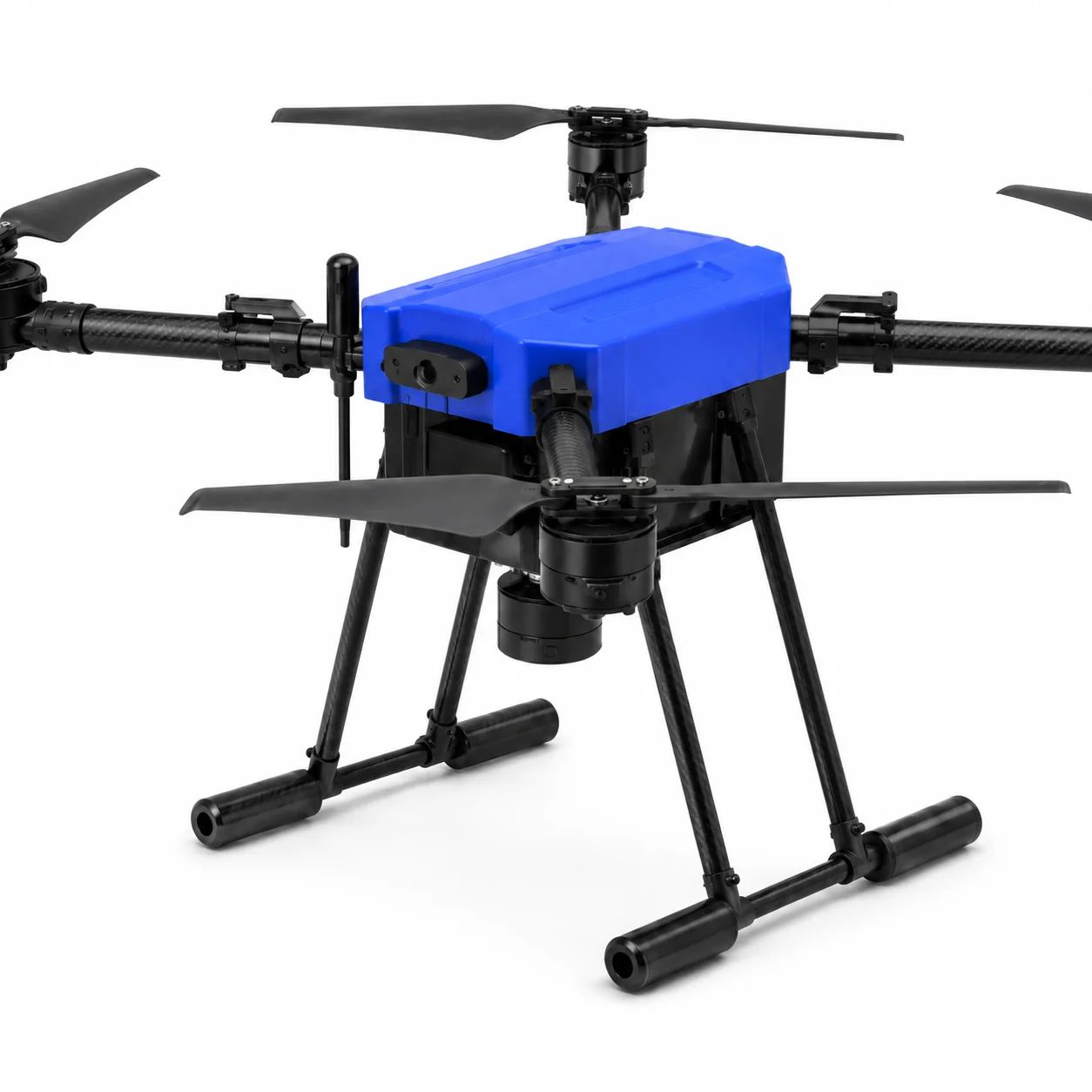

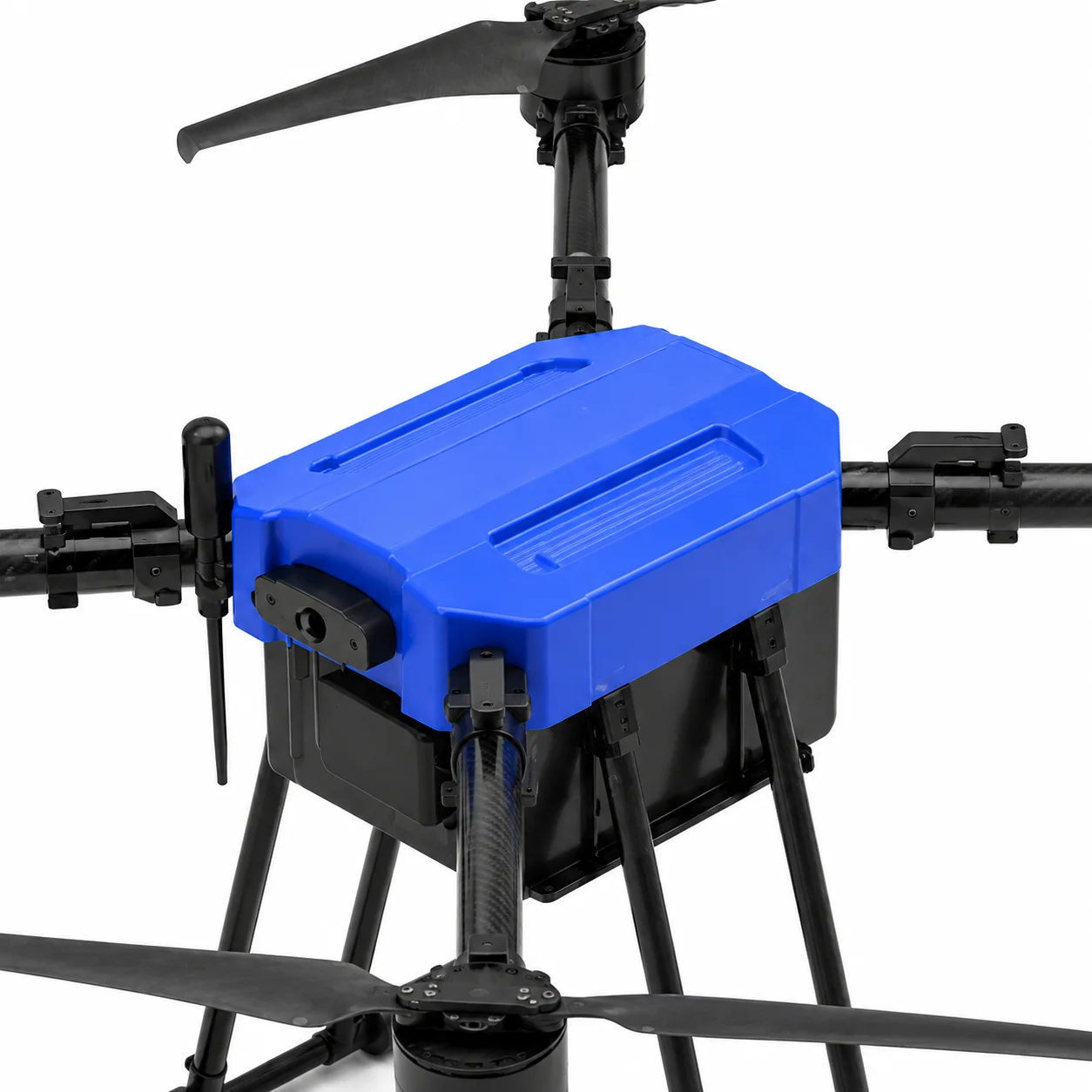

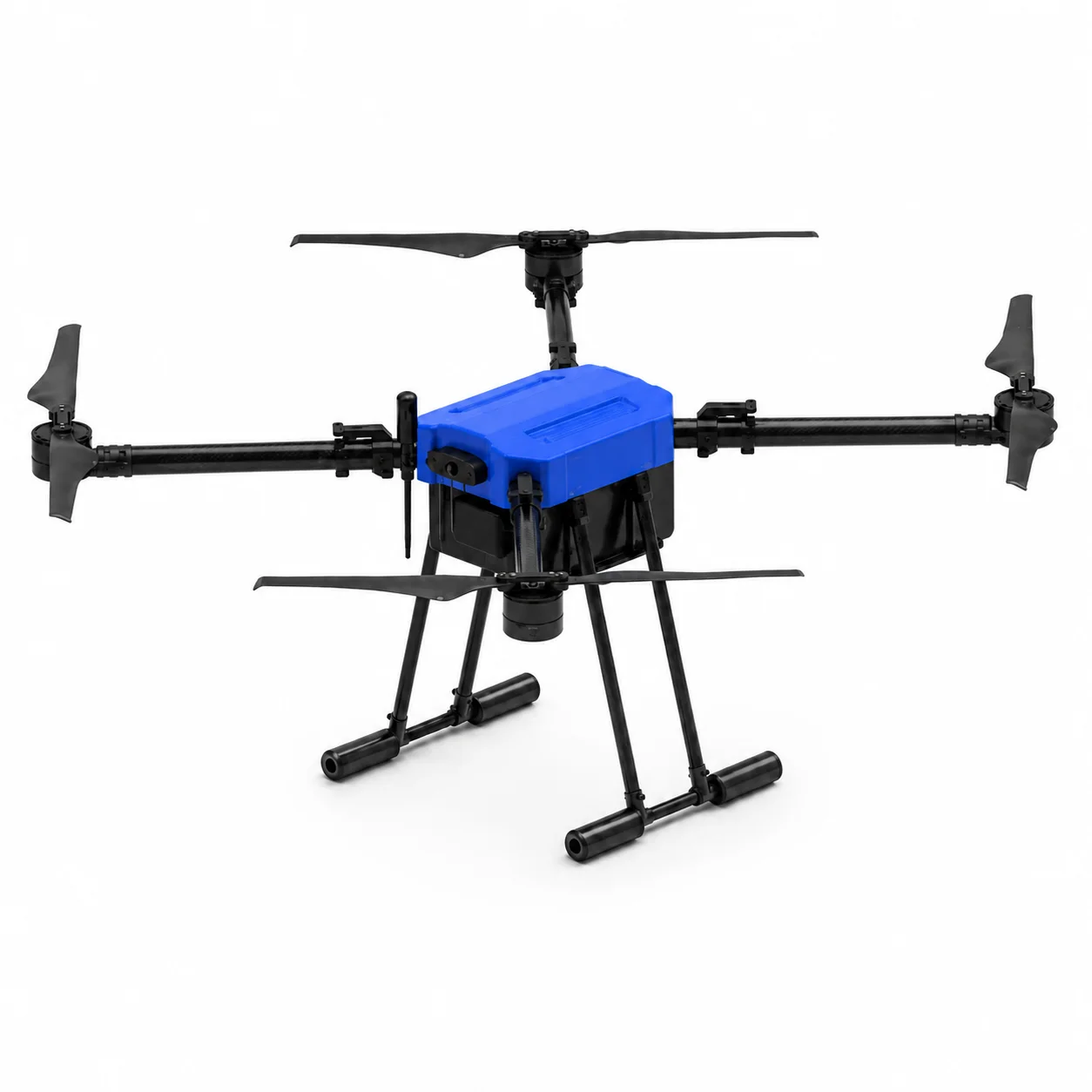

The HY1200 Compact Quadcopter Payload Delivery Drone is a four-rotor UAV platform developed for professional field operation scenarios where portability, payload capacity and fast deployment are important. With a 1200 mm wheelbase, compact foldable airframe and ≥10 kg payload capacity, the HY1200 is suitable for emergency supply delivery, public safety operations, rescue support, mountain-area logistics, industrial transport and high-altitude field missions. The platform supports a maximum flight speed of 20 m/s, cruise speed of 10 m/s, communication distance of 3-5 km and altitude capability of ≥4500 m. Under empty-load conditions, the UAV can achieve ≥60 min endurance. It can also be equipped with a single-sensor 4K visible-light gimbal for mission observation, field monitoring and operation support. For B2B buyers, payload modules, delivery interfaces, ground control configuration and support accessories can be customized according to project requirements.
Technical Specifications
Core Specifications
Model
HY1200
UAV Type
Compact Quadcopter Payload Delivery Drone
Wheelbase
1200 mm
Dimensions (Expanded)
1380*1380*650 mm
Dimensions (Folded)
600*600*650 mm
Empty Weight
10 kg (no battery)
Maximum Payload Capacity
≥10 kg
Endurance
≥60 min (no payload)
Maximum Flight Speed
20 m/s
Cruise Speed
10 m/s
Maximum Altitude
≥4500 m
Communication Range
3-5 km

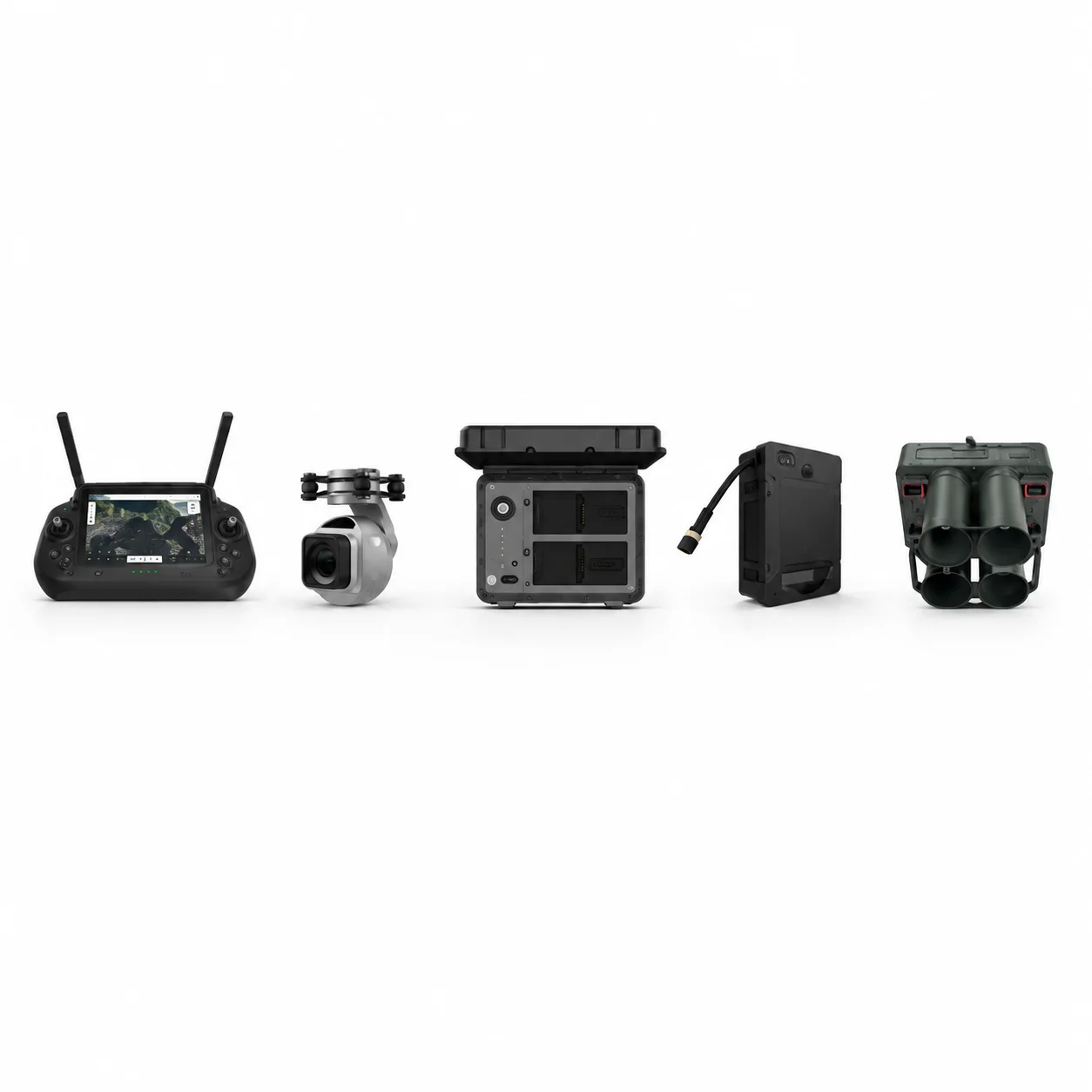

Payload Options
4K visible-light gimbal; 4-round 60 mm mortar launcher
Wind Resistance
≥Level 6
Related Products
Explore related products in the Industrial Inspection UAVs range to compare deployment form factors, response methods, and system integration options for similar project requirements.
Industrial Inspection UAVs
Heavy-Lift Cargo UAVs
Industrial Inspection UAVs6C-4+1 Hybrid VTOL Fixed-Wing UAV
The 6C-4+1 Hybrid VTOL Fixed-Wing UAV is engin...
10 kg Payload
Heavy-Lift Cargo UAVsIY-240 Heavy-Lift Multirotor Cargo UAV
The IY-240 is a heavy-lift multirotor cargo UA...
168 kg Payload
Heavy-Lift Cargo UAVsHY3500 100kg Payload Heavy-Lift Octocopter UAV
A 100 kg payload heavy-lift UAV designed for e...
100 kg Payload
Heavy-Lift Cargo UAVsHY6970 Heavy-Payload VTOL Fixed-Wing UAV
A heavy-payload VTOL fixed-wing UAV with 50 kg...
50 kg Payload
Heavy-Lift Cargo UAVsH300-120 - 120kg Class Heavy-Load Transport UAV
H300 is a heavy-lift transport UAV built for l...
120 kg Payload
Industrial Inspection UAVsHY3300 Long-Endurance VTOL Fixed-Wing UAV
The HY3300 is a long-endurance VTOL fixed-wing...
3-6 kg Payload
Heavy-Lift Cargo UAVsHY6520 Heavy-Payload Long-Endurance Hybrid VTOL Fixed-Wing UAV
The HY6520 is a heavy-payload hybrid VTOL fixe...
40 kg Payload
Industrial Inspection UAVs6A-4+1 Hybrid VTOL Fixed-Wing UAV
The 6A-4+1 Hybrid VTOL Fixed-Wing UAV is a ver...
1-2 kg Payload
Explore Related Categories
Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.
Industrial Inspection UAVs
Industrial inspection UAVs for safer asset monitoring, faster data capture, and lower inspection downtime.
Heavy-Lift Cargo UAVs
Heavy-lift cargo UAVs for industrial logistics, remote delivery, and mission-based aerial transport across construction, energy, emergency, and field operations.
Defense & Tactical UAVs
Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.
Agriculture UAV Drones
Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.
Counter-Drone Systems
Counter-drone systems for airports, critical infrastructure, industrial facilities, and public security projects, covering detection, tracking, identification, and authorized response workflows.
Frequently Asked Questions
What missions is the HY1200 Compact Quadcopter Payload Delivery Drone suitable for?
The HY1200 is designed for emergency material delivery, public safety support, rescue operations, mountain-area transport and industrial field missions. Its compact foldable structure supports rapid deployment in locations where ground access is difficult or time-sensitive.
What payload can the HY1200 carry?
The HY1200 supports a maximum payload capacity of ≥10 kg. Actual payload performance can vary based on altitude, temperature, wind conditions, route profile and selected mission accessories.
How long can the HY1200 fly?
Under empty-load conditions, the HY1200 supports endurance of ≥60 min. Endurance decreases when payload weight increases and should be evaluated together with mission distance and safety reserve.
What are the speed and altitude capabilities of the HY1200?
The HY1200 supports a maximum flight speed of 20 m/s, cruise speed of 10 m/s and altitude capability of ≥4500 m. This makes it suitable for both standard field operations and mountain-area deployment.
What communication range does the HY1200 support?
The platform supports a communication range of 3-5 km, depending on terrain, antenna setup, electromagnetic environment and regulatory constraints in the operating area.
What payload options are available?
The HY1200 can be configured with mission payload options including a 4K visible-light gimbal and a 4-round 60 mm mortar launcher. Payload availability may vary by destination and applicable regulations.
Can the HY1200 be customized for project requirements?
Yes. The HY1200 supports project-based customization for payload modules, delivery interfaces, control configuration and support accessories. Buyers should provide mission details before quotation for accurate configuration.
