PA450 Four-Side Phased Array Radar

The PA450 Four-Side Phased Array Radar is designed for authorized low-altitude surveillance and target tracking applications. It can support TAS search and tracking of UAVs, birds, and other moving targets, helping users monitor low-altitude airspace in professional security environments.

PA450 four-side phased array radar main product image

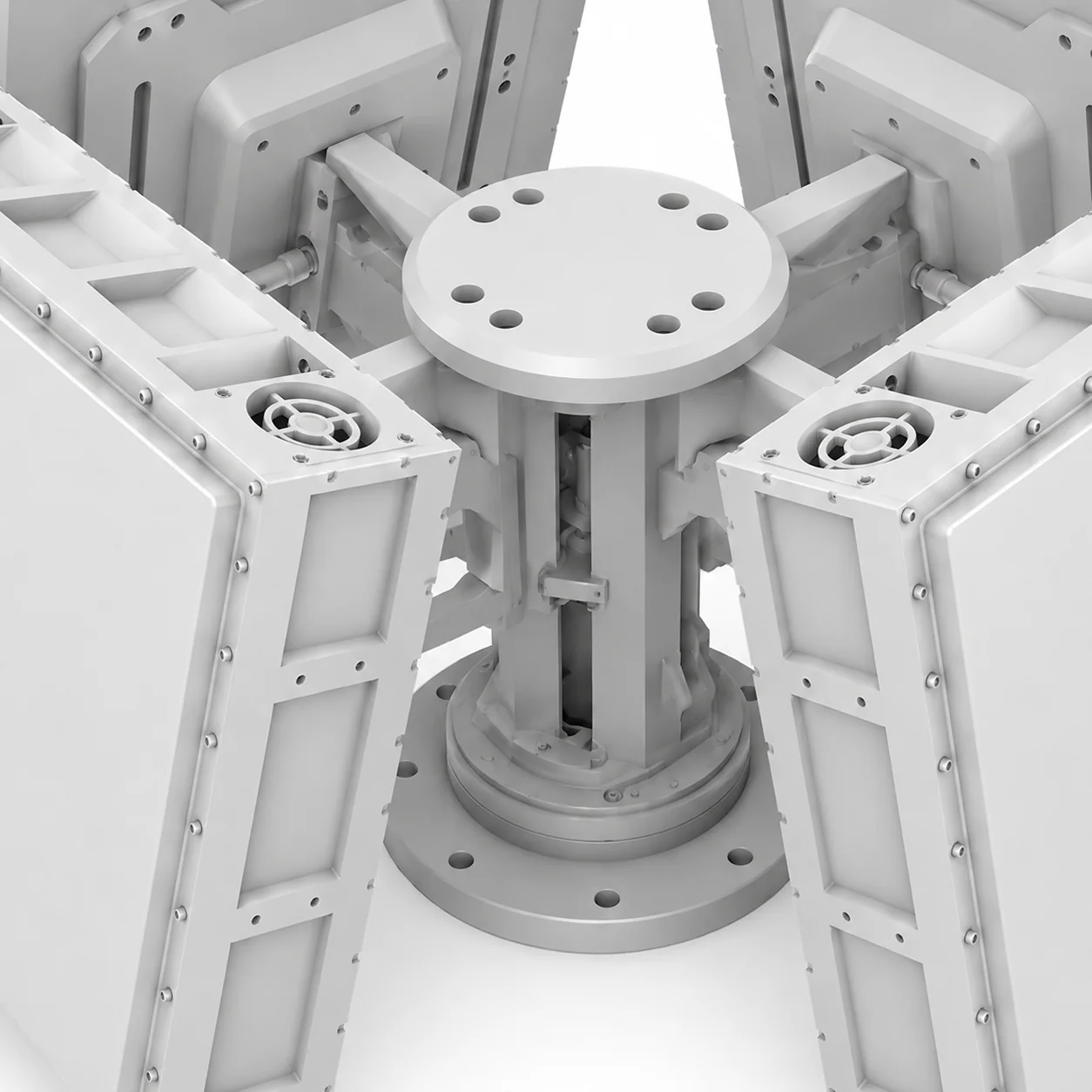

PA450 four-side phased array radar central hub detail

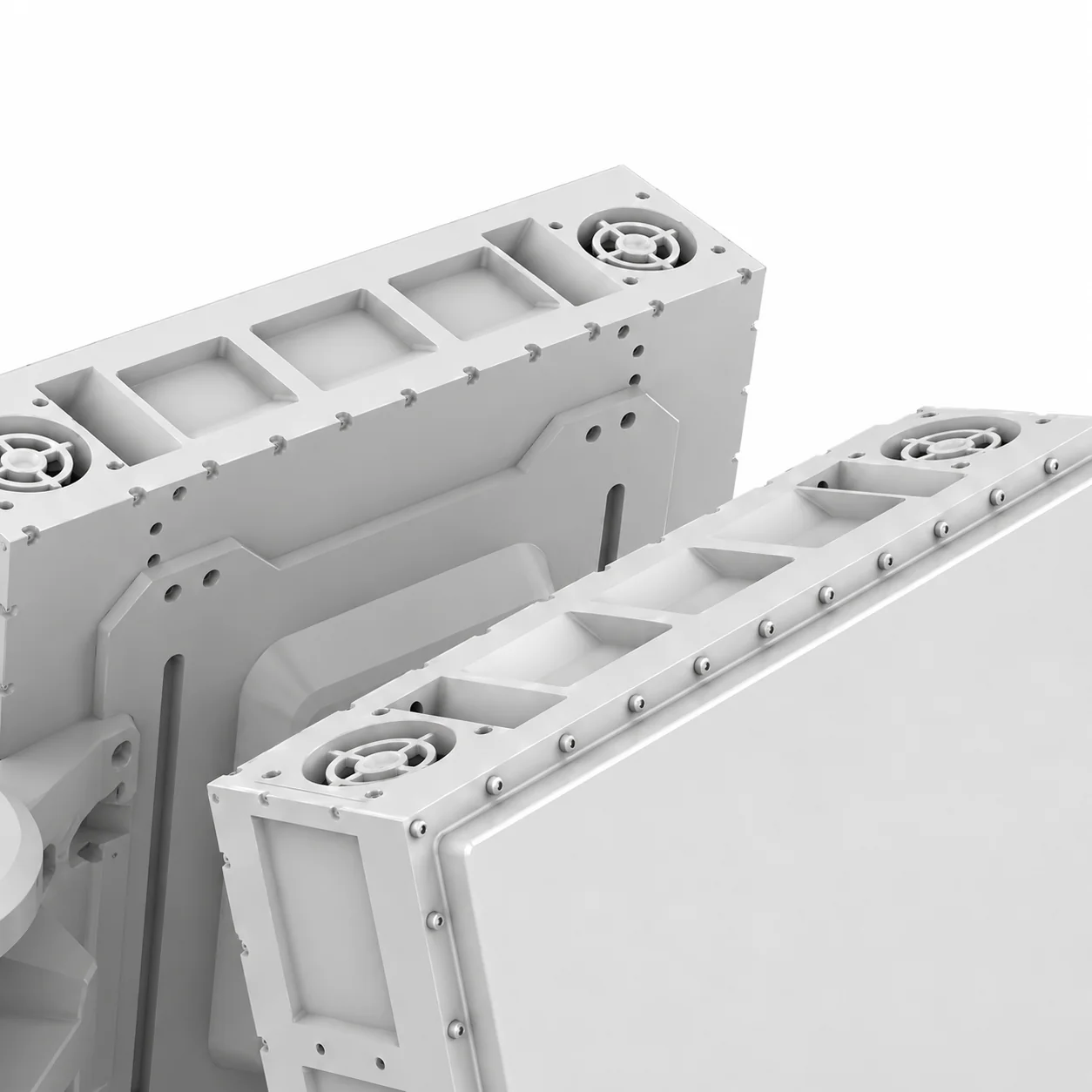

PA450 four-side phased array radar panel structure detail

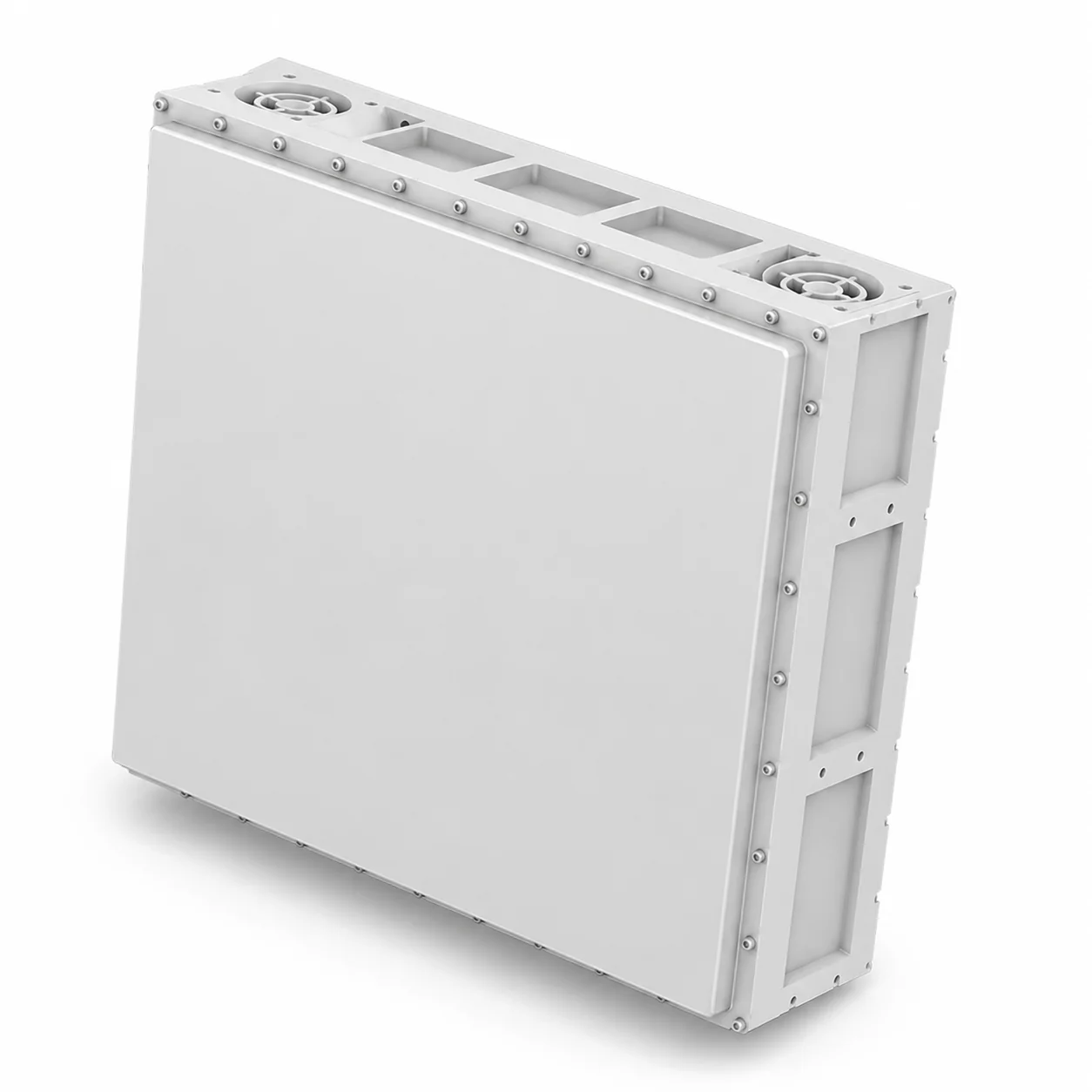

PA450 four-side phased array radar single panel detail

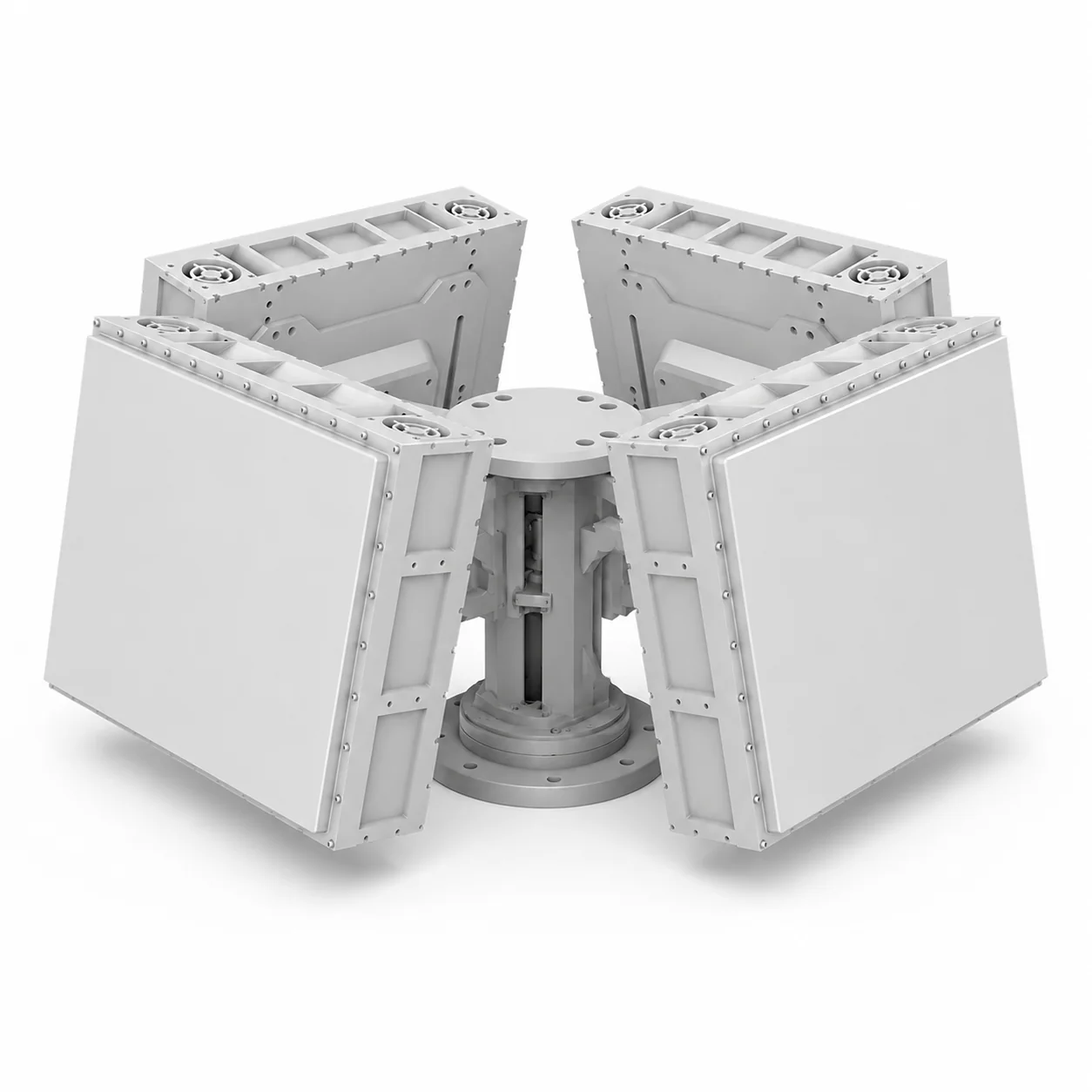

PA450 four-side phased array radar three quarter view

Key Features

  • Supports TAS search and high-accuracy target measurement.
  • Enables continuous and stable tracking of UAVs, birds, and other low-altitude targets.
  • Supports real-time multi-target tracking and synchronous full-airspace search.
  • Ku-band operation for professional low-altitude surveillance applications.
  • Four-side phased array structure supports wide-area target monitoring.
  • High stability and reliable operation for long-duration security projects.
  • Highly integrated and portable design for flexible deployment.
  • Suitable for airports, ports, oil fields, nuclear power plants, and other important security sites.

Product Overview

With real-time multi-target tracking and synchronous full-airspace search capability, the PA450 is suitable for projects that require continuous target monitoring, high measurement accuracy, and stable radar performance. Its four-side phased array design supports wide-area observation, making it applicable to important locations where reliable low-altitude detection is required. The PA450 can be used in airport low-altitude security, port surveillance, oil field protection, nuclear power plant security, and other critical site monitoring projects. Its highly integrated and portable structure helps simplify deployment while maintaining stable operation for authorized security and surveillance applications.

Request a Quote

Related Products

Explore related products in the Counter-Drone Systems range to compare deployment form factors, response methods, and system integration options for similar project requirements.

Explore Related Categories

Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.

Counter-Drone Systems

Counter-drone systems for airports, critical infrastructure, industrial facilities, and public security projects, covering detection, tracking, identification, and authorized response workflows.

FPV Drones

FPV drones for training, testing, custom integration, and configurable first-person flight projects with low-latency control and flexible setup options.

Defense & Tactical UAVs

Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.

Agriculture UAV Drones

Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.

Firefighting Drones

Firefighting drones for thermal monitoring, hotspot detection, scene visibility, and emergency-response support across wildfire, urban, and industrial fire operations.

Frequently Asked Questions

What is the PA450 Four-Side Phased Array Radar used for?

The PA450 is designed for authorized low-altitude surveillance and target tracking applications. It supports TAS search and tracking of UAVs, birds, and other low-altitude targets, and is suitable for airports, ports, oil fields, nuclear power plants, and other important security sites.

What types of targets can the PA450 detect and track?

The PA450 can be used for UAVs, birds, and other low-altitude moving targets. It supports real-time multi-target tracking and synchronous full-airspace search, making it suitable for projects that require continuous low-altitude airspace monitoring.

What is the detection distance of the PA450?

According to the provided specifications, the PA450 supports a search distance of ≥5.0 km for RCS = 0.01 m² targets and ≥12 km for medium-large UAV targets. For tracking, it supports ≥6.0 km for RCS = 0.01 m² targets and ≥15 km for medium-large UAV targets. Actual performance may vary depending on target type, installation height, environment, weather, and site conditions.

What frequency band does the PA450 use?

The PA450 operates in the Ku band. It uses a two-dimensional phased array three-coordinate technical system, supporting high-accuracy target measurement, stable tracking, and professional low-altitude surveillance applications.

Is the PA450 suitable for long-term security deployment?

Yes. The PA450 is designed with high stability and reliable operation for professional security projects. Its four-side phased array structure supports wide-area monitoring, while the highly integrated design helps simplify deployment and system integration.

What shipping terms do you support?

We currently support FOB and CIF terms only. We do not support DDP, DAP, EXW, or door-to-door delivery. Customers are responsible for customs clearance, import permits, taxes, duties, and compliance requirements in their own country or region. Please confirm all applicable import, radar, radio-frequency, aviation, and local regulatory requirements before placing an order.
