BJ012 Backpack-Mounted Counter-Drone Jammer

The BJ012 is a backpack-mounted counter-UAS jammer designed for authorized mobile field operations. With configurable multi-band coverage, 360° high-gain omnidirectional antennas, replaceable battery design, and battery level display, it supports flexible low-altitude drone response for public safety, security patrols, temporary site protection, and emergency field deployment.

BJ012 backpack counter-drone jammer main product image

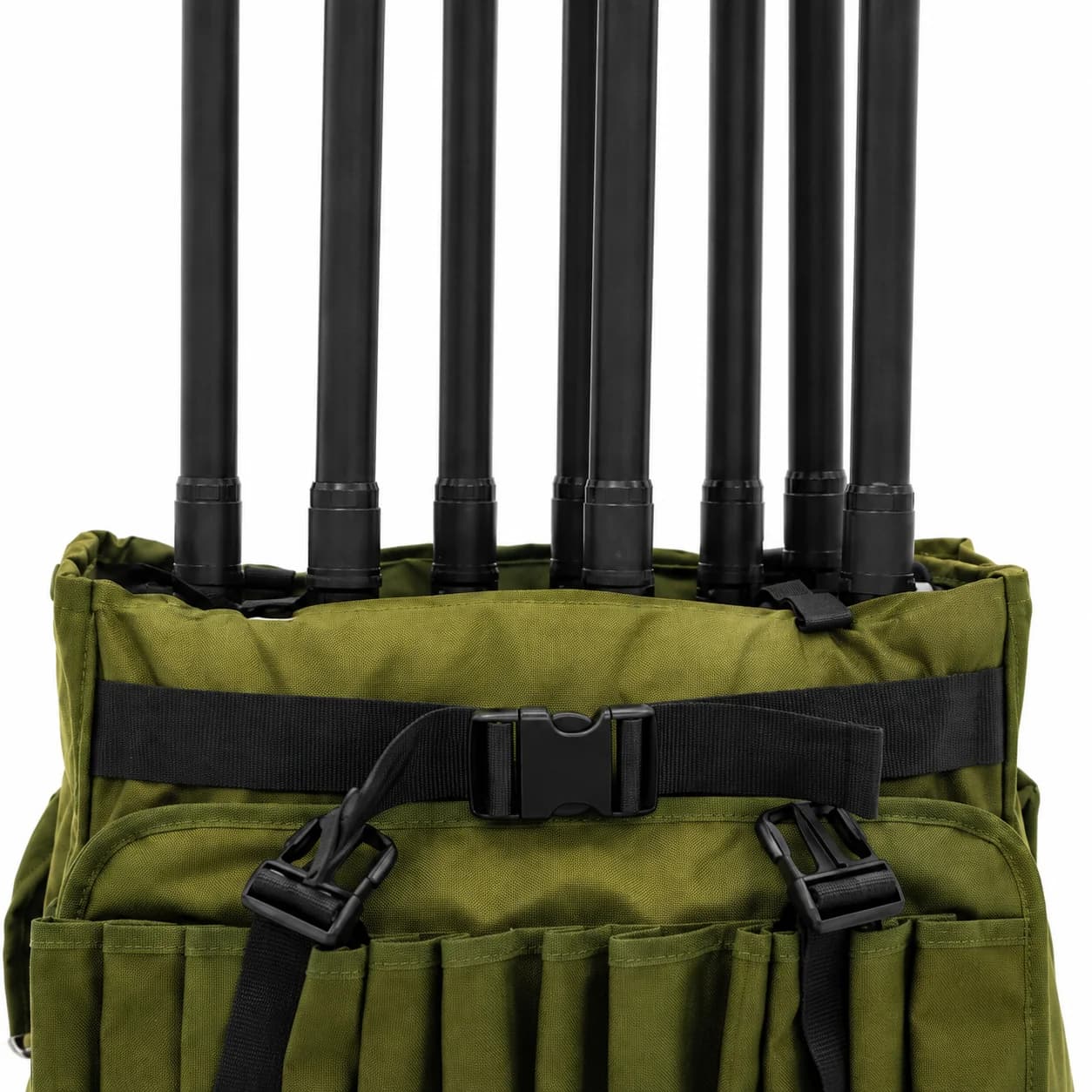

BJ012 backpack counter-drone jammer antenna top detail

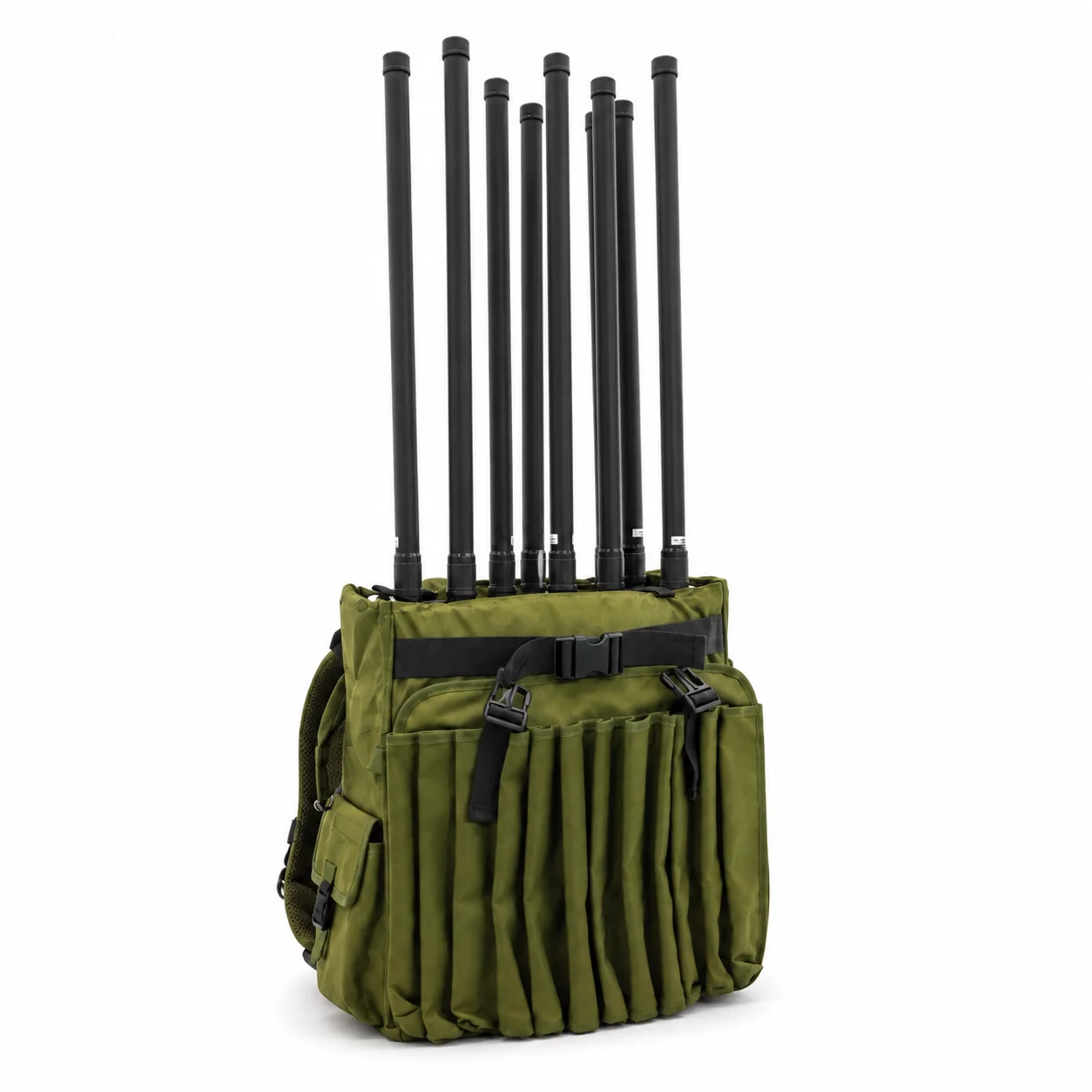

BJ012 backpack counter-drone jammer front angle view

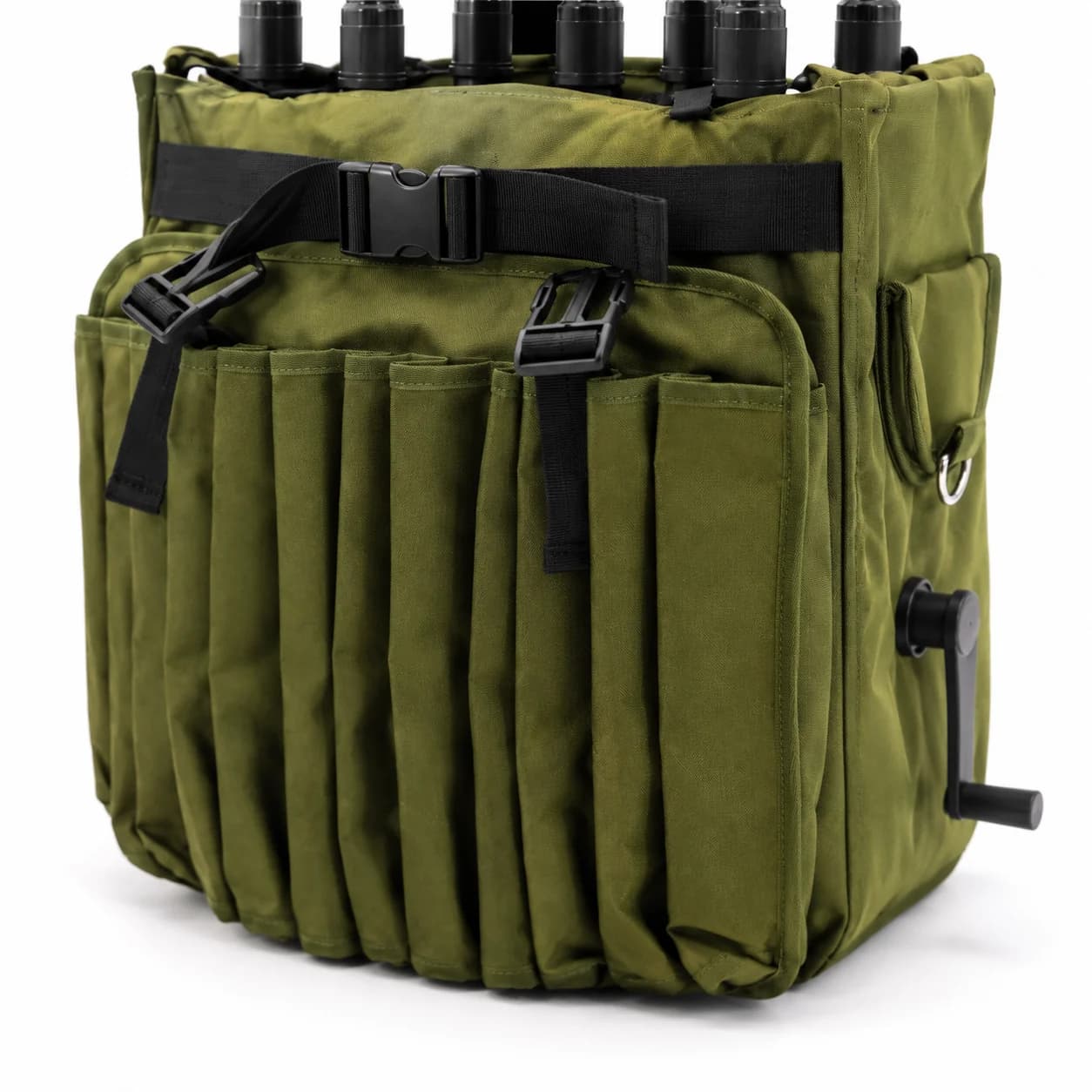

BJ012 backpack counter-drone jammer front pocket side detail

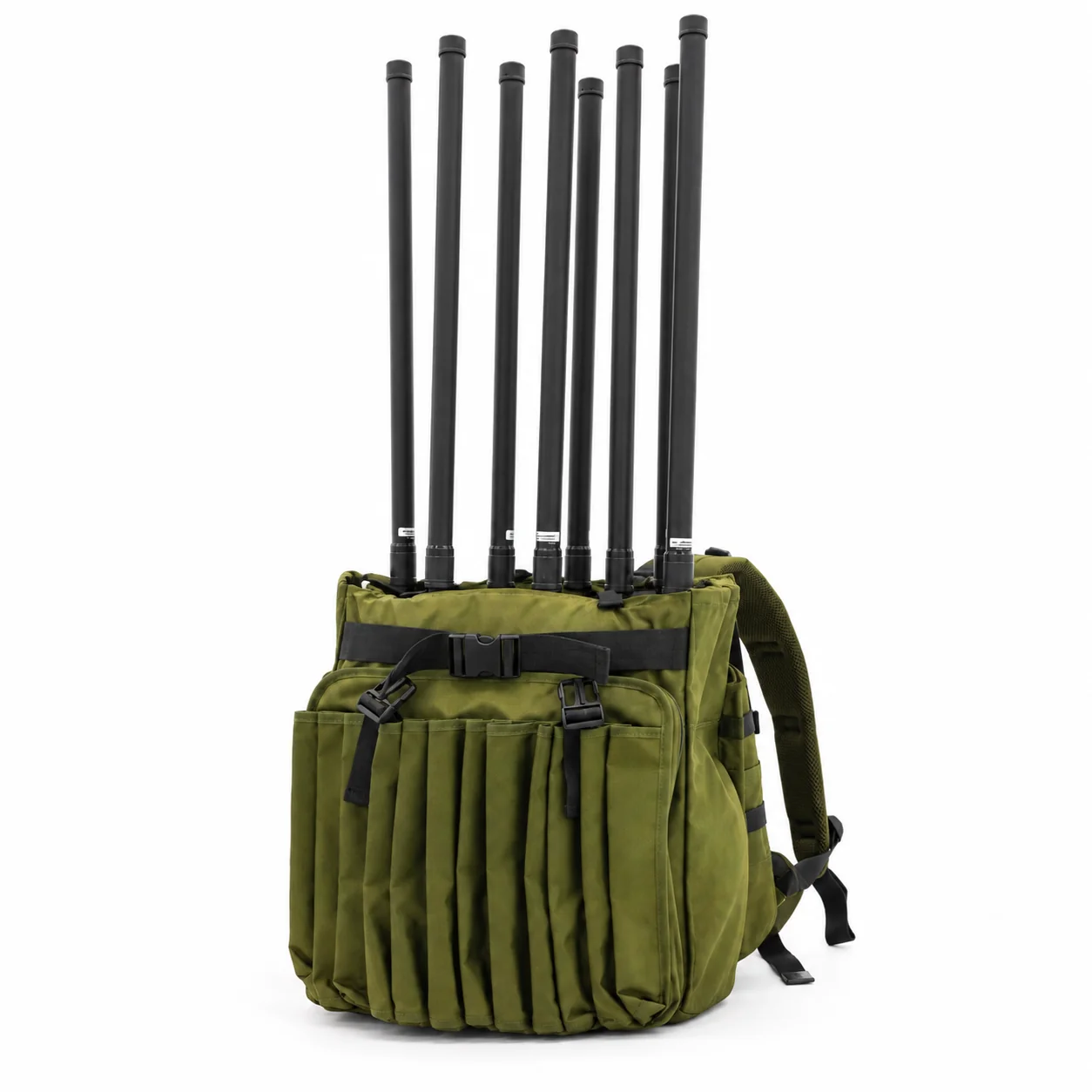

BJ012 backpack counter-drone jammer three-quarter view

Key Features

  • Countermeasure signals cover the frequency bands used by mainstream drones.
  • High-gain 360° omnidirectional antennas support wide-area counter-UAS signal coverage.
  • Backpack-mounted design allows easier carrying and flexible field deployment.
  • Built-in battery supports mobile operation without fixed power supply.
  • Battery level indicator helps operators monitor power status during field use.
  • Designed to support authorized drone detection response tasks, including interception, deterrence, return-to-home disruption, and controlled landing response where legally permitted.

Product Overview

The BJ012 Backpack-Mounted Counter-Drone Jammer is a portable counter-UAS device designed for authorized field operations. Its backpack-style structure allows security personnel to carry the system for extended periods during patrols, emergency response, temporary site protection, and mobile low-altitude security missions. Equipped with a built-in battery, battery level indicator, and high-gain 360° omnidirectional antennas, the BJ012 supports flexible deployment in outdoor and field environments. The system uses wide-band signal coverage to suppress the main communication, image transmission, and positioning frequency bands used by mainstream drones, helping authorized users respond to unauthorized drone activity. With configurable jamming bands, 50-100 W single-channel output power, and a 500-2000 m effective response range, the BJ012 is suitable for public safety operations, border patrols, event security, industrial facility protection, and temporary restricted-area defense. Use, import, export, and operation must comply with applicable radio-frequency, aviation, public safety, and local regulatory requirements.

Request a Quote

Technical Specifications

Technical Specifications
Model
BJ012
Product Type
Backpack-Mounted Counter-Drone Jammer
Jamming Bands
300 MHz, 433 MHz, 800 MHz, 900 MHz, 1.0 GHz, 1.2 GHz, 1.4 GHz, 1.5 GHz, 2.4 GHz, 5.2 GHz, 5.6 GHz, 5.8 GHz
Single-Channel Output Power
50-100 W
Effective Range
500-2000 m
Weight
23.5 kg
Dimensions
380 × 165 × 425 mm
Endurance
50 mins
Antenna
High-gain 360° omnidirectional antenna
Display Function
Battery power display
Battery
Replaceable battery
Operation Support
Equipped with handle for easy operation

Related Products

Explore related products in the Counter-Drone Systems range to compare deployment form factors, response methods, and system integration options for similar project requirements.

Explore Related Categories

Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.

Counter-Drone Systems

Counter-drone systems for airports, critical infrastructure, industrial facilities, and public security projects, covering detection, tracking, identification, and authorized response workflows.

Defense & Tactical UAVs

Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.

Agriculture UAV Drones

Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.

Firefighting Drones

Firefighting drones for thermal monitoring, hotspot detection, scene visibility, and emergency-response support across wildfire, urban, and industrial fire operations.

FPV Drones

FPV drones for training, testing, custom integration, and configurable first-person flight projects with low-latency control and flexible setup options.

Frequently Asked Questions

What is the BJ012 Backpack-Mounted Counter-Drone Jammer used for?

The BJ012 is designed for authorized mobile counter-UAS operations. It is suitable for field patrols, public safety operations, emergency response, border monitoring, temporary site protection, and other approved low-altitude drone security scenarios where flexible deployment is required.

Is the BJ012 easy to carry and deploy?

Yes. The BJ012 uses a backpack-mounted design, making it easier for field teams to carry, reposition, and deploy during mobile operations. Compared with fixed-site systems, it is better suited for patrol-based missions, temporary protection tasks, and rapid field response.

What frequency bands can the BJ012 support?

The BJ012 supports customizable frequency bands, including 300 MHz, 433 MHz, 800 MHz, 900 MHz, 1.0 GHz, 1.2 GHz, 1.4 GHz, 1.5 GHz, 2.4 GHz, 5.2 GHz, 5.6 GHz, and 5.8 GHz. The final band configuration can be adjusted according to project requirements and local compliance rules.

What is the effective working range of the BJ012?

The effective working range is approximately 500-2000 m, depending on frequency configuration, output power, antenna setup, terrain, operating environment, and target drone type.

Does the BJ012 have a replaceable battery?

Yes. The BJ012 is equipped with a replaceable battery and battery level display. The standard endurance is approximately 50 minutes, depending on working mode, selected frequency bands, output power, and environmental conditions.

Can the BJ012 be customized for different projects?

Yes. The jamming bands, output power configuration, antenna setup, and deployment configuration can be customized according to the customer's operating environment, target frequency bands, and authorized project requirements.

What shipping terms do you support?

We currently support FOB and CIF terms only. We do not support DDP, DAP, EXW, or door-to-door delivery. Customers are responsible for customs clearance, import permits, taxes, duties, and regulatory compliance in their own country or region. Please confirm local import and radio-frequency regulations before placing an order.
