Heavy-payload agricultural spraying drone operating over farmland
Products/Agriculture UAV Drones

100L Agricultural Spraying Drone

The 100L Agricultural Spraying Drone is built for large-scale crop protection, pesticide spraying, fertilizer application, and precision agriculture service projects where throughput and consistency are critical.

100L agricultural spraying drone main product image

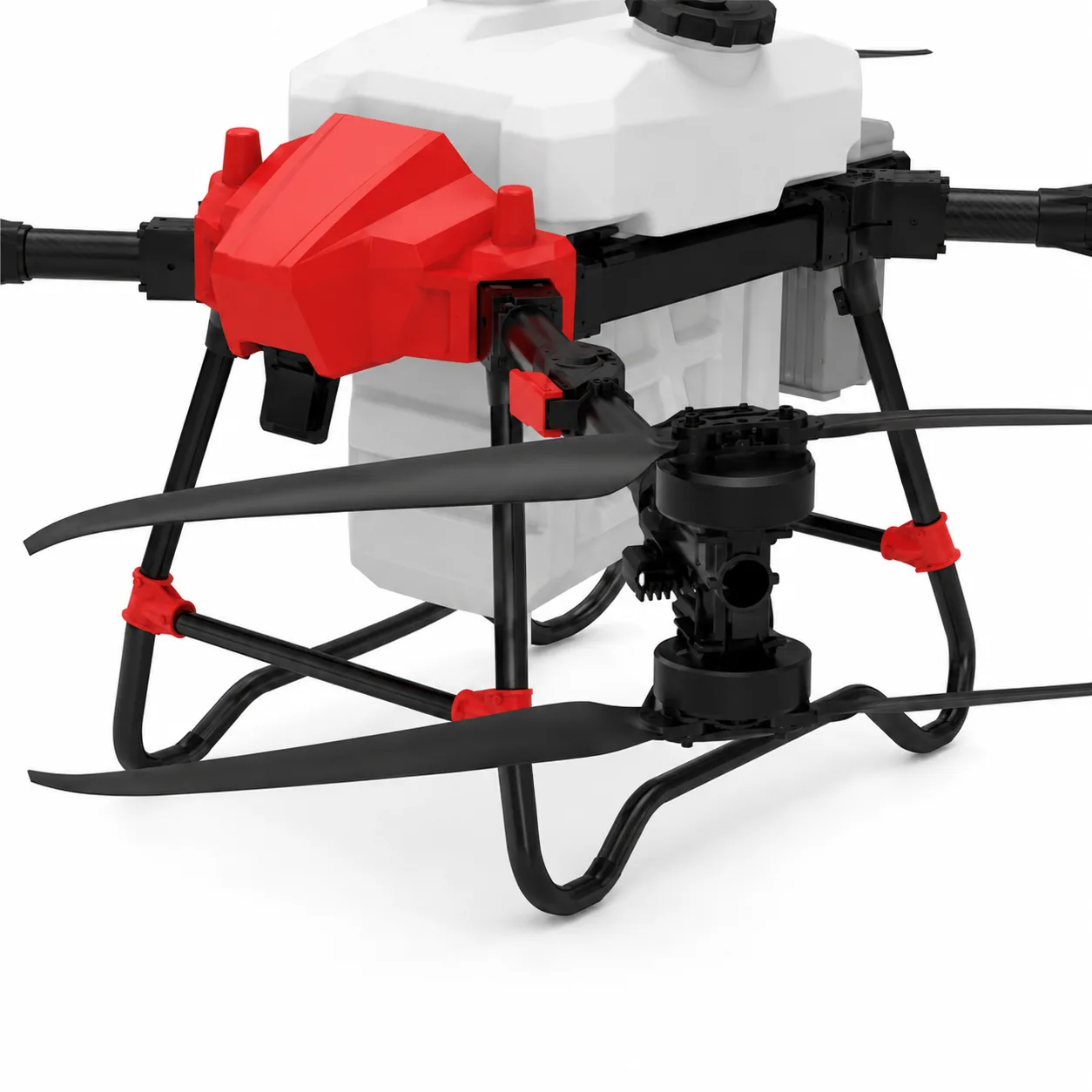

100L agricultural drone frame and tank detail

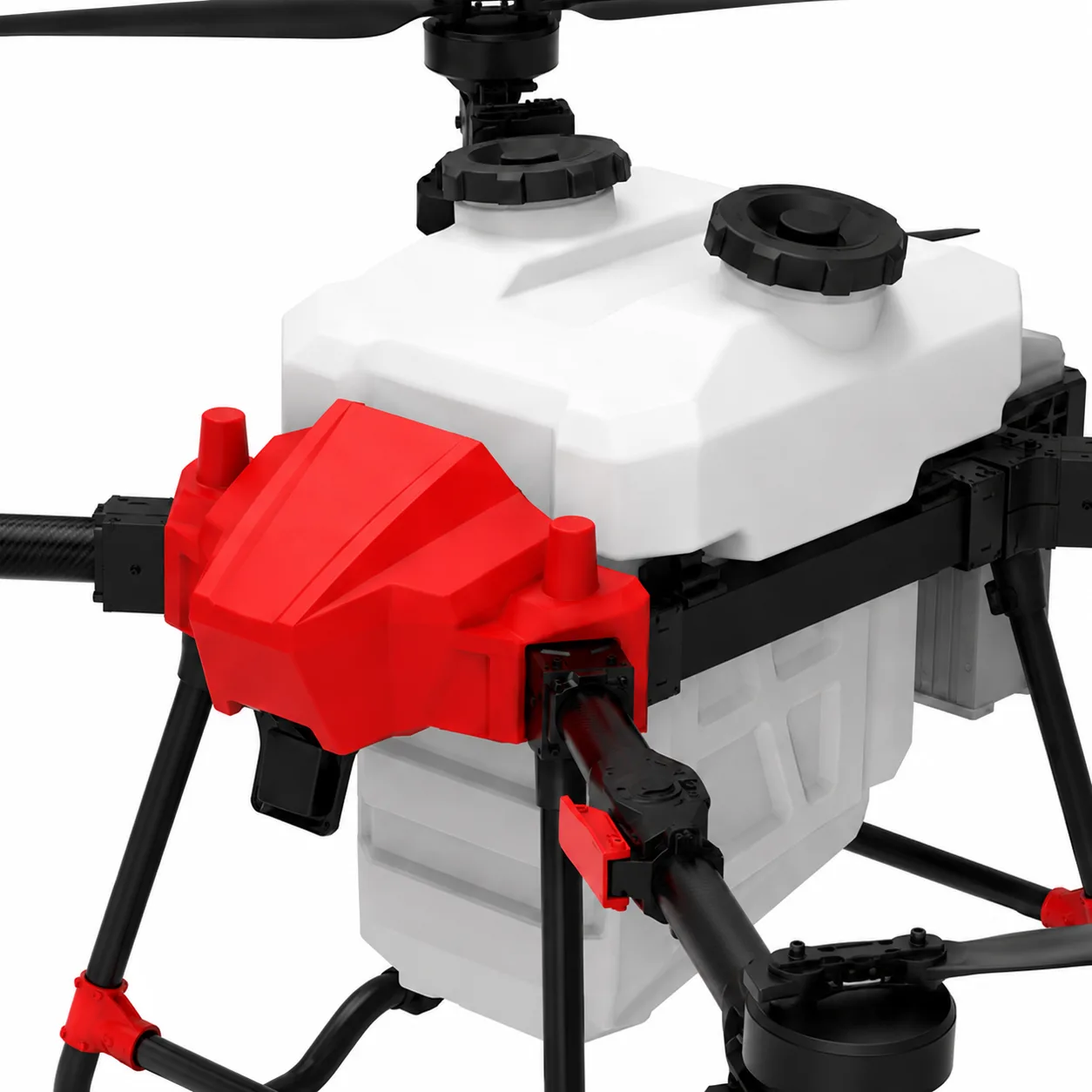

100L agricultural drone front view detail

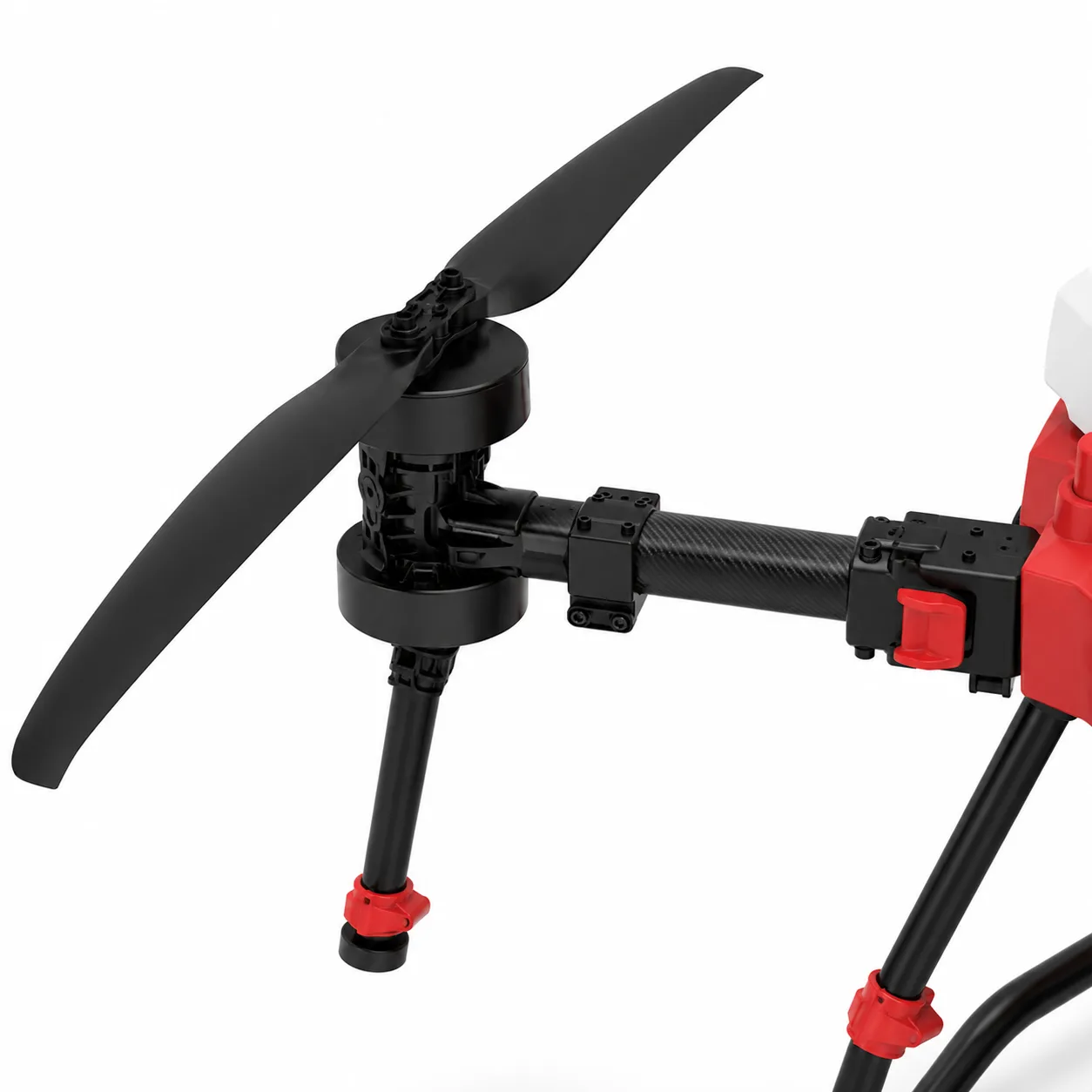

100L agricultural drone rotor arm detail

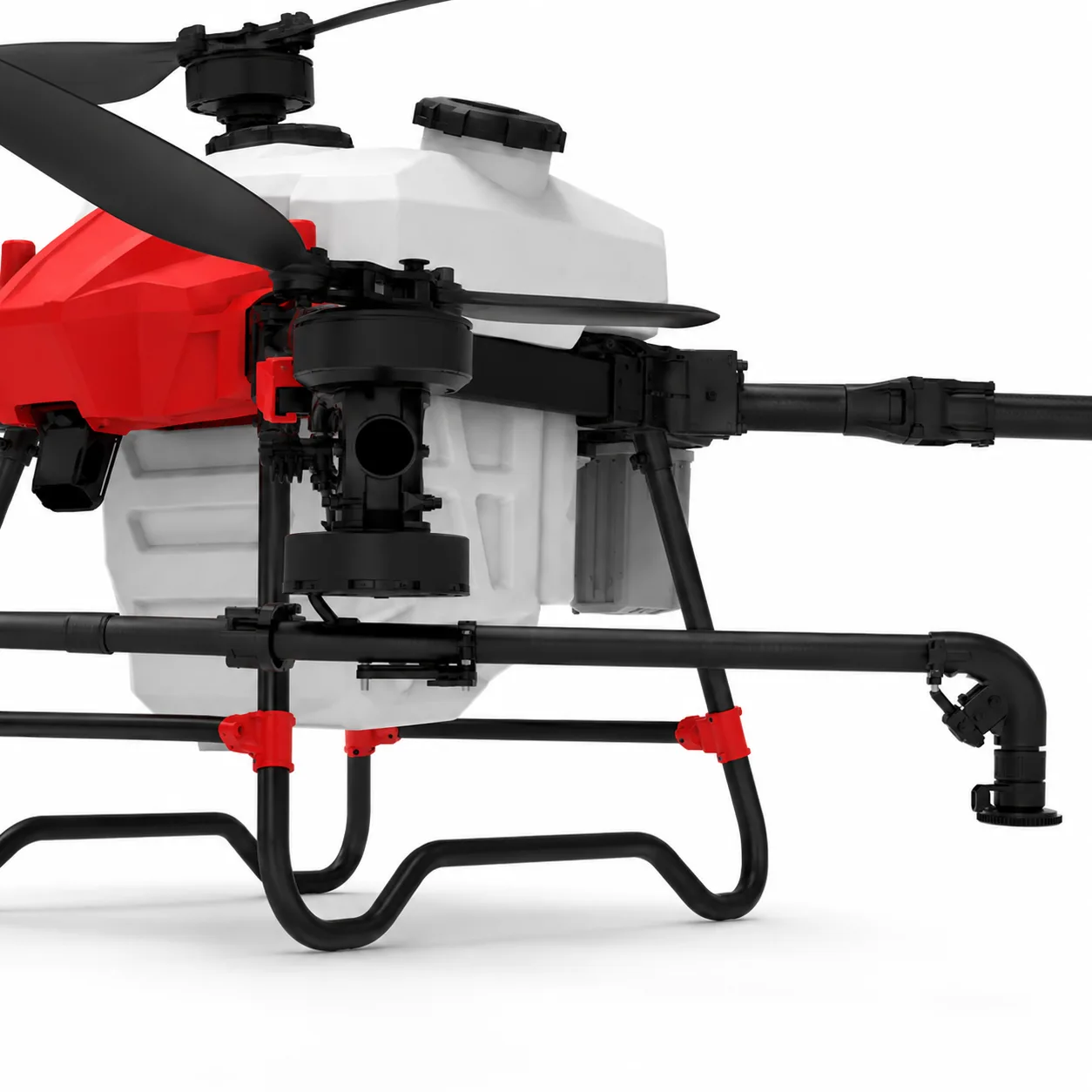

100L agricultural drone spraying system detail

Key Features

  • 100L large-capacity tank for high-volume agricultural spraying
  • 10-25 m working spray width for broad field coverage
  • 25-35 L/min spray flow rate for efficient pesticide and fertilizer application
  • Dual centrifugal nozzle system for stable spray performance
  • Foldable airframe for easier transport and storage
  • Integrated flight control for professional farm operation
  • Optional obstacle avoidance and terrain-following radar
  • Suitable for farms, plantations, cooperatives, contractors, and distributors

Product Overview

It is designed for large farms, plantations, cooperatives, agricultural contractors, and distributors that need a high-capacity spraying UAV for intensive daily operations. Compared with smaller spraying platforms, this model helps reduce refill frequency and improve large-area task efficiency. In practical operations, the platform supports more stable route execution, better operation consistency, and stronger adaptability across different field conditions. Its foldable airframe, integrated flight control, and radar configuration options make it suitable for varied crop types, terrain complexity, and operation workflows. For B2B procurement, project configuration can be aligned to local needs, including nozzle setup, radar package, battery and charger planning, spare-parts strategy, training support, and after-sales requirements.

Request a Quote

Technical Specifications

Core Specifications
Model
100L Agricultural Drone
Product Name
100L Agricultural Spraying Drone
Unfolded Dimensions
3465*3358*984 mm
Folded Dimensions
1250*1400*984 mm
Wheelbase
2565 mm
Aircraft Weight (without battery)
64 kg
Maximum Takeoff Weight
180 kg
Maximum Payload
100L
Hover Time (Unloaded)
20min
Hover Time (Fully Loaded)
7min
Working Spray Width
10-25m
Spray Flow Rate
25-35L/min
Spray System
Centrifugal Nozzle*2
Flight Control System
Integrated Control
Radar Installation
Front Obstacle Avoidance / Rear Obstacle Avoidance / Terrain-Following Radar / Omnidirectional Radar
Flight Radius
≤2000m
Flight Speed
1-12m/s
Hovering
Hover in any orientation
Safe Takeoff/Landing Wind Speed
≤ Force 6
Battery Capacity
18s45000mAh
Battery Weight
20kg

Related Products

Explore related products in the Agriculture UAV Drones range to compare deployment form factors, response methods, and system integration options for similar project requirements.

Explore Related Categories

Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.

Agriculture UAV Drones

Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.

Counter-Drone Systems

Counter-drone systems for airports, critical infrastructure, industrial facilities, and public security projects, covering detection, tracking, identification, and authorized response workflows.

Heavy-Lift Cargo UAVs

Heavy-lift cargo UAVs for industrial logistics, remote delivery, and mission-based aerial transport across construction, energy, emergency, and field operations.

FPV Drones

FPV drones for training, testing, custom integration, and configurable first-person flight projects with low-latency control and flexible setup options.

Industrial Inspection UAVs

Industrial inspection UAVs for safer asset monitoring, faster data capture, and lower inspection downtime.

Defense & Tactical UAVs

Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.

Frequently Asked Questions

What crops and farm scenarios is the 100L Agricultural Spraying Drone suitable for?

The 100L Agricultural Spraying Drone is designed for large-scale crop protection, pesticide spraying, fertilizer application, plantation spraying, orchard management, and precision agriculture service projects. It is ideal for large farms, plantations, cooperatives, agricultural service providers, crop protection contractors, and distributors that require high-capacity spraying for large-area operations. Depending on local terrain and crop conditions, it can be used for rice, wheat, corn, cotton, sugarcane, orchards, tea gardens, and other commercial agriculture scenarios.

What is the spraying capacity and working efficiency of this drone?

This model supports a 100L liquid tank, 10-25m working spray width, and 25-35 L/min spray flow rate for high-volume spraying tasks. Actual efficiency depends on crop type, spray height, flight speed, field structure, nozzle settings, dosage target, weather, and route planning. Compared with smaller agricultural drones, the 100L platform reduces refill frequency and improves continuous operation efficiency for large farms and service teams.

How long can the drone fly when fully loaded?

The platform provides about 20min unloaded hover time and about 7min fully loaded hover time. Actual spraying endurance differs from hover time and varies with battery condition, liquid load, flight profile, wind, temperature, and safety reserve strategy. For continuous operations, we recommend planning multiple batteries, chargers, and key spare parts to reduce field downtime.

Does the drone support obstacle avoidance and terrain-following operation?

Yes. The drone can be configured with front obstacle avoidance radar, rear obstacle avoidance radar, terrain-following radar, and omnidirectional radar. These radar options improve operational safety and adaptability in orchards, plantations, sloped farmland, uneven terrain, and obstacle-dense fields. Final radar configuration can be selected according to crop profile, field environment, operator habits, and project budget.

Can this 100L agricultural drone be customized for different markets or farming needs?

Yes. For B2B orders, configuration can be adjusted for crop type, field conditions, market requirements, and distributor needs. Customization options include nozzle system, radar setup, battery and charger package, spare-parts kit, spraying system setup, packaging requirements, branding support, operation documentation, and training support. Before quotation, please share crop profile, farm size, target market, required configuration, order quantity, and after-sales requirements.

What trade terms do you support for international orders?

For international B2B orders, we currently support FOB and CIF trade terms only. FOB means the buyer arranges international freight after delivery to the agreed port of shipment, while CIF includes freight and insurance to the agreed destination port. We currently do not support DDP, DAP, EXW, or door-to-door delivery terms.
