50L Agricultural Spraying Drone

The 50L Agricultural Spraying Drone is built for large-area crop protection, pesticide spraying, fertilizer application, and precision agriculture operations where productivity and consistency are critical.

50L agricultural spraying drone main product image

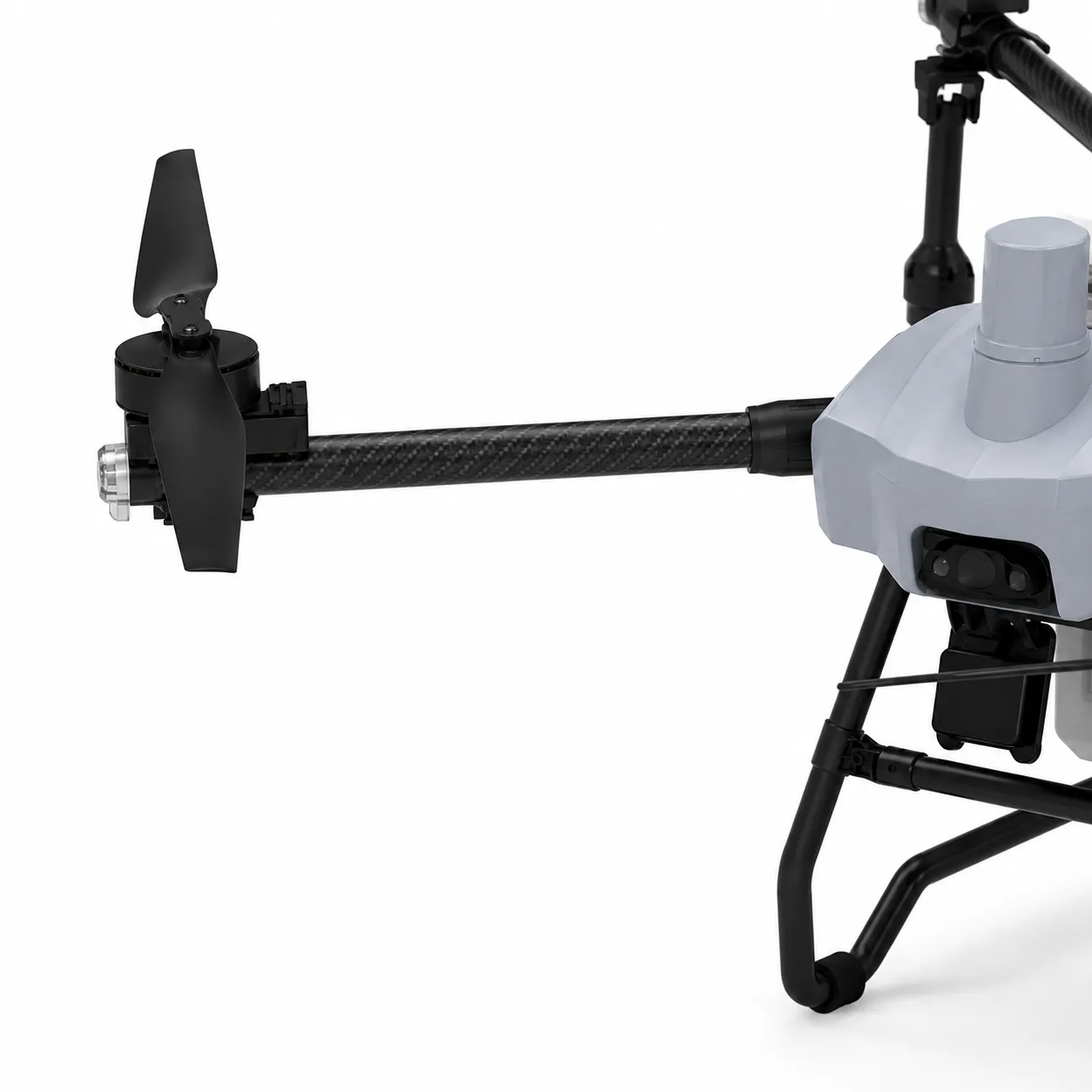

50L agricultural drone arm and propeller detail

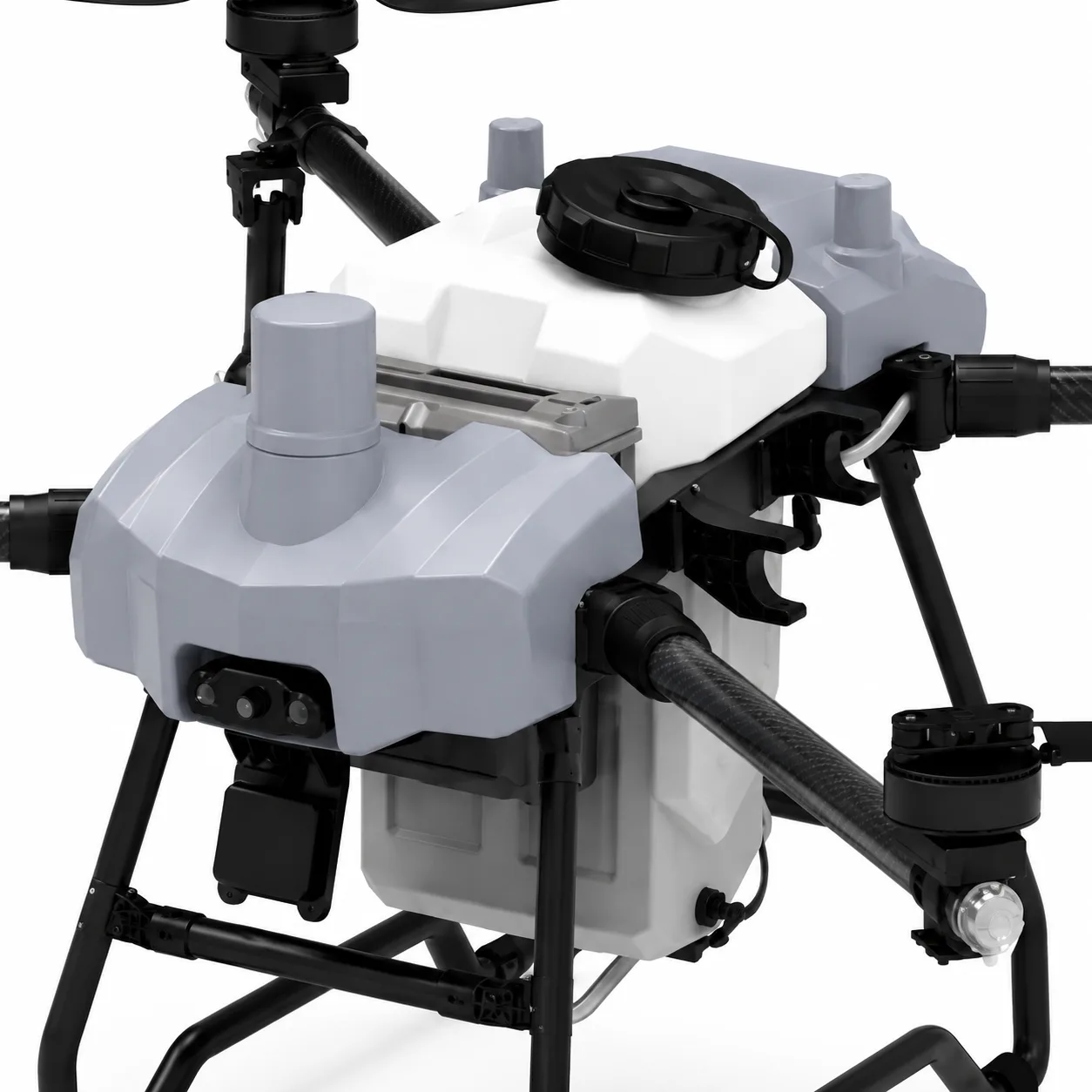

50L agricultural drone body close-up detail

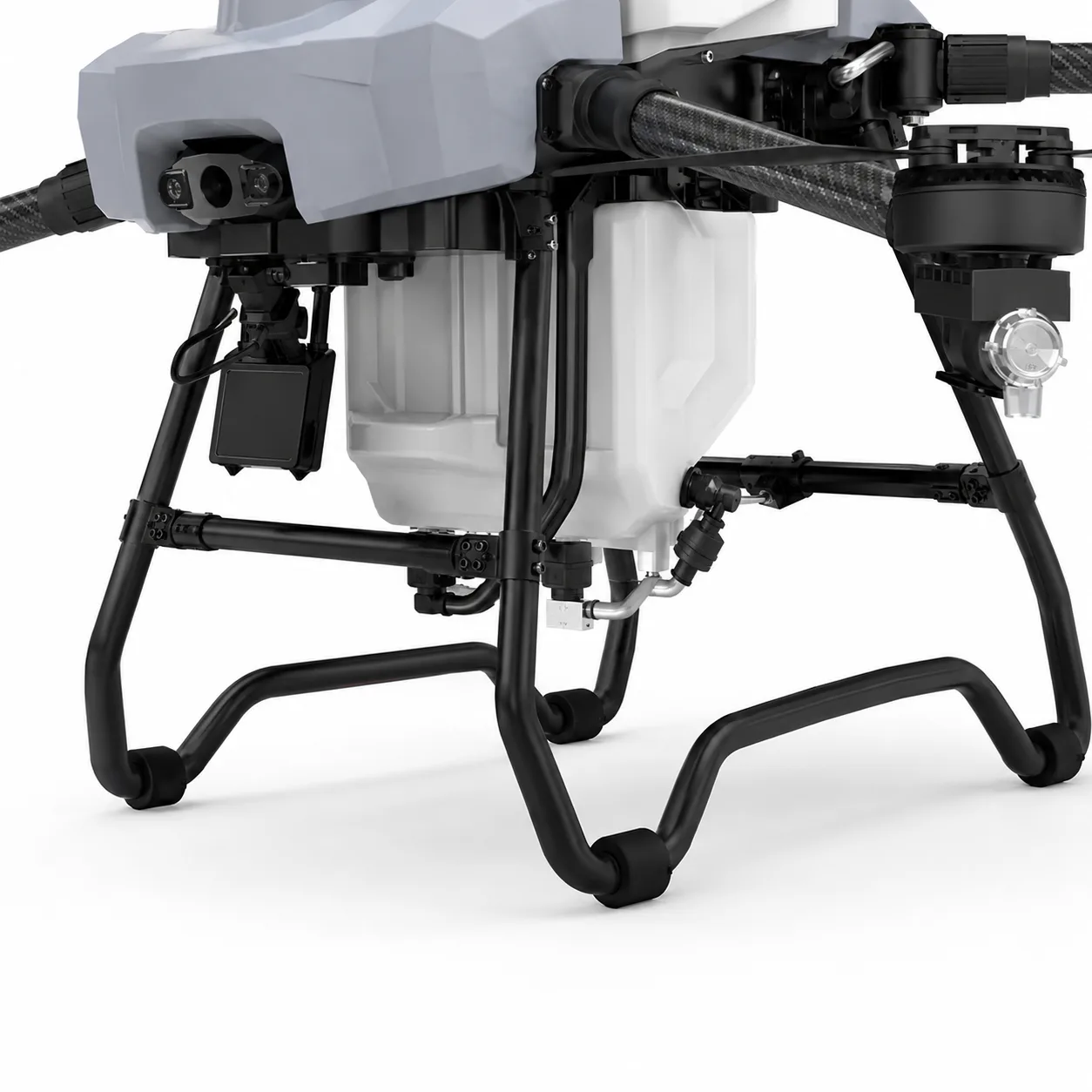

50L agricultural drone component detail

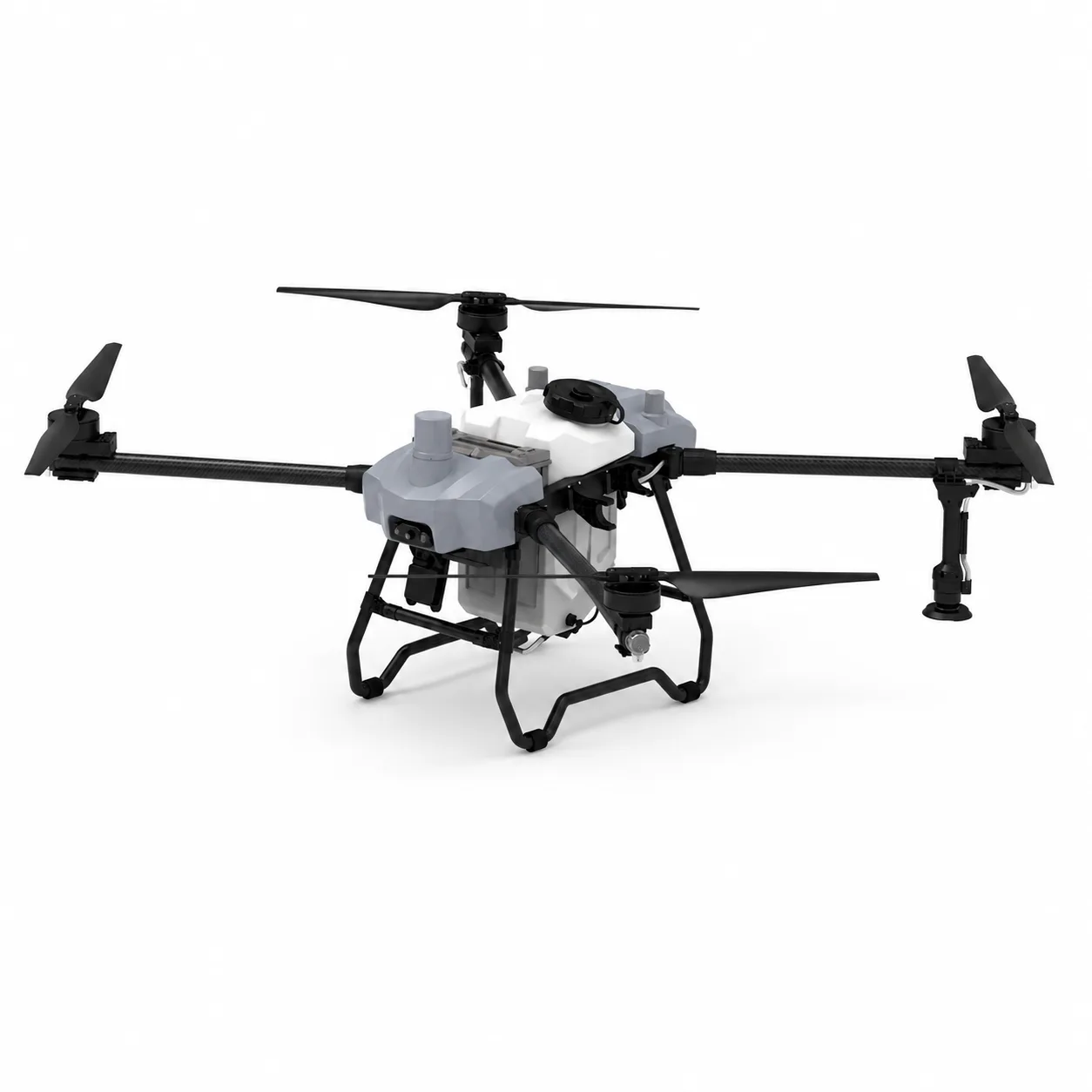

50L agricultural drone sprayer system detail

Key Features

  • 50L large-capacity tank for high-volume spraying tasks
  • 8-20 m working spray width for broad field coverage
  • 12-24 L/min spray flow rate for efficient application
  • Dual centrifugal nozzle system for stable spray performance
  • Foldable airframe for easier transport and storage
  • Integrated flight control for consistent farm operations
  • Optional obstacle avoidance and terrain-following radar
  • Suitable for farms, cooperatives, contractors, and distributors

Product Overview

It is designed for farms, cooperatives, agricultural service providers, and crop protection contractors that need to complete more hectares per day with stable spraying quality and lower manual workload. In practical operations, the platform helps teams improve route repeatability, reduce missed or uneven coverage, and maintain better task consistency across different field conditions. This makes it suitable for field crops, orchards, plantations, and commercial agricultural spraying projects. For B2B procurement, configuration can be aligned to local requirements, including nozzle setup, radar package, battery plan, spare-parts strategy, and training support, so the final solution matches operational goals and long-term service needs.

Request a Quote

Technical Specifications

Core Specifications
Model
50L Agricultural Spraying Drone
Product Type
Large-Capacity Crop Sprayer UAV
Unfolded Dimensions
3150*3000*880 mm
Folded Dimensions
1270*775*880 mm
Wheelbase
2350 mm
Aircraft Weight (Without Battery)
36.5 kg
Maximum Takeoff Weight
101.1 kg
Maximum Payload
50 L
Hover Time (Unloaded)
22min45s
Hover Time (Fully Loaded)
8min40s
Working Spray Width
8-20 m
Spray Flow Rate
12-24 L/min
Spray System
Centrifugal Nozzle*2
Flight Control System
Integrated Control
Radar Installation
Front Obstacle Avoidance / Rear Obstacle Avoidance / Terrain-Following Radar / Omnidirectional Radar
Flight Radius
≤2000m
Flight Speed
1-12m/s
Hovering
Hover in any orientation
Safe Takeoff/Landing Wind Speed
≤ Force 6
Battery Capacity
18s30000mAh
Battery Weight
14.6kg

Related Products

Explore related products in the Agriculture UAV Drones range to compare deployment form factors, response methods, and system integration options for similar project requirements.

Explore Related Categories

Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.

Agriculture UAV Drones

Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.

Counter-Drone Systems

Counter-drone systems for airports, critical infrastructure, industrial facilities, and public security projects, covering detection, tracking, identification, and authorized response workflows.

Heavy-Lift Cargo UAVs

Heavy-lift cargo UAVs for industrial logistics, remote delivery, and mission-based aerial transport across construction, energy, emergency, and field operations.

FPV Drones

FPV drones for training, testing, custom integration, and configurable first-person flight projects with low-latency control and flexible setup options.

Industrial Inspection UAVs

Industrial inspection UAVs for safer asset monitoring, faster data capture, and lower inspection downtime.

Defense & Tactical UAVs

Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.

Frequently Asked Questions

What crops and farm scenarios is this 50L agricultural spraying drone suitable for?

The 50L Agricultural Spraying Drone is designed for large-area crop protection, pesticide spraying, fertilizer application, orchard operations, plantation management, and precision agriculture service projects. It is suitable for field crops, cash crops, fruit trees, and commercial farming operations under different terrain and crop conditions. It is ideal for farms, cooperatives, agricultural service providers, and crop protection contractors that require higher spraying efficiency than smaller-capacity platforms.

How much spraying capacity can this drone provide?

This model supports a 50 L tank capacity, 8-20 m working spray width, and 12-24 L/min spray flow rate. Actual field efficiency depends on crop type, spray height, flight speed, nozzle setup, dosage target, weather, and route planning. For large farms and service teams, we can recommend a suitable spraying configuration based on crop profile, dosage per hectare, and daily operation area.

How long can the drone fly when fully loaded?

The platform provides about 22 min 45 s hover time without load and about 8 min 40 s hover time when fully loaded. Actual spraying endurance differs from hover time and varies with battery condition, payload, wind, temperature, spray mode, and safety reserve. For continuous farm operations, we recommend planning multiple batteries, chargers, and key spare parts to reduce field downtime.

Does the drone support obstacle avoidance and terrain-following operation?

Yes. The drone can be configured with front obstacle avoidance radar, rear obstacle avoidance radar, terrain-following radar, and omnidirectional radar. These options improve operational safety and adaptability in uneven fields, orchards, slopes, plantations, and obstacle-dense environments. Final radar configuration can be selected according to crop type, terrain complexity, operation habits, and budget.

Can the drone be customized for different markets or farming needs?

Yes. For B2B orders, configuration can be customized for local farming conditions and project requirements, including nozzle type, radar package, battery and charger setup, spare-parts kit, spraying system setup, packaging, branding, and training support. Before quotation, please provide crop type, farm size, target market, required spraying efficiency, order quantity, and after-sales expectations.

What trade terms do you support for international orders?

For international B2B orders, we currently support FOB and CIF terms only. FOB means the buyer arranges international freight after delivery to the agreed port of shipment, while CIF includes freight and insurance to the agreed destination port. We currently do not support DDP, DAP, EXW, or door-to-door delivery terms.
