6A-4+1 Hybrid VTOL Fixed-Wing UAV

The 6A-4+1 Hybrid VTOL Fixed-Wing UAV is a vertical-takeoff fixed-wing platform built for long-endurance missions, efficient cruise coverage, and flexible deployment in complex field environments.

6A-4+1 hybrid VTOL fixed-wing UAV main product image

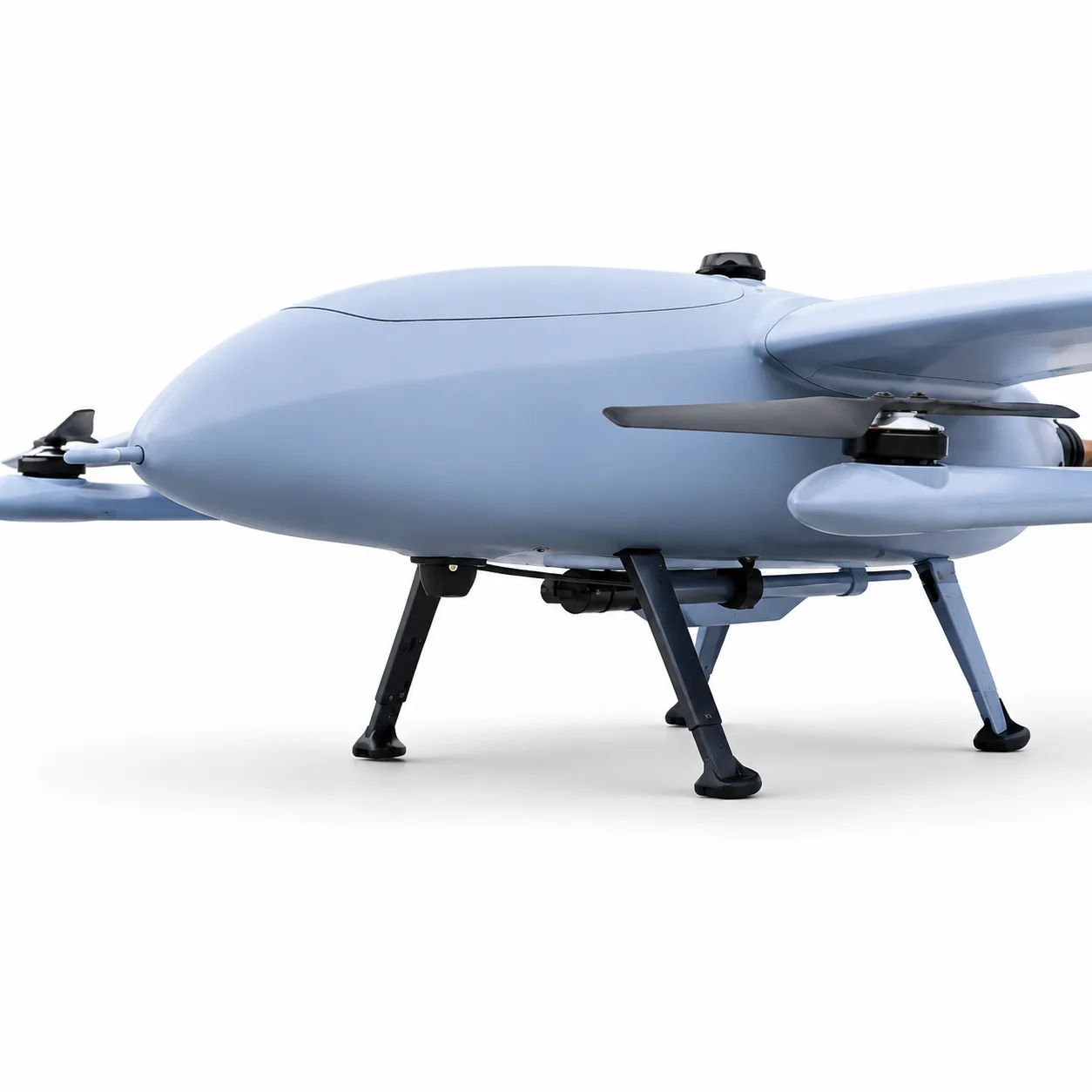

6A-4+1 hybrid VTOL UAV landing gear and lower fuselage detail

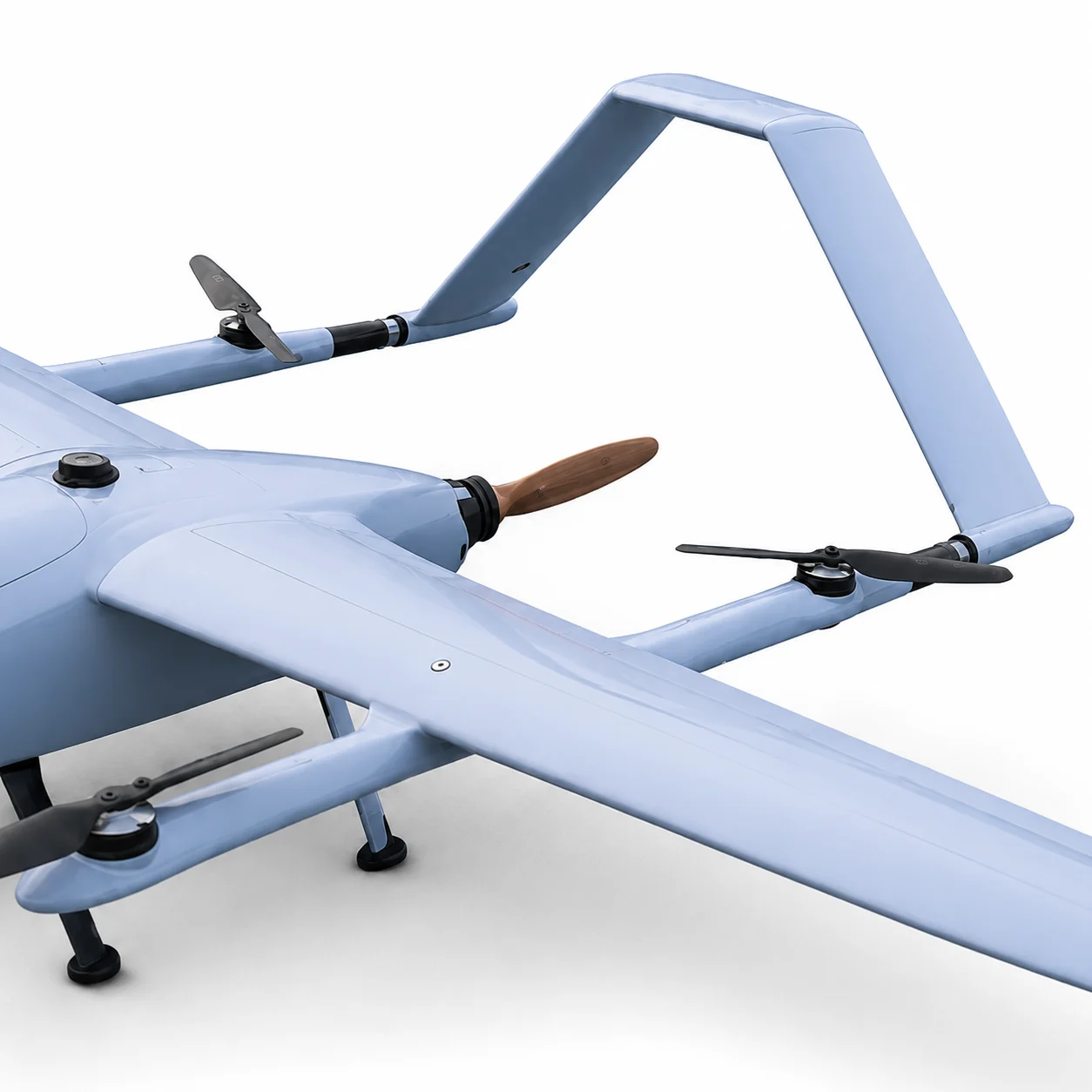

6A-4+1 hybrid VTOL UAV tail propulsion and rear frame detail

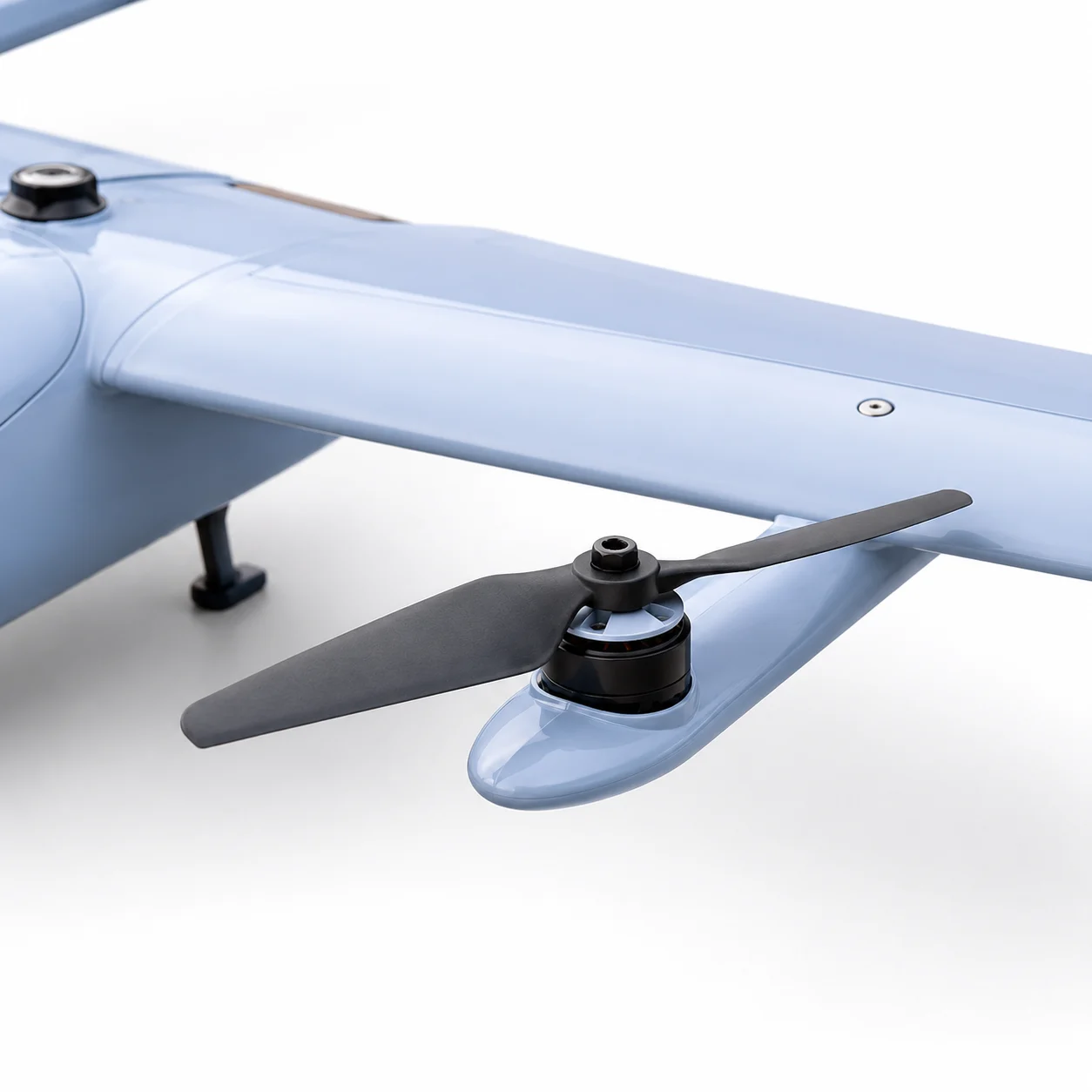

6A-4+1 hybrid VTOL UAV wing rotor and lift motor detail

Key Features

  • Hybrid VTOL fixed-wing architecture for runway-free takeoff and efficient cruise flight
  • MTOW up to 12 kg with practical mission payload range of 1-2 kg
  • Extended visual-load endurance above 120 minutes for long-duration aerial operations
  • Cruise speed range of 70-90 km/h for efficient large-area route coverage
  • Operational wind resistance up to Level 6 for stable field performance
  • Composite airframe design with thermally molded materials for lightweight durability

Product Overview

The 6A-4+1 Hybrid VTOL Fixed-Wing UAV is a vertical-takeoff fixed-wing platform built for long-endurance missions, efficient cruise coverage, and flexible deployment in complex field environments.

Request a Quote

Technical Specifications

Airframe and Configuration
Aircraft Type
Hybrid VTOL fixed-wing UAV
Empty Weight
< 2.6kg
Material
Thermally molded composite airframe
Takeoff Method
Vertical takeoff and landing (VTOL)
Payload and Limits
Maximum Takeoff Weight
12kg
Payload Capacity
1-2kg
Visual-Load Endurance
> 120min
Dimensions and Flight Data
Wingspan
2.5m
Fuselage Length
1.45m
Flight Speed
65-100km/h
Cruise Speed
70-90km/h
Headwind Resistance
Level 6
Propulsion and Mission Profile
Power System
Custom dedicated motor and battery system
Reference Mission Data
Approx. 72-75 km/h cruise with 11 kg takeoff profile; multi-hour patrol capability in test conditions

Related Products

Explore related products in the Industrial Inspection UAVs range to compare deployment form factors, response methods, and system integration options for similar project requirements.

Explore Related Categories

Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.

Industrial Inspection UAVs

Industrial inspection UAVs for safer asset monitoring, faster data capture, and lower inspection downtime.

Defense & Tactical UAVs

Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.

FPV Drones

FPV drones for training, testing, custom integration, and configurable first-person flight projects with low-latency control and flexible setup options.

Agriculture UAV Drones

Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.

Counter-Drone Systems

Counter-drone systems for airports, critical infrastructure, industrial facilities, and public security projects, covering detection, tracking, identification, and authorized response workflows.

Frequently Asked Questions

What mission type is this VTOL fixed-wing platform best for?

This platform is best suited for long-range inspection, route patrol, corridor monitoring, and wide-area mapping tasks that need both VTOL flexibility and fixed-wing cruise efficiency.

How should buyers interpret the 1-2 kg payload range?

The 1-2 kg payload range is designed for mission payloads such as optical, thermal, or specialized lightweight sensors. Final payload planning should account for route distance, weather, and endurance targets.

Is >120 minutes endurance realistic in field use?

Yes, as a visual-load mission reference. Actual endurance depends on payload weight, wind, cruise speed profile, and temperature conditions. Mission-level validation is recommended for deployment planning.

What is the value of VTOL for operations compared with conventional fixed-wing launch?

VTOL eliminates runway and launcher dependency, enabling faster deployment in constrained terrain while retaining fixed-wing cruise efficiency for longer coverage routes.

How robust is this model in wind and operational environments?

The platform is specified for up to Level 6 headwind resistance and uses a lightweight composite structure, supporting stable operation in practical field conditions when mission limits are respected.

How are commercial terms handled for procurement?

Pricing is inquiry-based and depends on configuration and destination. We support FOB and CIF terms. DDP door-to-door service is not included in our standard trade scope.
