HY180 Long-Endurance Delta-Wing Fixed-Wing UAV
A long-endurance delta-wing fixed-wing UAV with 13h endurance, 50 kg payload capacity, 180 kg maximum takeoff weight, 5000 m maximum flight altitude, and Level 7 wind resistance for target simulation, electronic countermeasure support, and multi-payload mission applications.
Key Features
- Long-endurance delta-wing fixed-wing UAV for professional mission applications
- 50 kg maximum payload capacity for multi-payload integration
- 180 kg maximum takeoff weight for medium-size UAV missions
- 13h maximum endurance for extended field operation scenarios
- 5000 m maximum flight altitude for wider operational coverage
- 50 m/s cruise speed and 62 m/s maximum level speed
- 5 m/s climb rate for stable altitude gain
- Level 7 wind resistance for stronger outdoor adaptability
- Piston aviation engine for reliable long-duration operation
- Supports rocket-assisted launch, pneumatic launcher deployment, and parachute recovery
- Suitable for target simulation, electronic countermeasure support, payload testing, and specialized mission deployment
Product Overview
The HY180 Long-Endurance Delta-Wing Fixed-Wing UAV is a mission-focused unmanned aircraft platform designed for target simulation, electronic countermeasure support, payload integration, and specialized field operation scenarios. Its delta-wing fixed-wing configuration provides stable flight performance, strong payload adaptability, and reliable endurance for professional B2B applications. With a fuselage length of 2850 mm, wingspan of 2600 mm, maximum takeoff weight of 180 kg, and maximum payload capacity of 50 kg, the HY180 offers a practical balance between payload capability, endurance, speed, and deployment flexibility. The platform supports up to 13 hours of endurance, 50 m/s cruise speed, 62 m/s maximum level speed, 5000 m maximum flight altitude, and Level 7 wind resistance. It can support rocket-assisted launch or pneumatic launcher deployment, with parachute recovery for mission completion.
Technical Specifications
Core Specifications
Model
HY180
UAV Type
Long-Endurance Delta-Wing Fixed-Wing UAV
Overall Length
2850 mm
Wingspan
2600 mm
Height
608 mm

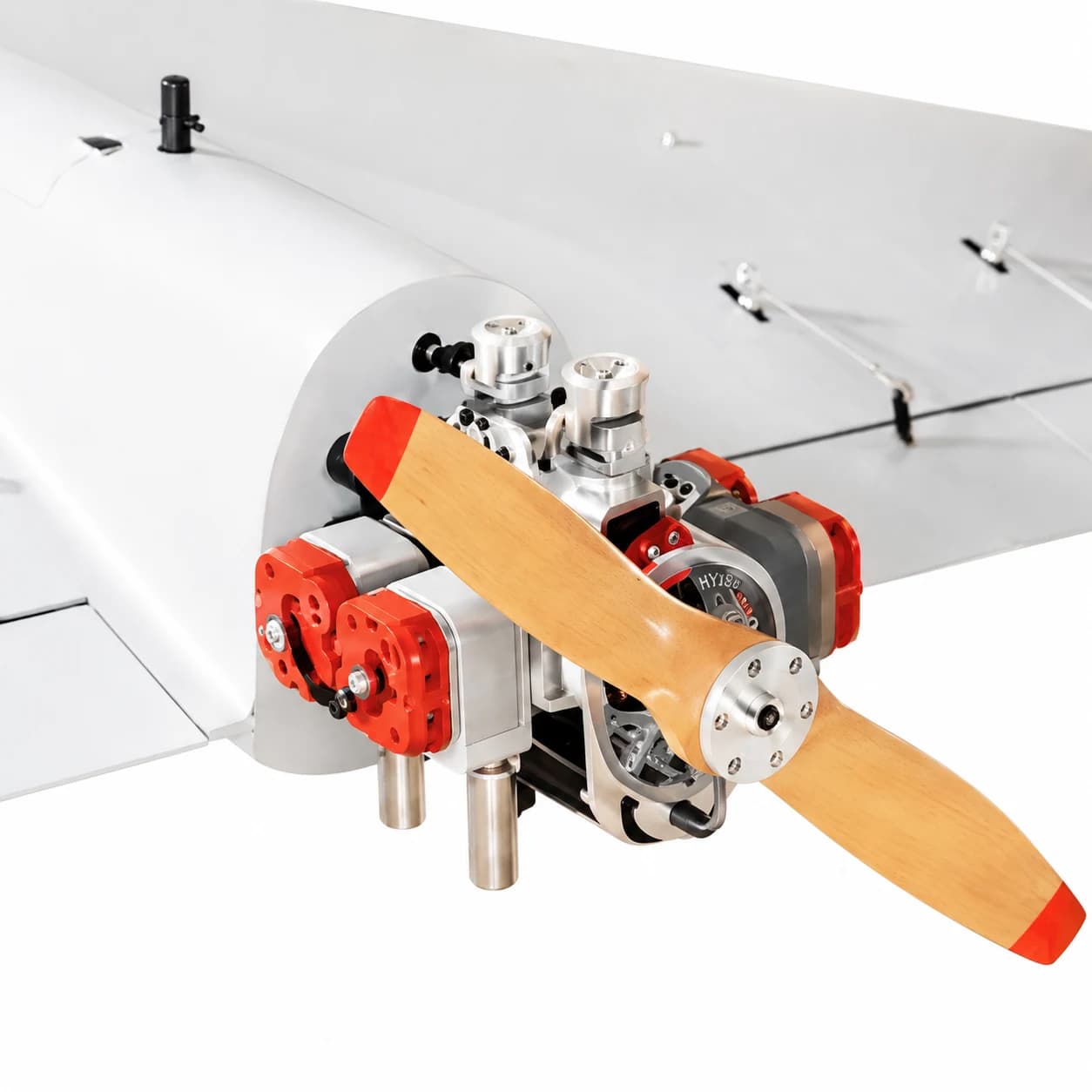

Propulsion System
Piston aviation engine
Launch Method
Rocket-assisted launch or pneumatic launcher
Recovery Method
Parachute recovery
Maximum Payload Capacity
50 kg
Cruise Speed
50 m/s
Maximum Level Speed
62 m/s
Climb Rate
5 m/s
Maximum Takeoff Weight
180 kg
Maximum Endurance
13 h
Maximum Flight Altitude
5000 m
Wind Resistance
Level 7
Typical Applications
Target simulation, electronic countermeasure support, payload integration
Related Products
Explore related products in the Defense & Tactical UAVs range to compare deployment form factors, response methods, and system integration options for similar project requirements.
Defense & Tactical UAVs
Defense & Tactical UAVsType 18 MALE Long-Endurance UAV
A medium-altitude long-endurance UAV with 24h...
200 kg Payload
Industrial Inspection UAVsHY3300 Long-Endurance VTOL Fixed-Wing UAV
The HY3300 is a long-endurance VTOL fixed-wing...
3-6 kg Payload
Defense & Tactical UAVsType 1 Micro Fixed-Wing UAV
A 250g-class micro fixed-wing UAV with 30 km c...
30 g Payload
Defense & Tactical UAVsHY2400 Turbojet Canard Delta-Wing UAV
A turbojet-powered canard delta-wing UAV with...
30 kg Payload
Defense & Tactical UAVsType 16 Coaxial Rotor Tactical UAV
A compact coaxial rotor tactical UAV with 120...
≥ 2 kg Payload
Defense & Tactical UAVsType 11 Heavy-Lift Unmanned Helicopter
A gas-powered heavy-lift unmanned helicopter w...
30 kg (including fuel, sea level) Payload
Defense & Tactical UAVsHY700 Foldable Fixed-Wing Reconnaissance UAV
A foldable electric fixed-wing reconnaissance...
3 kg Payload
Defense & Tactical UAVsType 14 Tactical Fixed-Wing UAV
Type 14 Tactical Fixed-Wing UAV is built for d...
Approx. 200 kg Payload
Explore Related Categories
Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.
Defense & Tactical UAVs
Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.
Industrial Inspection UAVs
Industrial inspection UAVs for safer asset monitoring, faster data capture, and lower inspection downtime.
Agriculture UAV Drones
Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.
Counter-Drone Systems
Counter-drone systems for airports, critical infrastructure, industrial facilities, and public security projects, covering detection, tracking, identification, and authorized response workflows.
Firefighting Drones
Firefighting drones for thermal monitoring, hotspot detection, scene visibility, and emergency-response support across wildfire, urban, and industrial fire operations.
Frequently Asked Questions
What missions is the HY180 Long-Endurance Delta-Wing Fixed-Wing UAV suitable for?
The HY180 Long-Endurance Delta-Wing Fixed-Wing UAV is designed for professional B2B customers who need a long-endurance fixed-wing UAV platform with strong payload adaptability and reliable mission performance. It is suitable for target simulation, electronic countermeasure support, payload testing, training support, mission equipment integration, and specialized field operation scenarios. With 13h maximum endurance, 50 kg payload capacity, 5000 m maximum flight altitude, and Level 7 wind resistance, the HY180 is suitable for projects that require longer flight time, stable fixed-wing performance, and flexible payload configuration.
What is the payload capacity of the HY180 UAV?
The HY180 supports a maximum payload capacity of 50 kg, making it suitable for different mission modules and customer-specific payload systems. Payload configuration can be customized according to the project requirements. Customers may integrate mission equipment, test modules, electronic systems, communication devices, or other specialized payloads. For accurate evaluation, we recommend providing payload weight, dimensions, mounting method, power requirements, and expected mission profile before quotation.
How long can the HY180 UAV stay in the air?
The HY180 supports up to 13 hours of maximum endurance, depending on payload weight, fuel configuration, flight altitude, cruise speed, wind conditions, and mission profile. For long-duration missions, actual flight time should be evaluated together with payload type, required route distance, operating altitude, and safety reserve. Our team can help review the mission requirements and recommend a suitable configuration for your project.
What are the key performance specifications of the HY180?
The HY180 has an overall length of 2850 mm, a wingspan of 2600 mm, and a height of 608 mm. It supports a 180 kg maximum takeoff weight and 50 kg maximum payload capacity. Its key flight performance includes 50 m/s cruise speed, 62 m/s maximum level speed, 5 m/s climb rate, 13h maximum endurance, 5000 m maximum flight altitude, and Level 7 wind resistance. The platform uses a piston aviation engine and is designed for long-duration fixed-wing UAV missions.
How does the HY180 UAV take off and recover?
The HY180 supports rocket-assisted launch or pneumatic launcher deployment, depending on customer requirements and mission conditions. For recovery, the platform supports parachute recovery, which helps reduce dependence on runway infrastructure and improves deployment flexibility in field environments. This launch and recovery method is useful for customers who need a fixed-wing UAV platform that can operate in areas where runway access is limited.
Can the HY180 be customized for different payloads or mission requirements?
Yes. The HY180 can be customized according to B2B project requirements. Customization may include payload mounting interface, onboard power supply, communication configuration, ground control system setup, launch support equipment, recovery system configuration, airframe finish, documentation, spare parts package, and training support. Final customization depends on payload type, mission requirements, quantity, destination country, operating environment, and applicable compliance procedures.
What information should I provide before requesting a quotation?
To provide an accurate quotation and configuration proposal, please provide the following information: Required quantity; Destination country or region; Intended application; Payload type, size, weight, and power requirements; Expected endurance, speed, altitude, and mission distance; Launch and recovery requirements; Communication and ground control requirements; Spare parts, training, and technical support needs; Customization requirements; Expected delivery schedule. This information helps us evaluate the suitable HY180 configuration, payload integration plan, lead time, and delivery arrangement.
What trade terms do you support for international orders?
For international B2B orders, we currently support FOB and CIF trade terms only. FOB means the buyer arranges international freight after the goods are delivered to the agreed port of shipment. CIF means we arrange freight and insurance to the agreed destination port. At this stage, we do not support DDP, DAP, EXW, or door-to-door delivery terms. For an accurate quotation, please provide your destination port, order quantity, required configuration, payload requirements, and any customization needs.
