HY700 Foldable Fixed-Wing Reconnaissance UAV

A foldable electric fixed-wing reconnaissance UAV with 3 kg payload capacity, 10 kg maximum takeoff weight, 50 min endurance, 3000 m maximum flight altitude, 100–110 km/h cruise speed, and IP64 protection for reconnaissance, target simulation, and field operation applications.

HY700 foldable fixed-wing reconnaissance UAV main product image

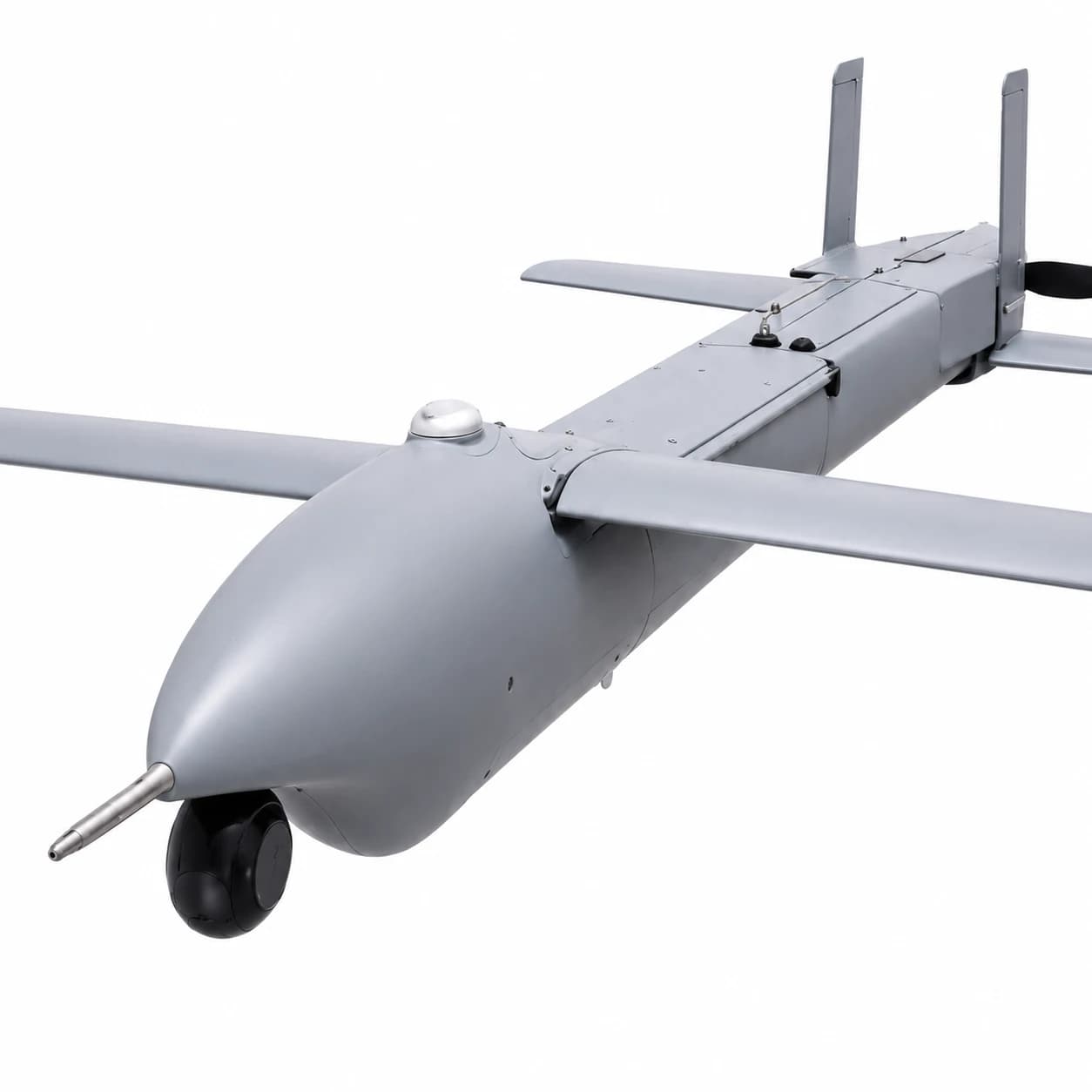

HY700 foldable fixed-wing UAV fuselage detail

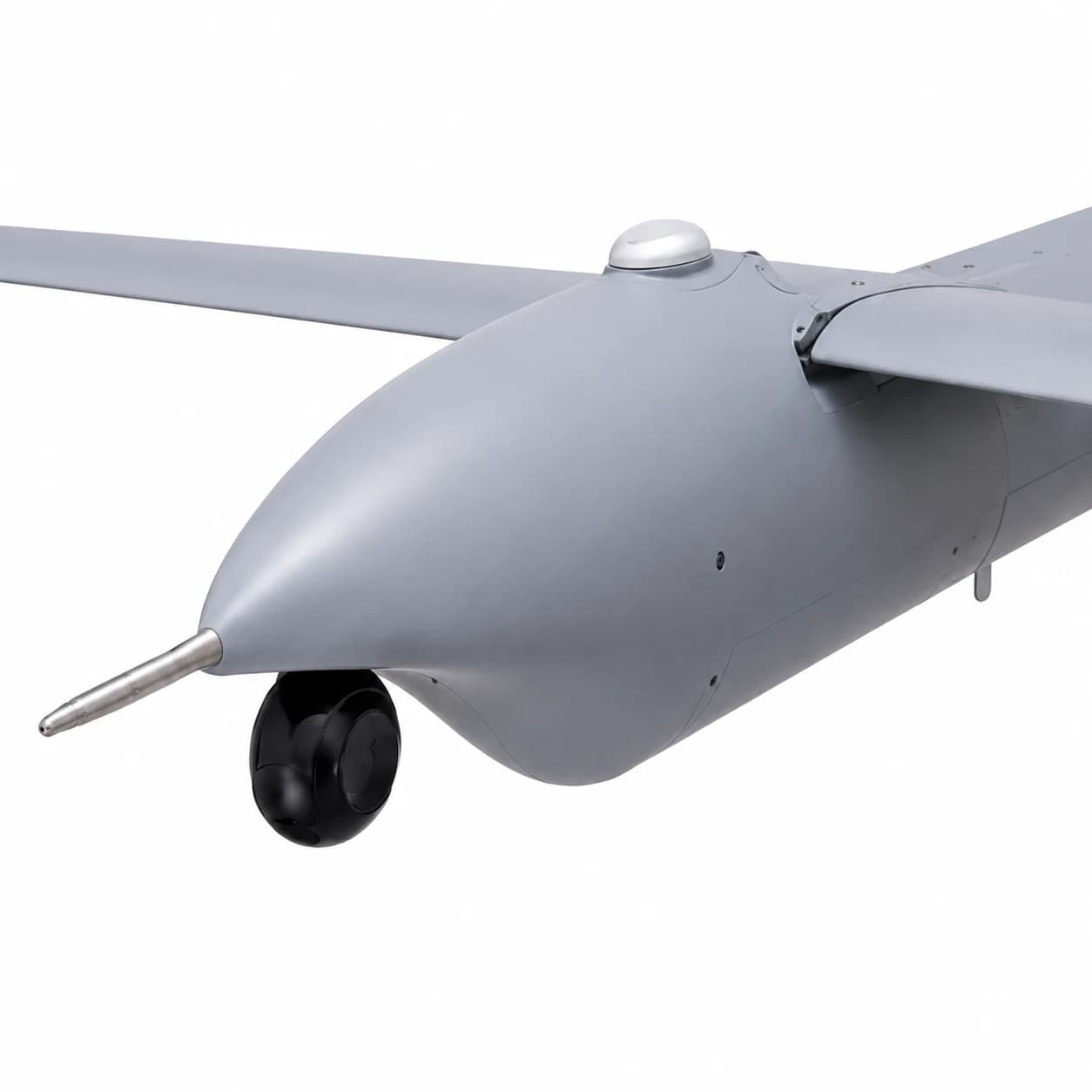

HY700 foldable fixed-wing UAV nose sensor detail

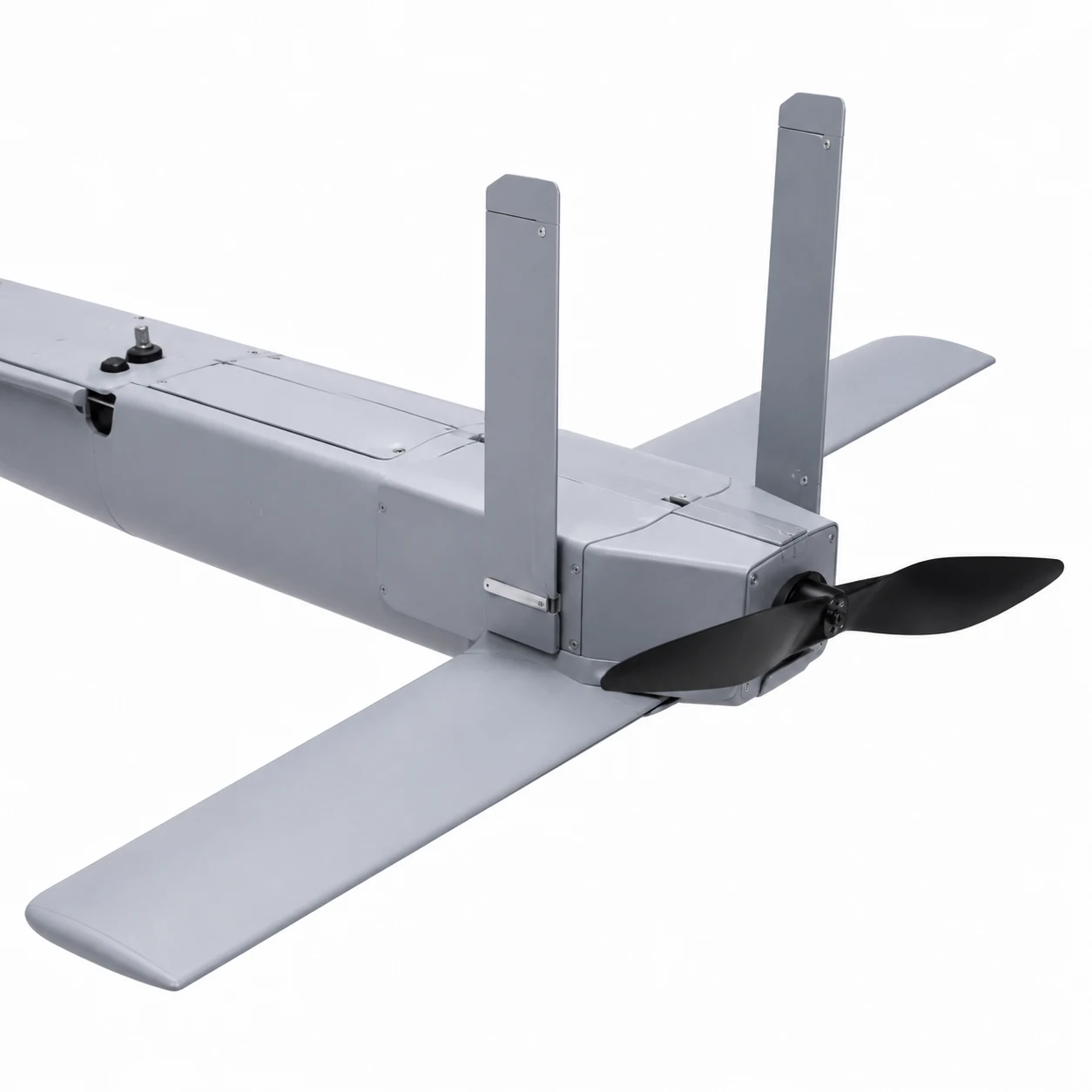

HY700 foldable fixed-wing UAV tail propulsion detail

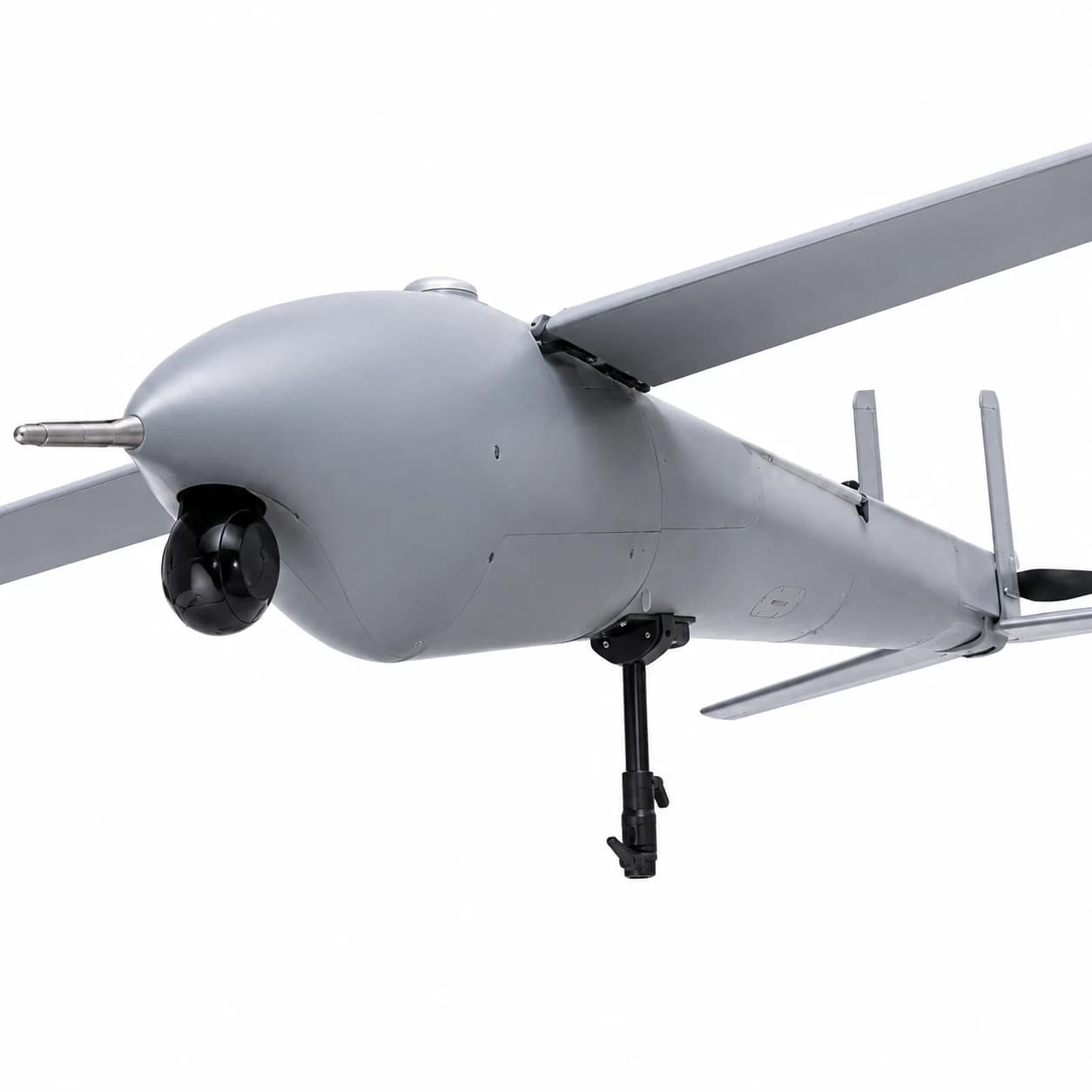

HY700 foldable fixed-wing UAV wing structure detail

Key Features

  • Foldable fixed-wing UAV designed for compact field deployment
  • 3 kg effective payload capacity for mission equipment integration
  • 10 kg maximum takeoff weight for lightweight tactical applications
  • 50 min maximum endurance depending on payload and mission profile
  • 3000 m maximum flight altitude for high-altitude field operation
  • 100–110 km/h cruise speed for fast-response mission execution
  • Electric propulsion system powered by a 12S lithium battery
  • IP64 protection rating for outdoor operating environments
  • Compact 1.7 m wingspan for easier transportation and storage
  • Suitable for reconnaissance, target simulation, payload testing, and field operation scenarios

Product Overview

The HY700 Foldable Fixed-Wing Reconnaissance UAV is a compact electric UAV platform designed for reconnaissance, target simulation, payload integration, and specialized field operation scenarios. Its foldable fixed-wing configuration improves transportation and deployment efficiency, while the electric propulsion system supports easier operation and lower maintenance compared with fuel-powered platforms. With a wingspan of 1.7 m, maximum takeoff weight of 10 kg, effective payload capacity of 3 kg, and maximum endurance of 50 minutes, the HY700 provides a practical balance between portability, payload capability, flight speed, and field deployment flexibility. The platform supports 100–110 km/h cruise speed, 3000 m maximum flight altitude, 12S lithium battery power supply, and IP64 protection for outdoor mission environments.

Request a Quote

Technical Specifications

Core Specifications
Model
HY700
UAV Type
Foldable Fixed-Wing Reconnaissance UAV
Wingspan
1.7 m
Maximum Flight Altitude
3000 m
Maximum Takeoff Weight
10 kg
Maximum Endurance
50 min
Effective Payload Capacity
3 kg
Cruise Speed
100–110 km/h
Internal Power Supply
12S Lithium Battery
Propulsion System
Electric
Protection Rating
IP64
Typical Applications
Reconnaissance, target simulation, payload testing, field operation

Related Products

Explore related products in the Defense & Tactical UAVs range to compare deployment form factors, response methods, and system integration options for similar project requirements.

Explore Related Categories

Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.

Defense & Tactical UAVs

Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.

Industrial Inspection UAVs

Industrial inspection UAVs for safer asset monitoring, faster data capture, and lower inspection downtime.

Agriculture UAV Drones

Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.

Counter-Drone Systems

Counter-drone systems for airports, critical infrastructure, industrial facilities, and public security projects, covering detection, tracking, identification, and authorized response workflows.

Firefighting Drones

Firefighting drones for thermal monitoring, hotspot detection, scene visibility, and emergency-response support across wildfire, urban, and industrial fire operations.

Frequently Asked Questions

What missions is the HY700 Foldable Fixed-Wing Reconnaissance UAV suitable for?

The HY700 Foldable Fixed-Wing Reconnaissance UAV is designed for professional field missions that require compact deployment, fast flight speed, and stable fixed-wing performance. It is suitable for reconnaissance, target simulation, payload testing, field observation, patrol support, training programs, and mission equipment integration. With a 3 kg effective payload, 50 min maximum endurance, 3000 m maximum flight altitude, and 100–110 km/h cruise speed, the HY700 is suitable for customers who need a compact fixed-wing UAV platform for fast-response field operation scenarios.

What is the payload capacity of the HY700 UAV?

The HY700 supports an effective payload capacity of 3 kg. This payload capacity can be used for different mission modules, test equipment, communication devices, monitoring payloads, or customer-specific systems. Actual payload performance may vary depending on payload size, mounting position, power demand, flight speed, and mission duration. For accurate configuration, we recommend providing the payload weight, dimensions, power requirements, installation method, and intended application before quotation.

How long can the HY700 stay in the air?

The HY700 supports up to 50 minutes of maximum endurance, depending on payload weight, battery configuration, flight speed, altitude, wind conditions, and mission profile. For customers planning reconnaissance, patrol, or target simulation missions, the actual flight time should be evaluated together with payload weight, route distance, flight altitude, and safety reserve. Our team can help assess whether the HY700 configuration meets your required mission duration.

What are the key flight performance specifications of the HY700?

The HY700 has a 1.7 m wingspan, 10 kg maximum takeoff weight, and 3 kg effective payload capacity. Its key flight performance includes 100–110 km/h cruise speed, 50 min maximum endurance, and 3000 m maximum flight altitude. The UAV uses an electric propulsion system powered by a 12S lithium battery, and it has an IP64 protection rating for outdoor operating environments. These specifications make the HY700 a compact and practical fixed-wing UAV platform for professional field missions.

What are the advantages of the foldable fixed-wing design?

The foldable fixed-wing design improves transportation, storage, and field deployment efficiency. Compared with larger fixed-wing UAVs, the HY700 is easier to carry and prepare for operation. Compared with multirotor drones, its fixed-wing configuration offers better forward-flight efficiency and faster cruise speed. This makes the HY700 suitable for customers who need a UAV platform that is compact enough for field deployment but still capable of efficient fixed-wing flight performance.

Is the HY700 electric or fuel-powered?

The HY700 uses an electric propulsion system powered by a 12S lithium battery. Compared with fuel-powered UAVs, electric propulsion is easier to operate, simpler to maintain, and more suitable for compact field missions. It also reduces fuel handling requirements and supports faster preparation before operation. For customers who need a lightweight, lower-maintenance UAV platform, the HY700 provides a practical electric fixed-wing solution.

Can the HY700 be customized for different mission requirements?

Yes. The HY700 can be customized according to B2B project requirements. Customization may include payload mounting interface, onboard power supply, communication configuration, ground control system setup, airframe finish, spare parts package, documentation, and training support. Final customization depends on payload type, mission requirements, operating environment, quantity, destination country, and applicable compliance procedures.
