Type 1 Micro Fixed-Wing UAV

A 250g-class micro fixed-wing UAV with 30 km control radius, 25 min endurance, GNSS navigation, carbon fiber airframe, and hand-launched deployment for reconnaissance, surveillance, and field monitoring missions.

Type 1 micro fixed-wing UAV main product image

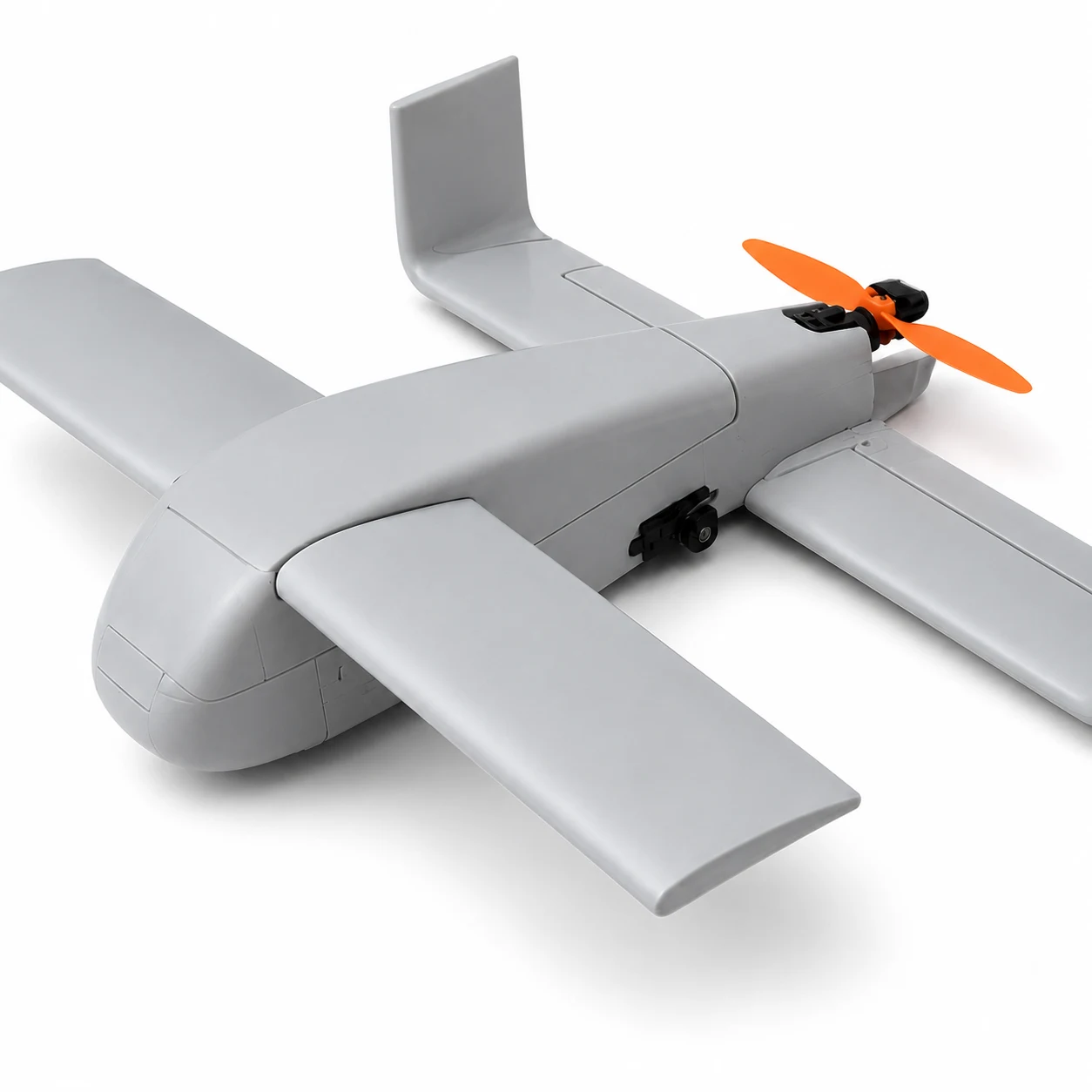

Type 1 micro fixed-wing UAV airframe detail view

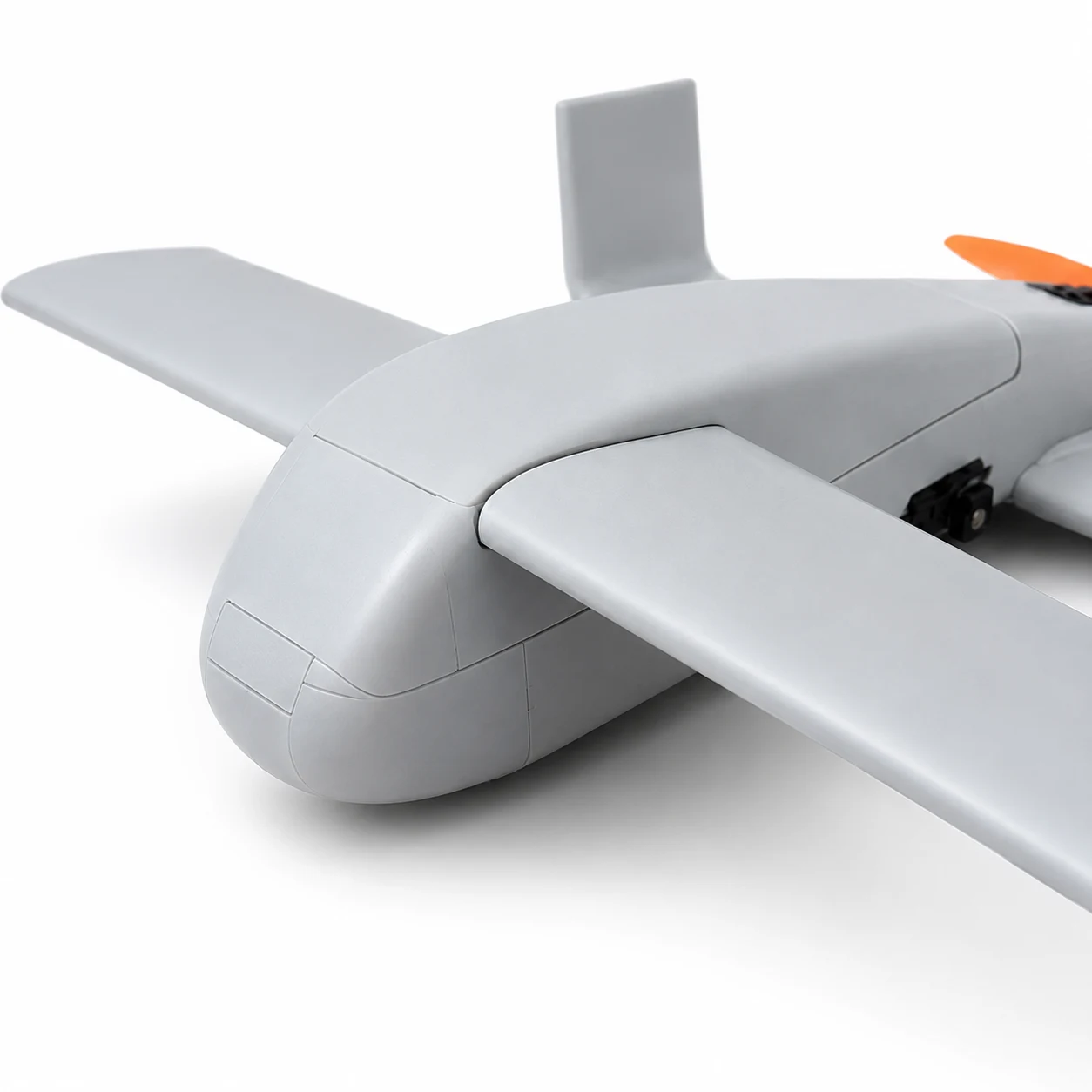

Type 1 micro fixed-wing UAV nose section detail

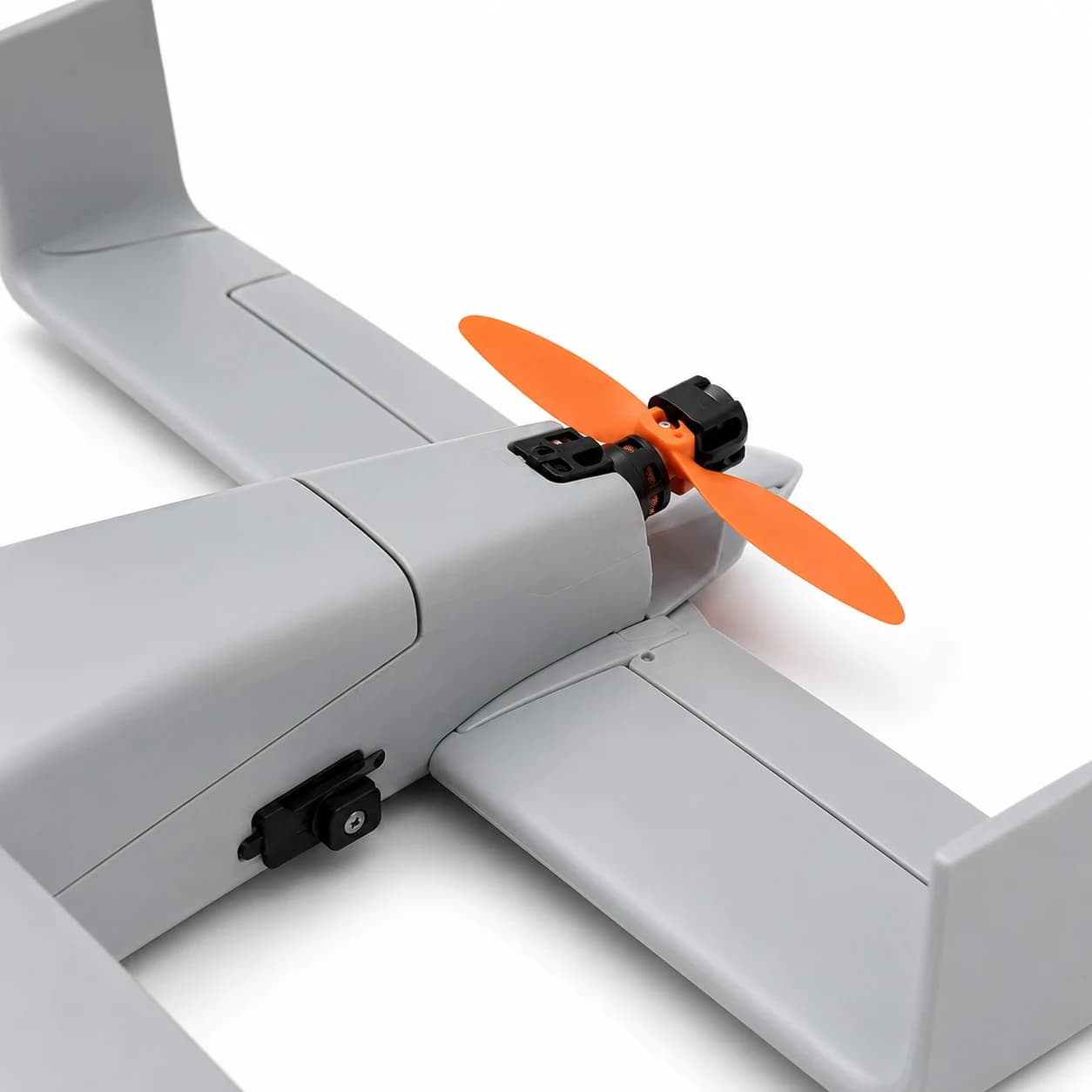

Type 1 micro fixed-wing UAV rear propeller detail

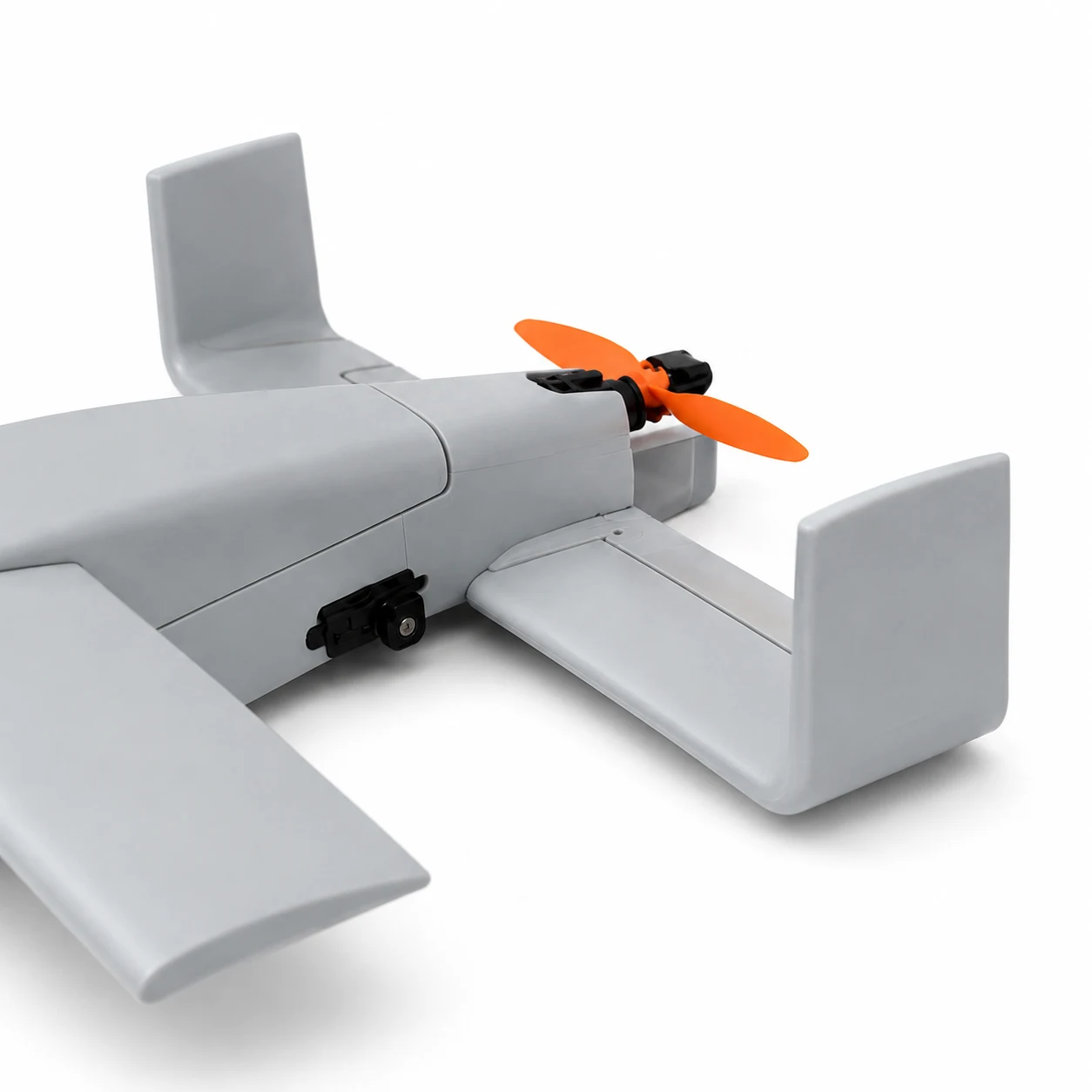

Type 1 micro fixed-wing UAV tail assembly detail

Key Features

  • 250g-class lightweight micro fixed-wing UAV for portable deployment
  • Compact 320 x 170 x 60 mm airframe with 320 mm wingspan
  • Up to 30 km control radius with GNSS high-precision navigation
  • 54 km/h standard cruise speed and up to 70 km/h maximum speed
  • 25 min flight endurance under typical 230 g takeoff weight
  • Carbon fiber airframe with brushless high-efficiency motor
  • Hand-launched takeoff with touchdown landing and autonomous flight support
  • Suitable for reconnaissance, surveillance, security monitoring, and field observation

Product Overview

The Type 1 Micro Fixed-Wing UAV is a lightweight and portable fixed-wing drone platform designed for reconnaissance, surveillance, and field monitoring applications. With a compact airframe size of 320 x 170 x 60 mm, a 250 g maximum takeoff weight, and a carbon fiber body, it is suitable for customers who need a micro UAV solution that is easy to transport, deploy, and operate in field environments. The platform supports a cruise speed of 54 km/h, a maximum speed of 70 km/h, and flight endurance of up to 25 minutes under typical takeoff weight conditions. With GNSS high-precision navigation, approximately 30 km control radius, hand-launched takeoff, and multiple flight modes including manual, GPS fixed-point, and autonomous flight, the Type 1 offers a practical micro fixed-wing UAV solution for professional B2B users.

Request a Quote

Technical Specifications

Basic Dimensions & Weight
Overall Dimensions
320 x 170 x 60 mm
Maximum Takeoff Weight
250 g
Maximum Working Payload
30 g
Standard Mission Payload
10 g (recommended ≤ 20 g)
Wingspan
320 mm
Flight Performance
Cruise Speed
Standard 54 km/h; maximum 70 km/h
Endurance
25 min (at 230 g takeoff weight)
Mission Flight Altitude
Recommended < 1000 m
Maximum Operational Altitude
Recommended below 3000 m based on communication environment; higher altitude requires optional high-altitude power system and propeller configuration
Wind Resistance Level
≤ Level 5
Powertrain & Structure
Propeller
3-inch reinforced nylon composite straight propeller
Airframe Material
Carbon fiber airframe
Motor Type
Brushless high-efficiency traction motor
Power Battery
1800 mAh high-energy-density lithium battery
Control & Navigation
Navigation Method
GNSS high-precision navigation and positioning
Control Radius
Approx. 30 km
Takeoff & Landing
Hand launch, touchdown skid landing, fully autonomous takeoff and landing
Supported Flight Modes
Manual, GPS fixed-point, autonomous flight

Related Products

Explore related products in the Defense & Tactical UAVs range to compare deployment form factors, response methods, and system integration options for similar project requirements.

Explore Related Categories

Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.

Defense & Tactical UAVs

Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.

Agriculture UAV Drones

Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.

Counter-Drone Systems

Counter-drone systems for airports, critical infrastructure, industrial facilities, and public security projects, covering detection, tracking, identification, and authorized response workflows.

Firefighting Drones

Firefighting drones for thermal monitoring, hotspot detection, scene visibility, and emergency-response support across wildfire, urban, and industrial fire operations.

FPV Drones

FPV drones for training, testing, custom integration, and configurable first-person flight projects with low-latency control and flexible setup options.

Frequently Asked Questions

What is the Type 1 Micro Fixed-Wing UAV?

The Type 1 Micro Fixed-Wing UAV is a lightweight and portable fixed-wing drone platform designed for reconnaissance, surveillance, field monitoring, and professional B2B applications. With a compact body size of 320 × 170 × 60 mm, a maximum takeoff weight of 250 g, GNSS high-precision navigation, and approximately 30 km control radius, it is suitable for customers who need a small, easy-to-deploy micro UAV solution for field operation scenarios.

What category does the Type 1 UAV belong to?

The Type 1 belongs to the category of Micro Fixed-Wing UAVs and Micro Reconnaissance UAVs. Unlike multirotor drones, its fixed-wing design provides better flight efficiency and longer forward-flight performance in a compact airframe. It is more suitable for lightweight reconnaissance, field observation, and portable monitoring tasks.

What are the main applications of the Type 1 Micro Fixed-Wing UAV?

The Type 1 Micro Fixed-Wing UAV is suitable for professional field applications such as reconnaissance and surveillance, field monitoring, perimeter observation, security patrol support, training and demonstration, lightweight UAV research, portable mission deployment, and short-duration observation tasks. It is especially useful for customers who need a portable fixed-wing drone with lightweight structure, fast deployment, and GNSS navigation capability.

What are the key flight specifications of the Type 1 UAV?

The Type 1 UAV has a standard cruise speed of 54 km/h and a maximum flight speed of 70 km/h. Under typical takeoff weight conditions of around 230 g, it can achieve approximately 25 minutes of flight endurance. The recommended mission flight altitude is below 1000 m, and the maximum operating altitude can be below 3000 m, depending on communication environment, propulsion configuration, and propeller selection.

What is the payload capacity of the Type 1 UAV?

The Type 1 Micro Fixed-Wing UAV supports a maximum working payload of 30 g. The standard mission payload is 10 g, and we recommend keeping the payload below 20 g for better flight stability and endurance. For B2B projects, payload configuration should be confirmed based on the intended application, payload weight, mounting method, power requirements, and flight performance expectations.

What navigation and flight modes does the Type 1 UAV support?

The Type 1 UAV supports GNSS high-precision navigation and positioning, with a control radius of approximately 30 km. It supports multiple flight modes, including manual flight, GPS fixed-point flight, and autonomous flight. The UAV also supports hand-launched takeoff, touchdown landing, and autonomous flight operation depending on system configuration and mission requirements.

What materials and power system does the Type 1 UAV use?

The Type 1 Micro Fixed-Wing UAV uses a carbon fiber airframe, which helps reduce weight while maintaining structural strength. Its power system includes a brushless high-efficiency high-thrust motor, a 3-inch reinforced nylon composite propeller, and an 1800 mAh high-energy-density lithium battery. This configuration supports stable flight performance in a compact micro UAV platform.

What trade terms do you support for international orders?

For international B2B orders, we currently support FOB and CIF trade terms only. FOB means the buyer arranges international freight after the goods are delivered to the agreed port of shipment. CIF means we arrange freight and insurance to the agreed destination port. At this stage, we do not support DDP, DAP, EXW, or door-to-door delivery terms. For an accurate quotation, please provide your destination port, order quantity, required configuration, payload requirements, and any customization needs.
