Type 11 Heavy-Lift Unmanned Helicopter

A gas-powered heavy-lift unmanned helicopter with 70 kg maximum takeoff weight, 30 kg payload capacity, 50 km control radius, and 3500 m altitude capability for defense, tactical, and specialized field operation scenarios.

Type 11 heavy-lift unmanned helicopter main product image

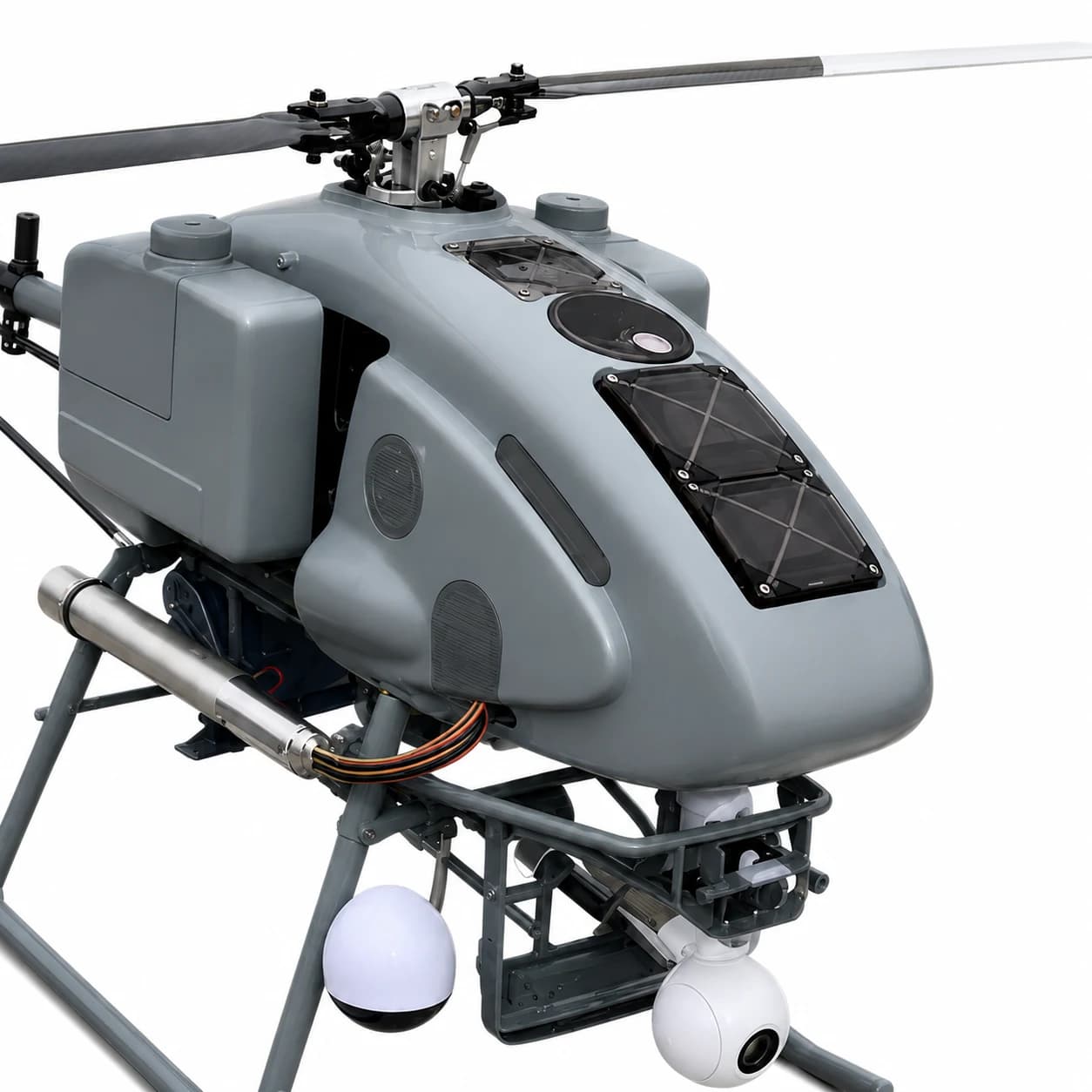

Type 11 heavy-lift unmanned helicopter fuselage detail

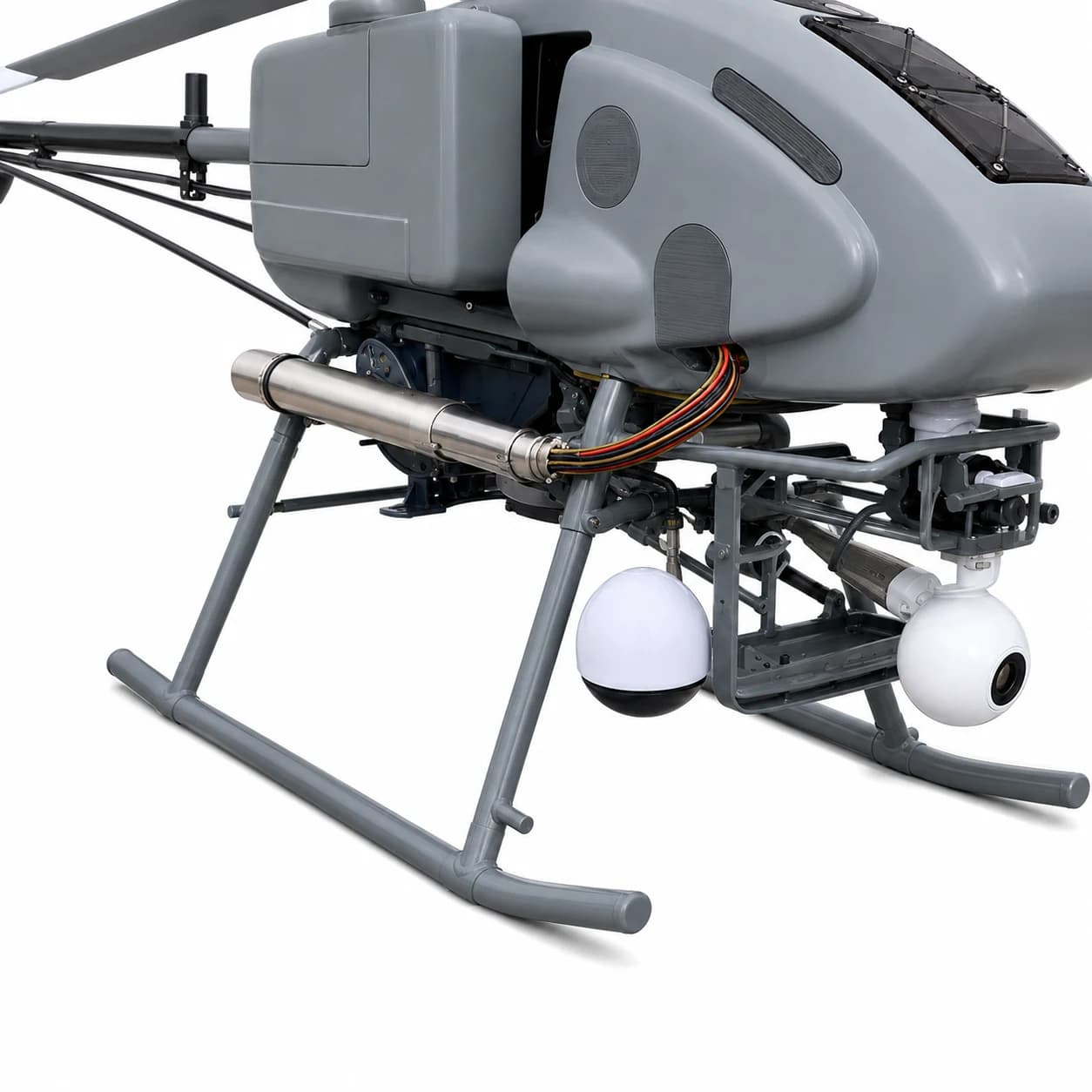

Type 11 heavy-lift unmanned helicopter landing gear underside detail

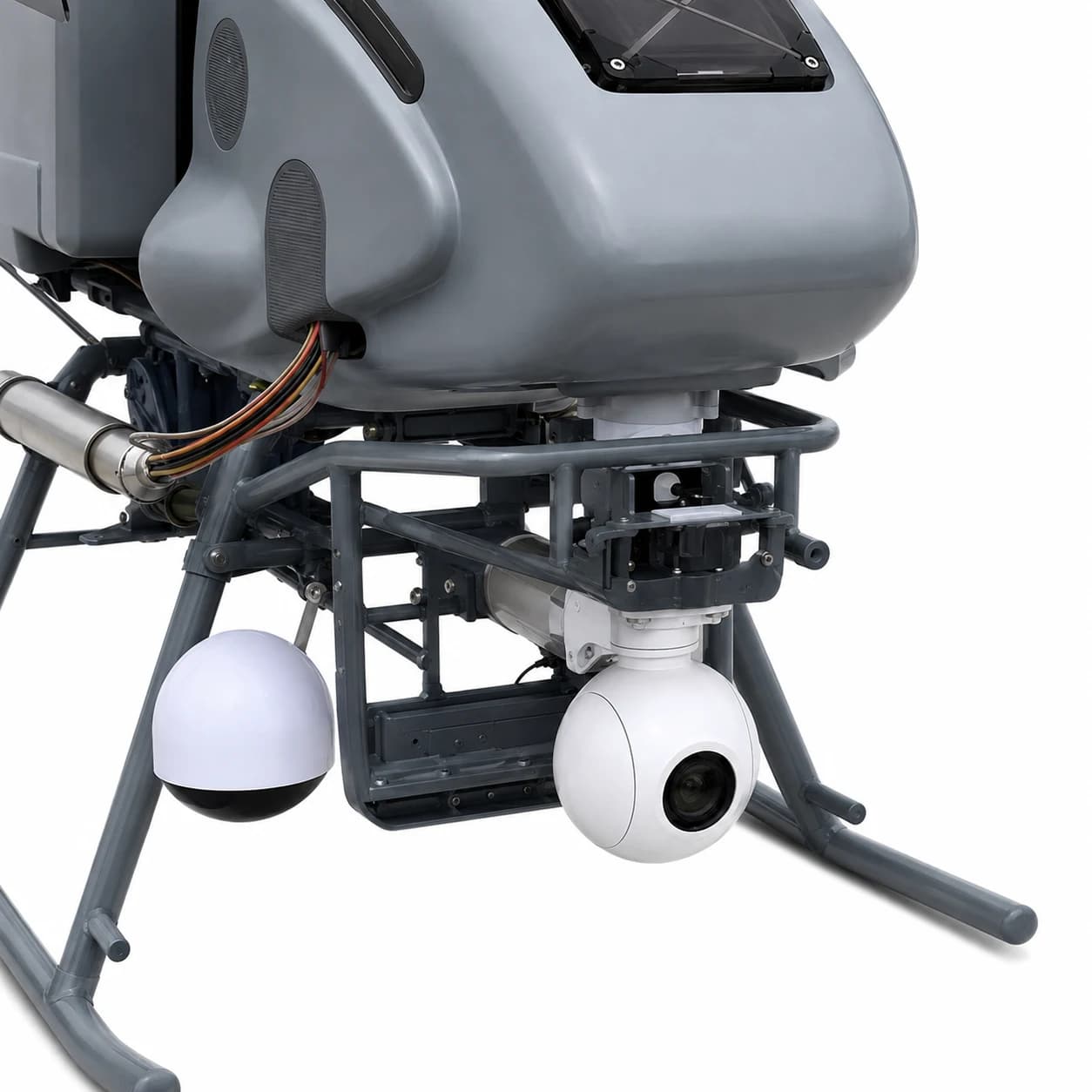

Type 11 heavy-lift unmanned helicopter sensor gimbal detail

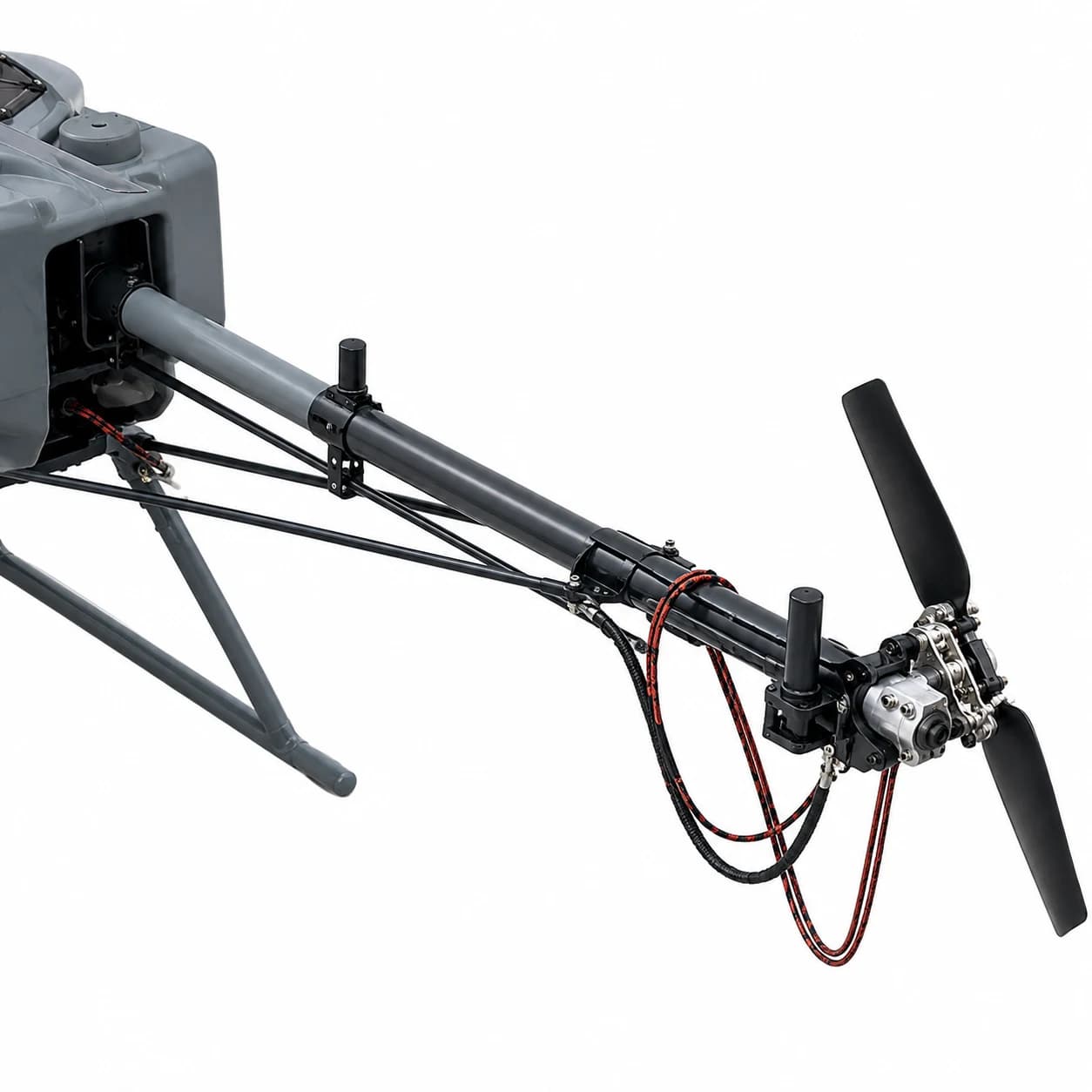

Type 11 heavy-lift unmanned helicopter tail rotor detail

Key Features

  • Heavy-lift unmanned helicopter with 70 kg maximum takeoff weight
  • 30 kg maximum payload capacity for mission-focused configuration
  • Gas-powered rotary-wing UAV platform with two-stroke opposed twin-cylinder engine
  • 2.68 m main rotor diameter and 470 mm tail rotor diameter
  • 30 m/s maximum flight speed under standard operating conditions
  • 5-50 km control radius for flexible field operation scenarios
  • 3500 m maximum altitude capability under light-load conditions
  • 16.8 L external fuel tank with fuel consumption data for empty-load and loaded operation
  • CDI electronic ignition and electric start for practical field deployment
  • -20°C to +50°C operating temperature range

Product Overview

The Type 11 Heavy-Lift Unmanned Helicopter is a gas-powered rotary-wing UAV platform designed for professional B2B users who require strong payload capacity, stable hovering performance, and flexible field deployment. With a conventional helicopter layout, 2.68 m main rotor diameter, and 70 kg maximum takeoff weight, it is suitable for customers looking for a heavy-lift unmanned helicopter instead of a multirotor or fixed-wing UAV. The system supports a maximum payload of 30 kg, a control radius of 5-50 km, a maximum speed of 30 m/s, and an altitude capability of up to 3500 m under specified conditions. Powered by a two-stroke opposed twin-cylinder engine with CDI electronic ignition and electric start, the Type 11 provides a practical gas-powered UAV solution for defense, tactical, and specialized mission requirements.

Request a Quote

Technical Specifications

Dimensions
Overall Dimensions (excluding main rotor)
2300 x 820 x 930 mm (L x W x H)
Main Rotor Diameter
2680 mm
Tail Rotor Diameter
470 mm
Weight & Payload
Empty Weight
36 kg (excluding fuel)
Maximum Takeoff Weight
70 kg (sea level, ambient temperature 20°C, no wind)
Maximum Payload
30 kg (including fuel, sea level)
Flight Performance
Maximum Flight Speed
30 m/s (sea level, ambient temperature 20°C)
Maximum Operational Altitude
3500 m (empty load, low fuel level)
Control & Fuel
Control Radius
5-50 km
Fuel Capacity
External fuel tank 16.8 L
Fuel Consumption (Empty Load)
41.6 ml/min (sea level, ambient temperature 20°C)
Fuel Consumption (Full Load)
83.3 ml/min (mission payload 20 kg, sea level, ambient temperature 20°C)
Environmental Adaptability
Operating Temperature
-20°C to 50°C
Power System
Engine Type
Two-stroke horizontally opposed twin-cylinder engine
Displacement
170 cc
Ignition Method
CDI electronic ignition
Start Method
Electric start

Related Products

Explore related products in the Defense & Tactical UAVs range to compare deployment form factors, response methods, and system integration options for similar project requirements.

Explore Related Categories

Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.

Defense & Tactical UAVs

Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.

Heavy-Lift Cargo UAVs

Heavy-lift cargo UAVs for industrial logistics, remote delivery, and mission-based aerial transport across construction, energy, emergency, and field operations.

Agriculture UAV Drones

Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.

Counter-Drone Systems

Counter-drone systems for airports, critical infrastructure, industrial facilities, and public security projects, covering detection, tracking, identification, and authorized response workflows.

Firefighting Drones

Firefighting drones for thermal monitoring, hotspot detection, scene visibility, and emergency-response support across wildfire, urban, and industrial fire operations.

Frequently Asked Questions

What is the Type 11 Heavy-Lift Unmanned Helicopter?

The Type 11 Heavy-Lift Unmanned Helicopter is a gas-powered rotary-wing UAV platform designed for professional B2B users who require strong payload capacity, stable hovering capability, and flexible field deployment. With a maximum takeoff weight of 70 kg, a maximum payload capacity of 30 kg, and a control radius of 5-50 km, the Type 11 is suitable for customers looking for a heavy-lift unmanned helicopter, gas-powered UAV, or rotary-wing UAV platform for specialized field operation scenarios.

What category does the Type 11 UAV belong to?

The Type 11 belongs to the category of Rotary-Wing UAVs and Heavy-Lift Unmanned Helicopters. Unlike fixed-wing UAVs, the Type 11 can take off and land vertically and maintain stable hovering during operation. Compared with many multirotor drones, its gas-powered helicopter structure provides stronger payload capability and longer operating flexibility for professional applications.

What are the main applications of the Type 11 Heavy-Lift Unmanned Helicopter?

The Type 11 Heavy-Lift Unmanned Helicopter is suitable for professional field applications that require payload capacity, hovering stability, and flexible operation. Typical application scenarios include heavy payload transport, field operation support, aerial monitoring, emergency response support, equipment carrying missions, security and perimeter observation, tactical field deployment, and specialized payload integration. For B2B customers, the platform can be configured according to different project requirements, payload types, operating environments, and control system needs.

What are the key specifications of the Type 11 UAV?

The Type 11 has an overall size of 2300 × 820 × 930 mm, excluding the main rotor. It features a 2680 mm main rotor diameter and a 470 mm tail rotor diameter. Its empty takeoff weight is 36 kg excluding fuel, while the maximum takeoff weight is 70 kg under specified conditions. The maximum payload capacity is 30 kg including fuel, making it suitable for customers who require a compact but capable heavy-lift UAV platform.

What is the payload capacity of the Type 11 Unmanned Helicopter?

The Type 11 supports a maximum payload capacity of 30 kg, including fuel under sea-level operating conditions. Payload configuration can be customized depending on the customer application, including mission modules, monitoring equipment, transport containers, communication devices, or other project-specific payload systems. For accurate configuration, customers should confirm the payload weight, mounting method, power requirements, and operating scenario before quotation.

What propulsion system does the Type 11 UAV use?

The Type 11 is powered by a two-stroke opposed twin-cylinder engine with a displacement of 1700 cc. It uses CDI electronic ignition and supports electric start for practical field deployment. Compared with battery-powered UAVs, a gas-powered UAV platform can provide stronger payload performance and operational flexibility for heavy-lift applications. The Type 11 also includes a 16.8 L external fuel tank, with fuel consumption depending on payload weight and operating conditions.

What is the flight performance and operating range of the Type 11 UAV?

The Type 11 Heavy-Lift Unmanned Helicopter supports a maximum flight speed of 30 m/s under sea-level conditions at 20°C. Its maximum altitude capability can reach 3500 m under empty-load and light-fuel conditions. The control radius is 5-50 km, depending on communication configuration, terrain, antenna setup, operating environment, and mission requirements. The system supports an operating temperature range from -20°C to +50°C, making it suitable for a wide range of field environments.
