Type 16 Coaxial Rotor Tactical UAV

A compact coaxial rotor tactical UAV with 120 km range, 60 min endurance, 2 kg mission payload, 30 km communication distance, and foldable airframe design for defense reconnaissance, surveillance, and field operation scenarios.

Type 16 coaxial rotor tactical UAV main product image

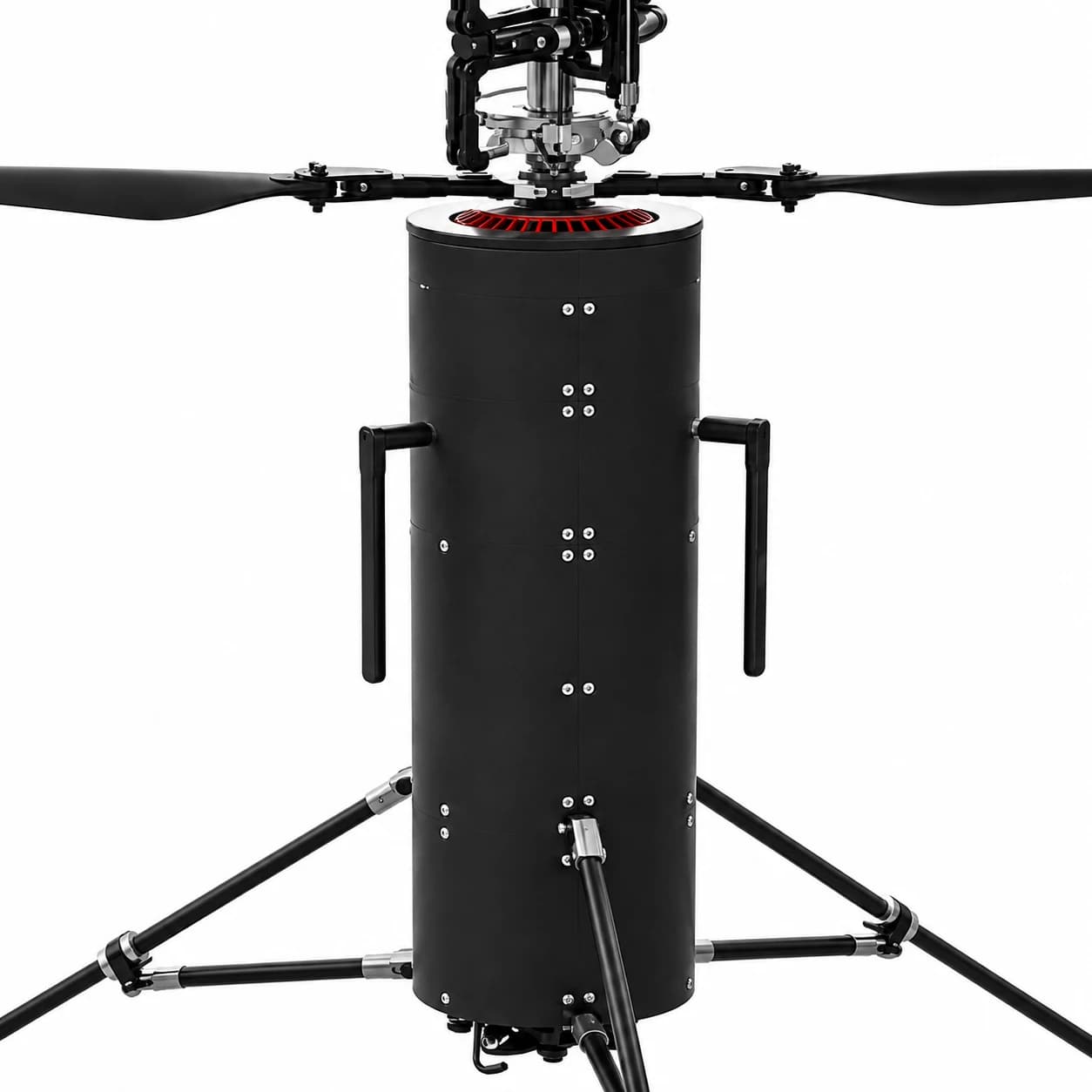

Type 16 coaxial rotor tactical UAV body detail

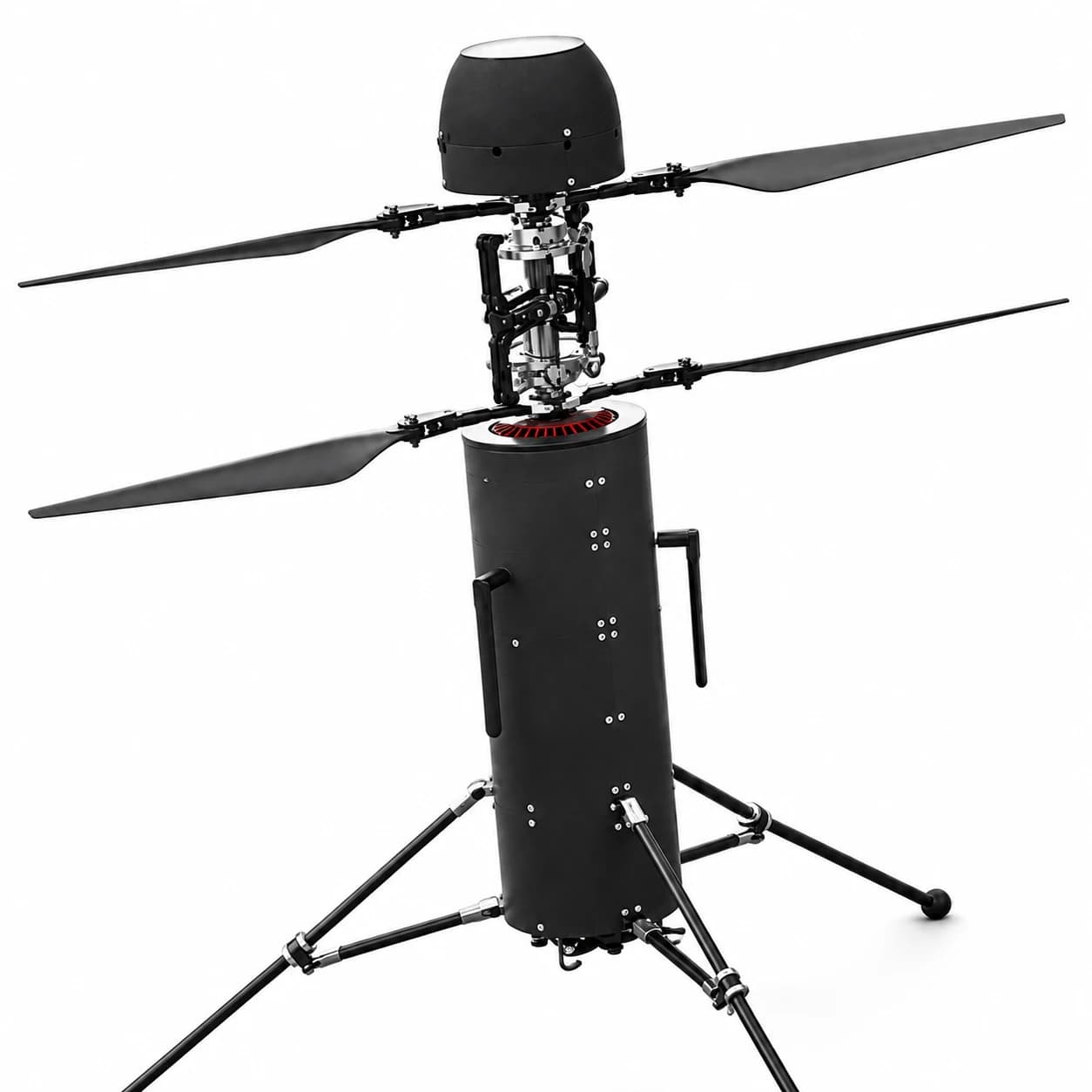

Type 16 coaxial rotor tactical UAV full structure detail

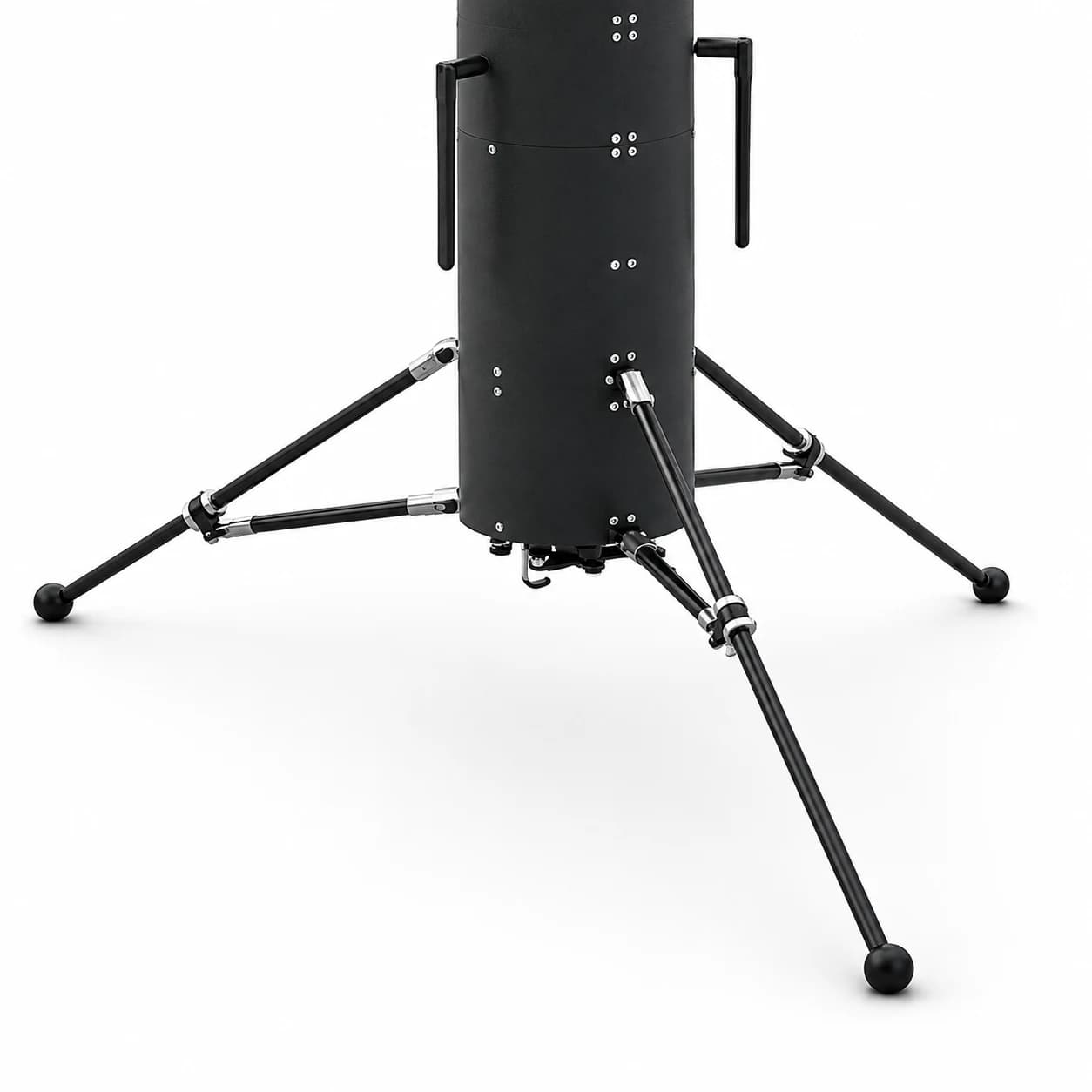

Type 16 coaxial rotor tactical UAV landing gear detail

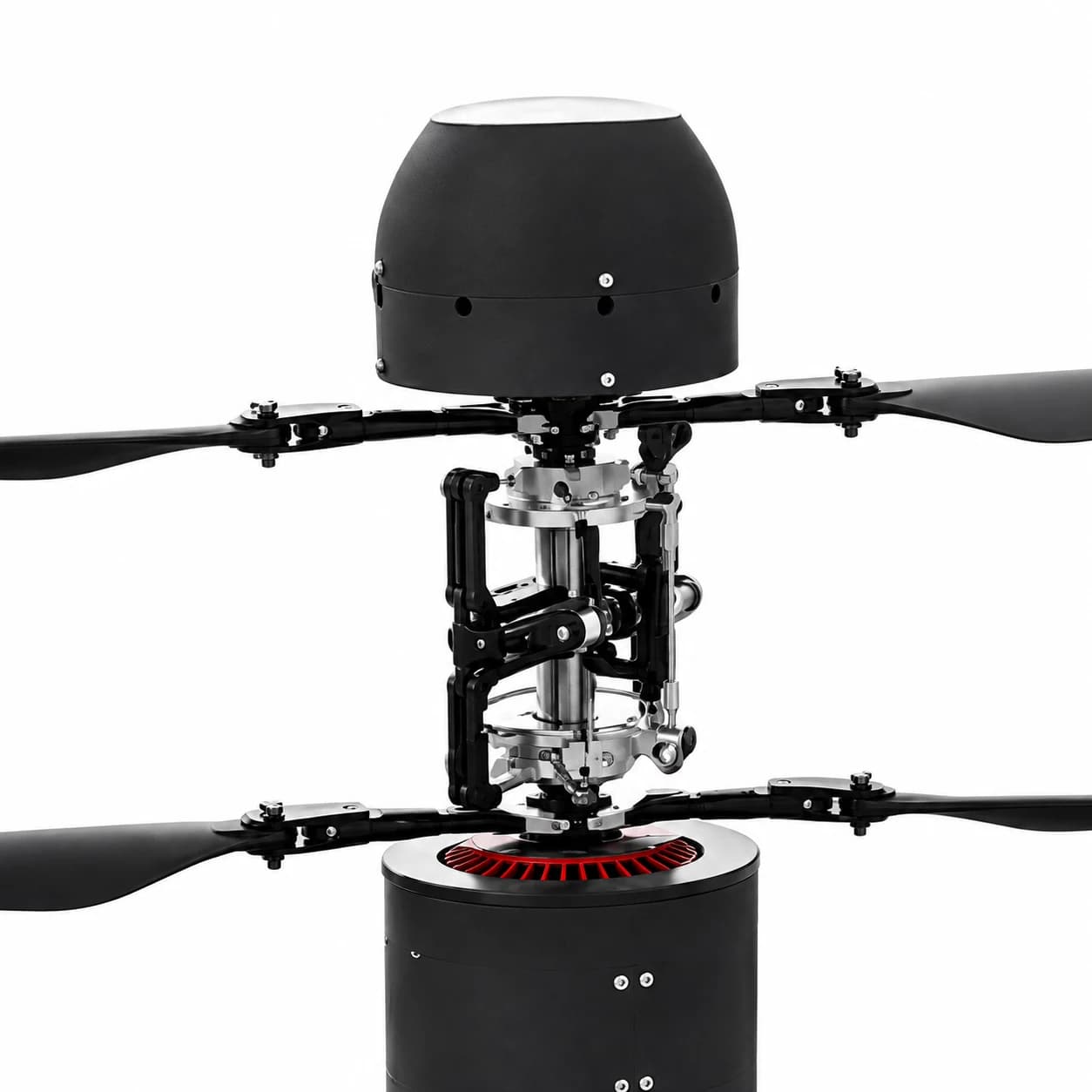

Type 16 coaxial rotor tactical UAV rotor system detail

Key Features

  • Coaxial rotor tactical UAV designed for compact defense applications
  • Vertical takeoff and landing capability for flexible field deployment
  • 5 kg maximum takeoff weight with 2 kg mission payload capacity
  • 120 km or above maximum range for extended mission coverage
  • 60 min or above flight endurance depending on payload and mission profile
  • 30 km or above communication distance for field operation scenarios
  • 140-160 km/h maximum flight speed for fast-response deployment
  • 100-3000 m operating altitude range for different mission environments
  • Foldable airframe design with folded diameter below 180 mm and folded length below 1800 mm
  • -20°C to +50°C operating temperature range for outdoor field use

Product Overview

The Type 16 Coaxial Rotor Tactical UAV is a compact defense UAV platform designed for field operation, reconnaissance, surveillance, and mission-focused deployment. Its coaxial rotor configuration supports vertical takeoff and landing capability, while the foldable airframe design improves transportation, storage, and deployment efficiency. With a maximum takeoff weight of 5 kg, a mission payload capacity of 2 kg or above, a maximum range of 120 km or above, and endurance of 60 minutes or above, the Type 16 provides a practical balance between portability, payload capability, flight range, and tactical deployment flexibility. The system is suitable for professional B2B users who require a compact coaxial rotor UAV for defense and specialized field operation scenarios.

Request a Quote

Technical Specifications

Core Performance Indicators
Maximum Takeoff Weight
5 kg
Maximum Flight Speed
140-160 km/h
Maximum Range
≥ 120 km
Operating Altitude
100-3000 m
Endurance
≥ 60 min
Communication Distance
≥ 30 km
Mission Payload
≥ 2 kg
Dimensions
Airframe Length (excluding motor)
≥ 1300 mm
Wingspan
≥ 1800 mm
Maximum Folded Diameter
≤ 180 mm
Maximum Folded Length
≤ 1800 mm
Environmental Adaptability
Operating Temperature
-20°C to +50°C
Storage Temperature
-10°C to +70°C
Relative Humidity
≤ 70%

Related Products

Explore related products in the Defense & Tactical UAVs range to compare deployment form factors, response methods, and system integration options for similar project requirements.

Explore Related Categories

Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.

Defense & Tactical UAVs

Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.

Agriculture UAV Drones

Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.

Counter-Drone Systems

Counter-drone systems for airports, critical infrastructure, industrial facilities, and public security projects, covering detection, tracking, identification, and authorized response workflows.

Firefighting Drones

Firefighting drones for thermal monitoring, hotspot detection, scene visibility, and emergency-response support across wildfire, urban, and industrial fire operations.

FPV Drones

FPV drones for training, testing, custom integration, and configurable first-person flight projects with low-latency control and flexible setup options.

Frequently Asked Questions

What is the Type 16 Coaxial Rotor Tactical UAV?

The Type 16 Coaxial Rotor Tactical UAV is a compact unmanned aerial vehicle designed for professional defense, reconnaissance, surveillance, and field operation scenarios. Its coaxial rotor configuration supports vertical takeoff and landing, while its foldable airframe design improves portability, storage efficiency, and field deployment flexibility. With a maximum range of 120 km or above, endurance of 60 minutes or above, and mission payload capacity of 2 kg or above, the Type 16 is suitable for B2B customers looking for a compact coaxial rotor UAV, tactical UAV, or vertical takeoff UAV platform.

What category does the Type 16 UAV belong to?

The Type 16 belongs to the category of Defense & Tactical UAVs, with a more specific classification under Coaxial Rotor UAVs. Unlike conventional fixed-wing UAVs, the Type 16 supports vertical takeoff and landing. Compared with ordinary multirotor drones, its coaxial rotor structure provides a more compact layout and mission-focused design for field deployment.

What are the main applications of the Type 16 Coaxial Rotor Tactical UAV?

The Type 16 Coaxial Rotor Tactical UAV is suitable for professional B2B and defense-related applications, including reconnaissance, surveillance, field monitoring, perimeter observation, security patrol support, and mission-focused field deployment. Its compact size, vertical takeoff capability, foldable structure, and 2 kg mission payload capacity make it suitable for customers who need a portable UAV platform for flexible operation in different outdoor environments.

What are the key performance specifications of the Type 16 UAV?

The Type 16 has a maximum takeoff weight of 5 kg and supports a mission payload of 2 kg or above. It offers a maximum flight speed of 140-160 km/h, a maximum range of 120 km or above, and endurance of 60 minutes or above, depending on payload, flight profile, altitude, and environmental conditions. The UAV supports an operating altitude range of 100-3000 m and a communication distance of 30 km or above, making it a practical compact tactical UAV platform for professional field applications.

What makes the Type 16 different from common multirotor drones?

The Type 16 uses a coaxial rotor configuration, which gives it a compact structure and vertical takeoff capability. This makes it different from common quadcopters or larger multirotor platforms. Its foldable design also helps reduce storage volume and improve transportation convenience. With a folded diameter of 180 mm or below and a folded length of 1800 mm or below, the Type 16 is suitable for customers who need a UAV platform that is easier to carry, deploy, and store in field operation scenarios.

Can the Type 16 UAV support payload customization?

Yes. The Type 16 UAV supports a mission payload of 2 kg or above, and the payload configuration can be customized according to customer requirements. Depending on the application, the UAV platform can support different mission modules, communication devices, sensor systems, monitoring equipment, or customer-specific payload interfaces. For B2B projects, we recommend confirming the payload type, payload weight, installation method, and operating scenario before quotation.

What operating environments can the Type 16 UAV support?

The Type 16 Coaxial Rotor Tactical UAV is designed for outdoor field operation environments. It supports an operating temperature range from -20°C to +50°C, a storage temperature range from -10°C to +70°C, and relative humidity of 70% or below. Actual performance may vary depending on payload configuration, wind conditions, altitude, communication environment, and mission profile. Customers can provide their operating environment and application requirements so that we can recommend a suitable configuration.
