5-Inch High-Speed FPV Drone
The 5-Inch High-Speed FPV Drone is a compact 6S FPV UAV platform designed for high-speed flight training, system testing, custom FPV integration, and professional UAV development projects. With an F405 V3 flight controller, 60A 4-in-1 ESC, 2207 1960KV motors, optional 5.8G video transmission, and maximum flight speed up to 300 km/h, it provides a fast, responsive, and customizable FPV platform for B2B users.
Key Features
- Compact 5-inch FPV frame for agile and high-speed flight
- Maximum flight speed up to 300 km/h
- 6S power system for strong acceleration and quick response
- F405 V3 flight controller for stable FPV control
- 60A 4-in-1 ESC for high-power motor output
- 2207 1960KV motors matched with 51466 propellers
- Optional 5.8G 2.5W video transmission system
- ELRS915 receiver configuration for long-range control
- TM01-Solo (Basic Version) AI module option
- Suitable for training, testing, demonstration, and custom FPV integration projects
Product Overview
The platform is suitable for buyers who need a compact, high-response FPV UAV for training, testing, demonstration, and custom integration. Its 5-inch rocket-style frame, 6S power architecture, and matched propulsion setup support agile operation and high-speed flight characteristics. This model is supplied without battery and remote controller, allowing system integrators and distributors to configure batteries, controllers, video transmission modules, and accessories according to project requirements. It is suitable for UAV training providers, FPV developers, and integration teams requiring flexible hardware configuration. For project customization, options can include video transmission power level, receiver setup, AI module configuration, accessory combinations, and training support according to target scenarios.
Technical Specifications
Core Specifications
Product Name
5-Inch High-Speed FPV Drone
Frame

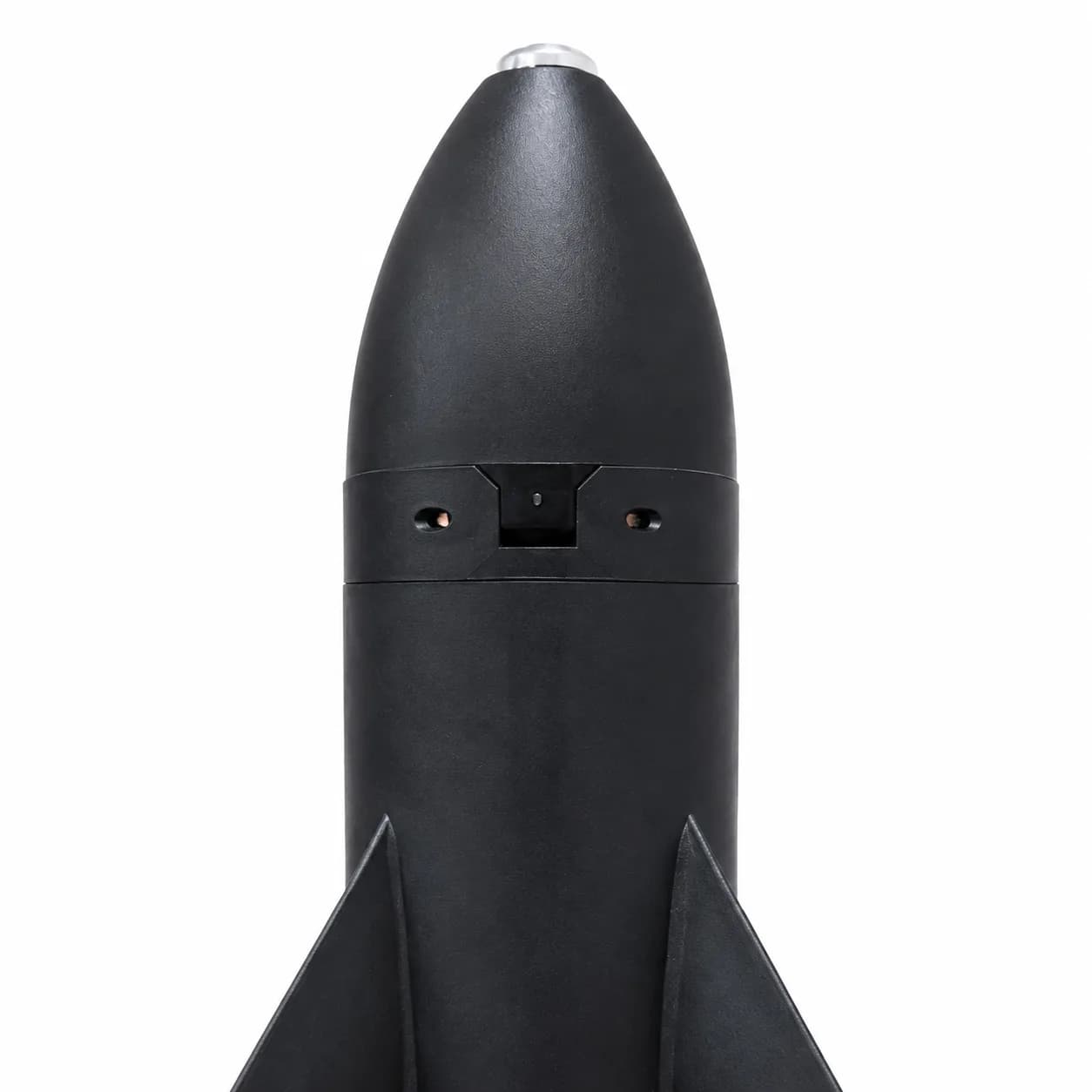

5-inch Rocket Frame
Flight Controller
F405 V3
ESC
60A ESC 4-in-1 6S
Video Transmission
5.8G 2.5W (Optional)
Antenna
5.8G 151mm 3.5dBi
AI Module
TM01-Solo (Basic Version)
Motors

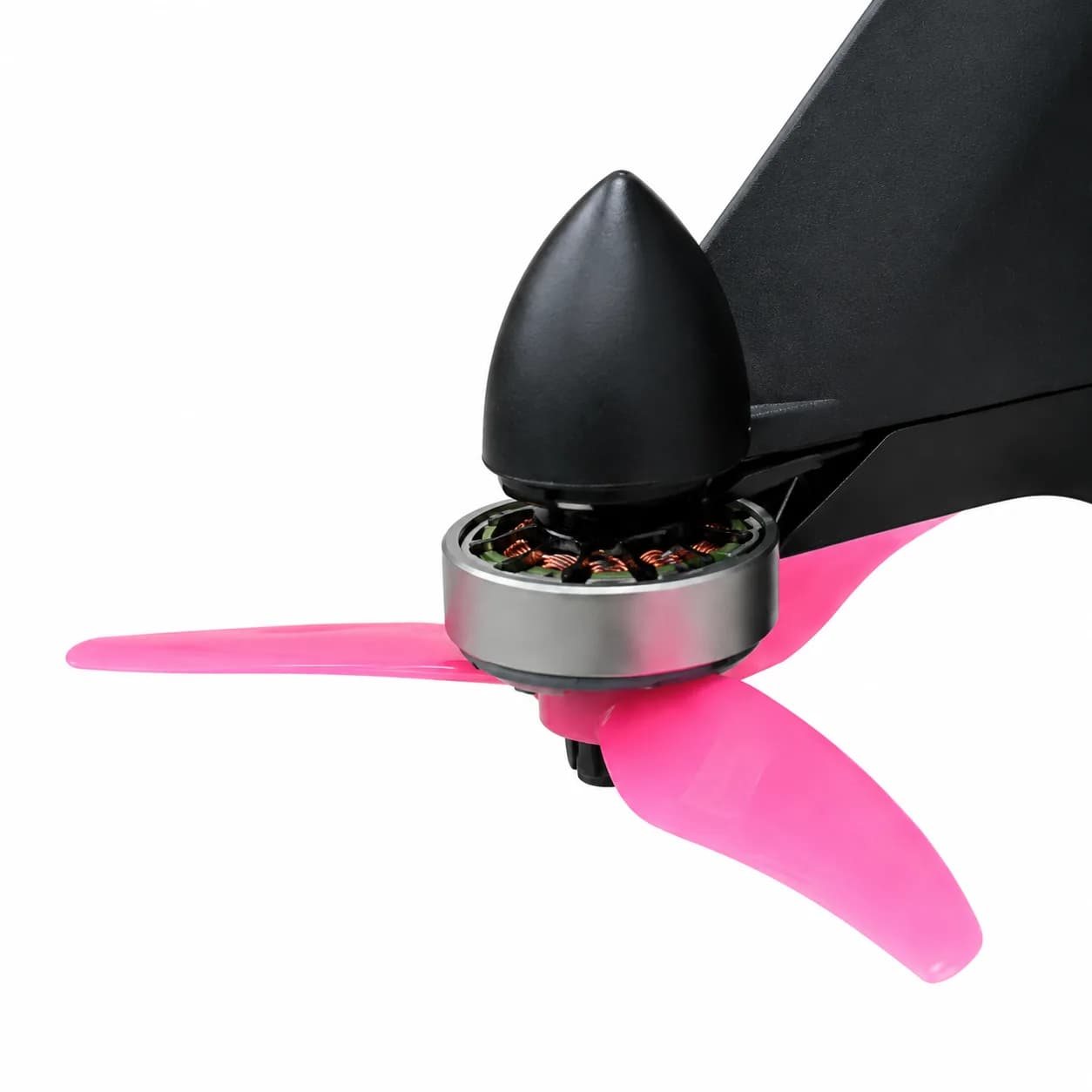

2207 1960KV Motors
Propellers

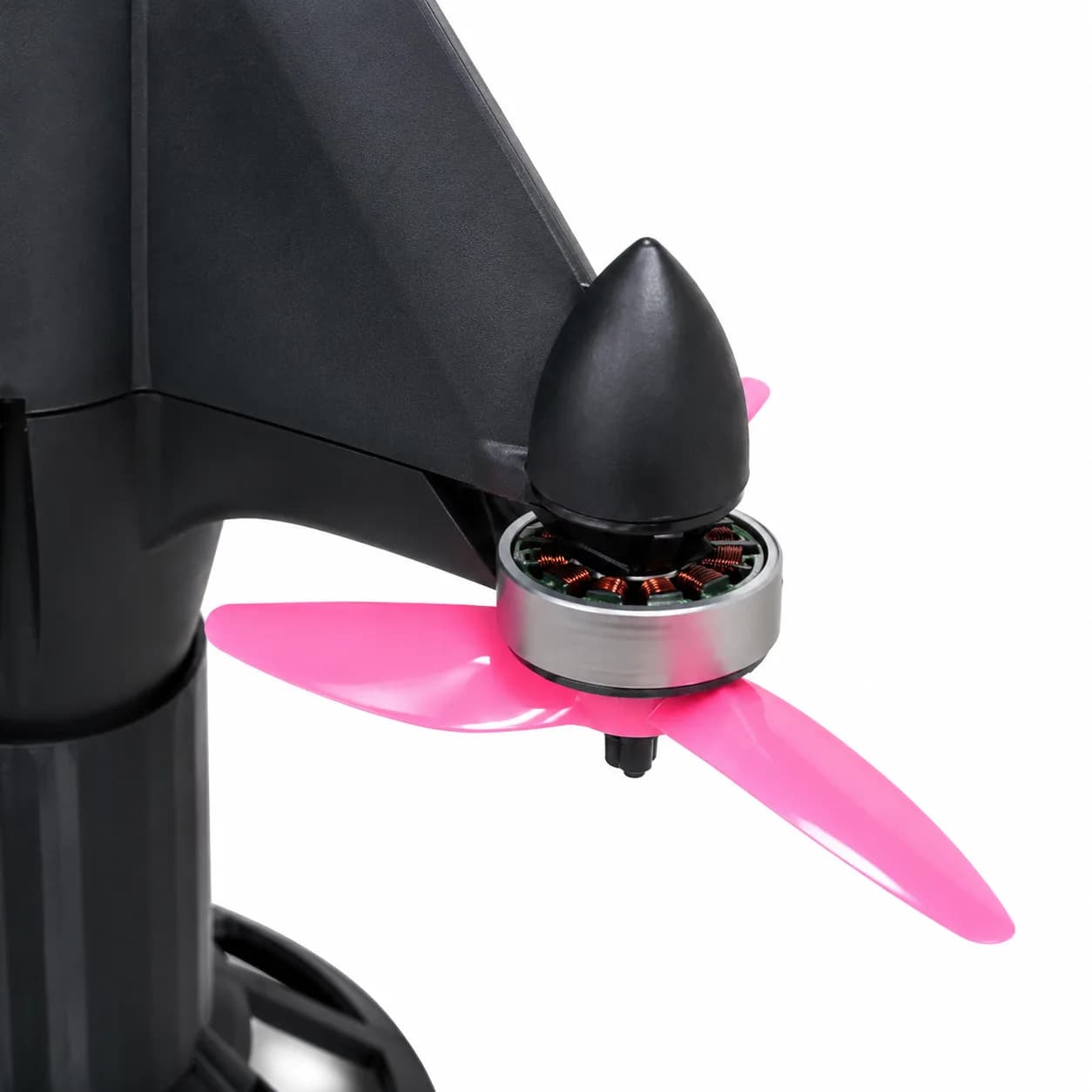

51466
Receiver
ELRS915
Maximum Flight Speed
300 km/h
Battery and Remote Controller
Not Included
Recommended Battery
110*34*47mm / 6S / 65C / 2200mAh
Related Products
Explore related products in the FPV Drones range to compare deployment form factors, response methods, and system integration options for similar project requirements.
Counter-Drone Systems
Heavy-Lift Cargo UAVsIY-240 Heavy-Lift Multirotor Cargo UAV
The IY-240 is a heavy-lift multirotor cargo UA...
168 kg Payload
Agriculture UAV Drones100L Agricultural Spraying Drone
The 100L Agricultural Spraying Drone is built...
100L Payload
Counter-Drone SystemsLM065 Multi-Function Radar
The LM065 Multi-Function Radar is designed for...
FPV DronesCustom FPV Drone Series
The Custom FPV Drone Series is designed for cu...
Defense & Tactical UAVsHY700 Foldable Fixed-Wing Reconnaissance UAV
A foldable electric fixed-wing reconnaissance...
3 kg Payload
Industrial Inspection UAVsHY1200 Compact Quadcopter Payload Delivery Drone
The HY1200 is a compact quadcopter payload del...
≥10 kg Payload
Counter-Drone SystemsPA450 Four-Side Phased Array Radar
The PA450 Four-Side Phased Array Radar is desi...
Explore Related Categories
Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.
FPV Drones
FPV drones for training, testing, custom integration, and configurable first-person flight projects with low-latency control and flexible setup options.
Counter-Drone Systems
Counter-drone systems for airports, critical infrastructure, industrial facilities, and public security projects, covering detection, tracking, identification, and authorized response workflows.
Heavy-Lift Cargo UAVs
Heavy-lift cargo UAVs for industrial logistics, remote delivery, and mission-based aerial transport across construction, energy, emergency, and field operations.
Agriculture UAV Drones
Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.
Defense & Tactical UAVs
Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.
Industrial Inspection UAVs
Industrial inspection UAVs for safer asset monitoring, faster data capture, and lower inspection downtime.
Frequently Asked Questions
What applications is the 5-Inch High-Speed FPV Drone suitable for?
The 5-Inch High-Speed FPV Drone is designed for professional FPV flight training, high-speed UAV testing, system integration, technical demonstration, and customized platform development. With a compact 5-inch frame, 6S power system, F405 V3 flight controller, 60A 4-in-1 ESC, 2207 1960KV motors, and up to 300 km/h speed, it fits B2B projects requiring a fast-response FPV platform for training, validation, and integration.
What is the maximum flight speed of this FPV drone?
The platform supports up to 300 km/h under suitable configuration and operating conditions. Actual speed depends on battery output, propeller setup, takeoff weight, tuning parameters, environment, and pilot control. For high-speed use, we recommend validating setup and safety requirements before operation.
Does the drone include battery and remote controller?
No. This model is supplied without battery and remote controller by default. The recommended battery specification is 6S / 65C / 2200 mAh (approximately 110*34*47 mm). For B2B orders, battery package, controller, charger, spare propellers, and accessories can be configured separately.
What video transmission and control system does it support?
The platform supports an optional 5.8G 2.5W video transmission system, a 5.8G 151 mm 3.5 dBi antenna, and ELRS receiver configuration. This setup is suitable for FPV flight, training, and validation scenarios. Actual communication performance depends on antenna placement, ground equipment, interference, terrain, and operating altitude.
Can the FPV drone be customized for different project requirements?
Yes. B2B customization can include flight controller setup, video transmission options, receiver type, AI module, antenna configuration, propeller selection, battery package, spare parts kit, frame color, packaging, and technical support. For accurate configuration, please provide use case, target speed, expected range, transmission requirements, control preferences, and quantity.
What is the AI module used for?
The drone can be equipped with a TM01-Solo AI module (basic version) depending on project requirements. It can support intelligent application development, testing, and custom UAV system integration. Final AI capability depends on software stack, sensor configuration, flight-control integration, and target functions.
What quality checks are performed before delivery?
Before delivery, units can be checked through frame inspection, flight controller verification, ESC and motor testing, propeller matching, receiver checks, video transmission inspection, antenna installation review, and functional tests. For customized B2B orders, additional inspection and configuration checks can be arranged according to project requirements.
What trade terms do you support for international orders?
For international B2B orders, we currently support FOB and CIF trade terms only. FOB means the buyer arranges international freight after delivery to the agreed port of shipment, while CIF includes freight and insurance to the agreed destination port. We currently do not support DDP, DAP, EXW, or door-to-door delivery terms.
