Products/Defense & Tactical UAVs

7D Tactical Reconnaissance VTOL Fixed-Wing UAV

The 7D Tactical Reconnaissance VTOL Fixed-Wing UAV is a heavy-class long-endurance platform designed for surveillance, mapping, and industrial inspection missions. It combines VTOL deployment flexibility with fixed-wing cruise efficiency for wide-area operations and high mission productivity.

7D tactical reconnaissance VTOL fixed-wing UAV main product image

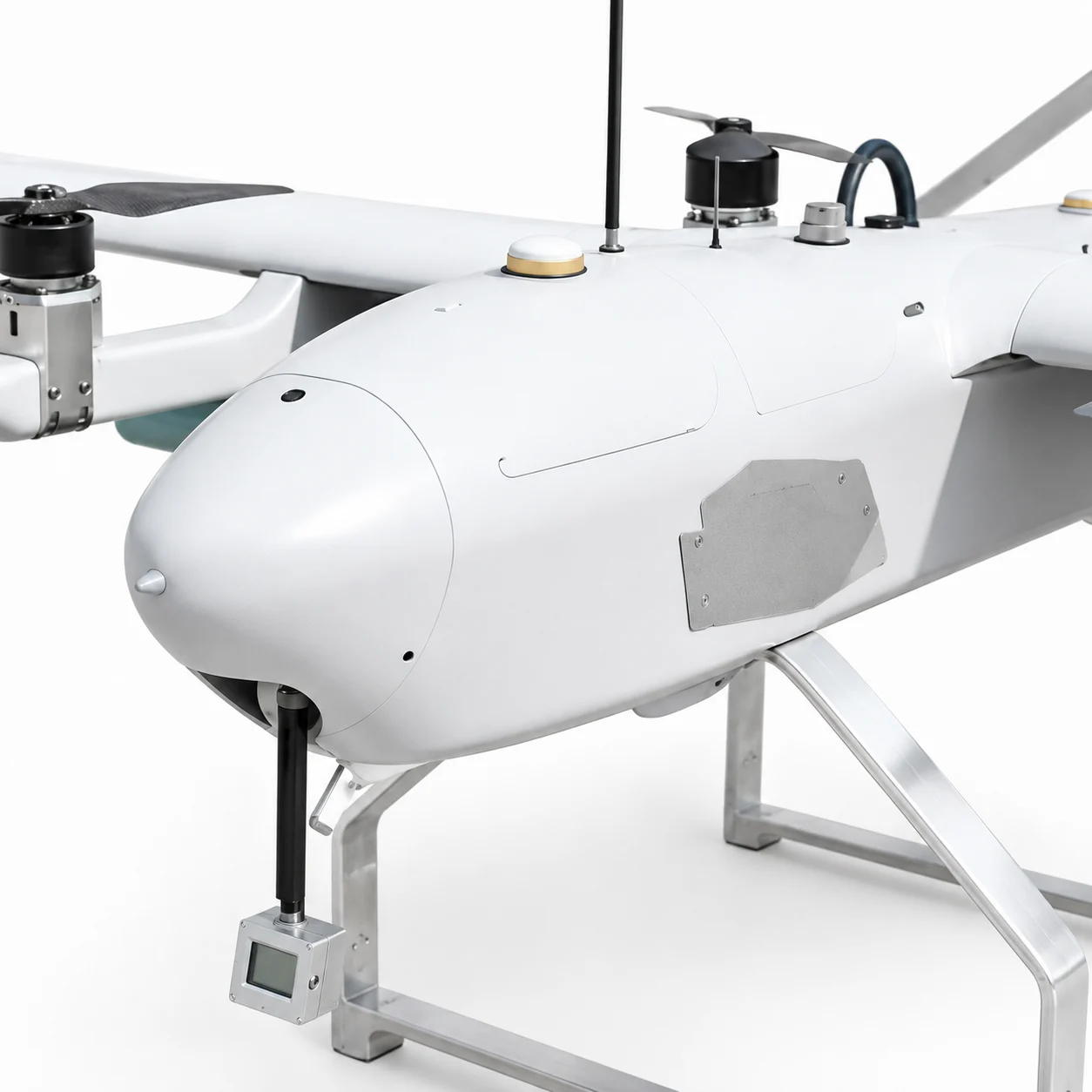

7D tactical reconnaissance VTOL fixed-wing UAV fuselage detail

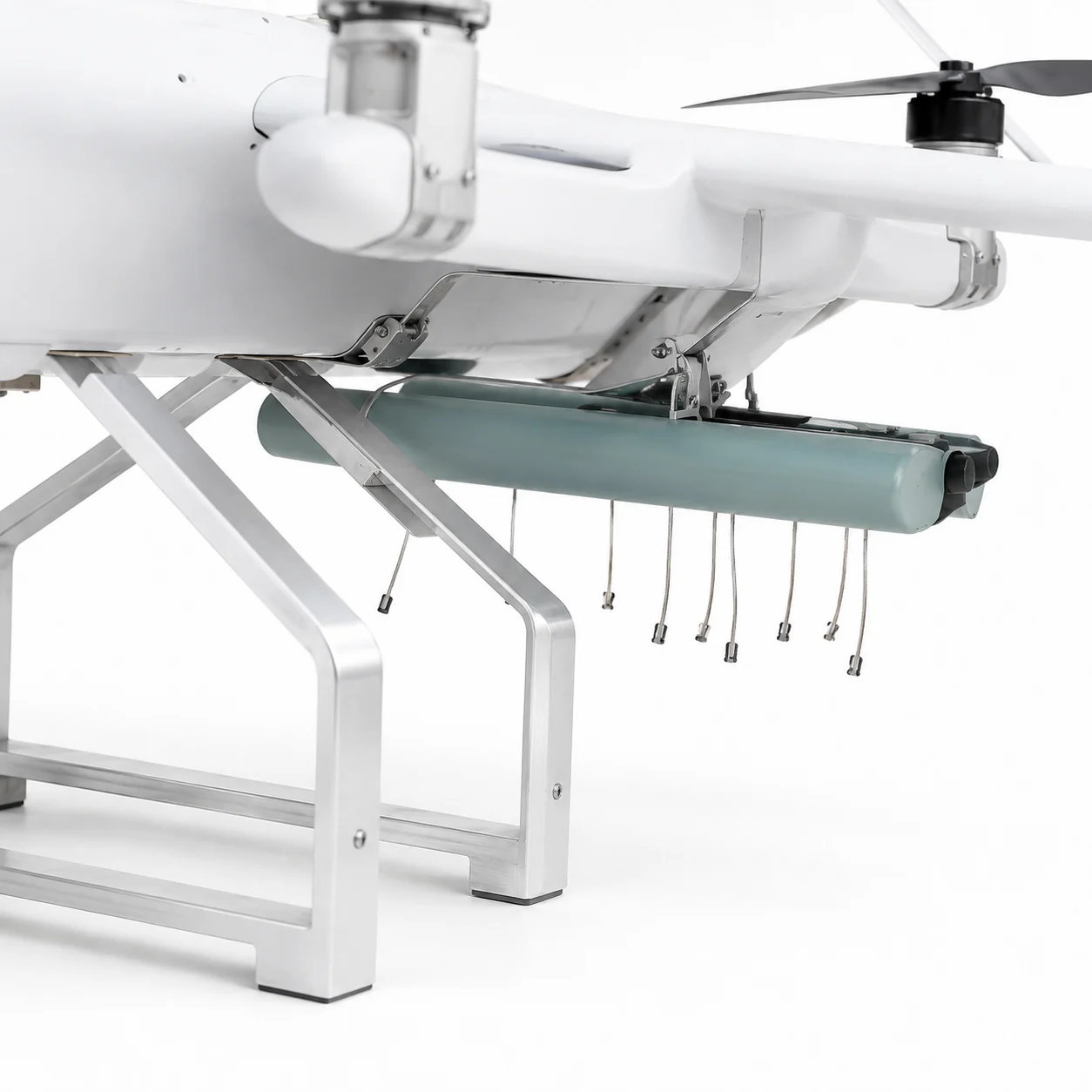

7D tactical reconnaissance VTOL fixed-wing UAV payload pod detail

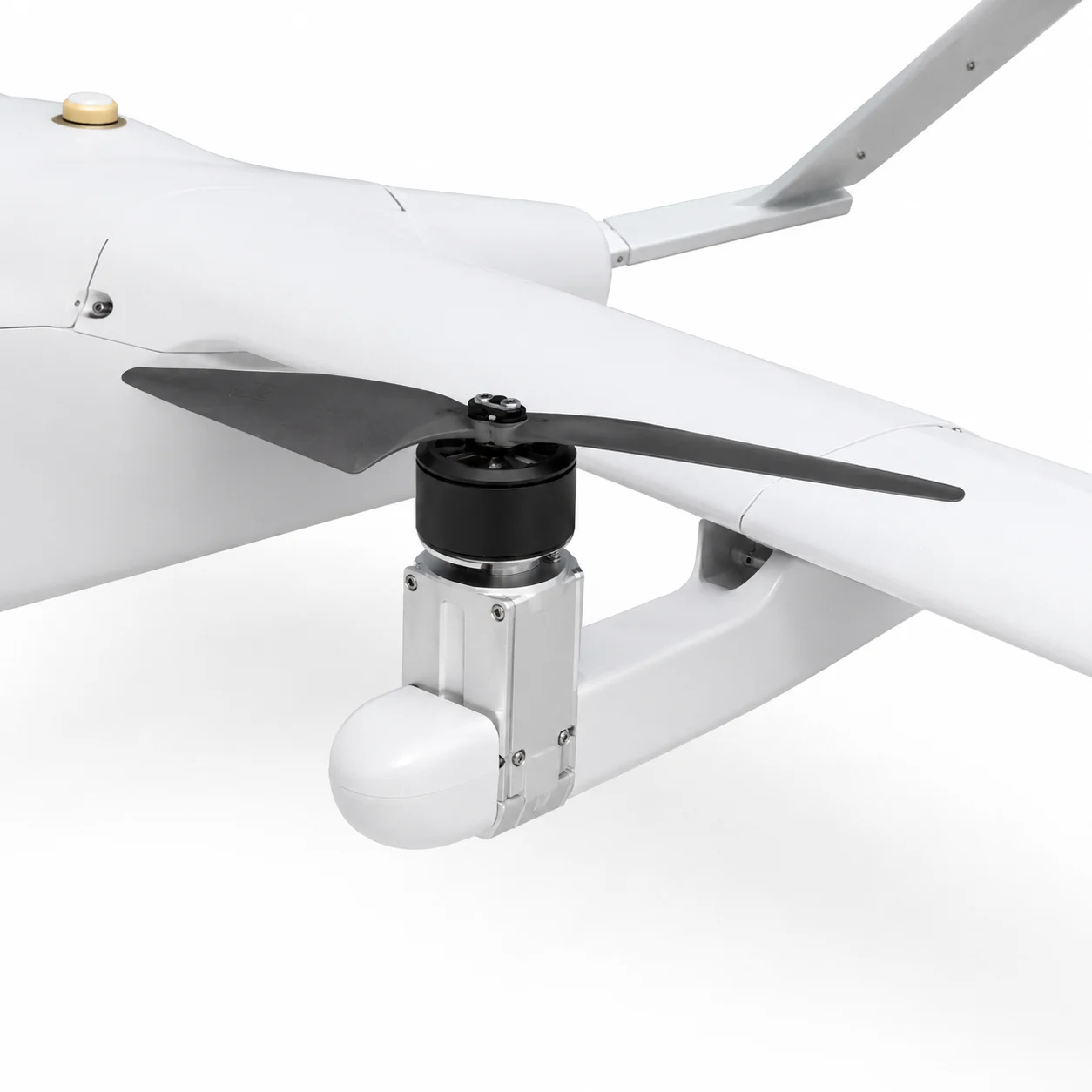

7D tactical reconnaissance VTOL fixed-wing UAV rotor arm detail

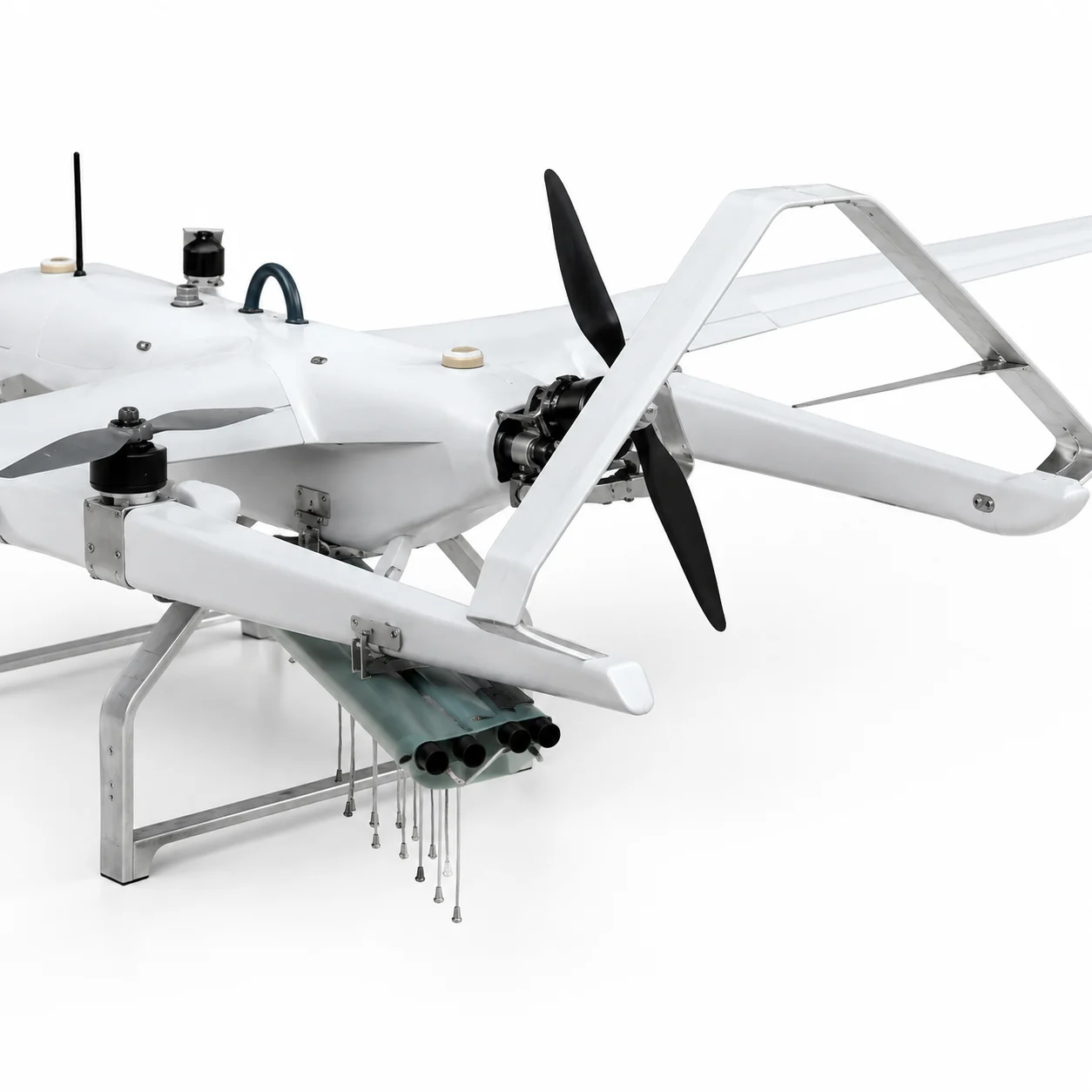

7D tactical reconnaissance VTOL fixed-wing UAV tail rear propeller detail

Key Features

  • Heavy-class VTOL fixed-wing architecture with maximum takeoff weight up to 130 kg
  • Mission payload capacity up to 20 kg with full-load fuel payload profile at 55 kg
  • Up to 4-hour endurance and 550 km economic range for extended mission coverage
  • Cruise speed range of 70-100 km/h for efficient reconnaissance and inspection workflows
  • Operational altitude up to 4500 m and wind resistance up to Level 6
  • Supports both manual flight and autonomous route-based mission execution

Product Overview

The 7D Tactical Reconnaissance VTOL Fixed-Wing UAV is a heavy-class long-endurance platform designed for surveillance, mapping, and industrial inspection missions. It combines VTOL deployment flexibility with fixed-wing cruise efficiency for wide-area operations and high mission productivity.

Request a Quote

Technical Specifications

Airframe Dimensions
Overall Length
3200mm
Wingspan
5500mm
Overall Height
620mm
Payload and Limits
Maximum Mission Payload
20kg
Full-Load Fuel Payload
55kg
Maximum Takeoff Weight
130kg
Maximum Climb Rate
5m/s
Flight and Endurance
Takeoff and Landing
Vertical takeoff and landing (VTOL)
Cruise Speed
70-100km/h
Maximum Endurance
4h
Economic Endurance Range
550km
Maximum Operating Altitude
4500m
Maximum Wind Resistance
Level 6
Mission Systems and Payload Options
Flight Modes
Manual flight and autonomous route flight
Power System
High-efficiency brushless motor system
Typical Payload Options
Nikon D800, Canon 5D, EO gimbal, MicaSense, optional 5-lens camera, military training payload options

Related Products

Explore related products in the Defense & Tactical UAVs range to compare deployment form factors, response methods, and system integration options for similar project requirements.

Explore Related Categories

Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.

Defense & Tactical UAVs

Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.

Industrial Inspection UAVs

Industrial inspection UAVs for safer asset monitoring, faster data capture, and lower inspection downtime.

Agriculture UAV Drones

Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.

Counter-Drone Systems

Counter-drone systems for airports, critical infrastructure, industrial facilities, and public security projects, covering detection, tracking, identification, and authorized response workflows.

Firefighting Drones

Firefighting drones for thermal monitoring, hotspot detection, scene visibility, and emergency-response support across wildfire, urban, and industrial fire operations.

Frequently Asked Questions

What mission profile is 7D best suited for?

7D is designed for long-endurance surveillance, wide-area mapping, and industrial inspection tasks where heavy payload capability and VTOL deployment flexibility are both required.

How should buyers evaluate the 20 kg mission payload capacity?

The 20 kg mission payload supports advanced sensor suites and professional reconnaissance equipment. Final payload planning should consider mission range, route profile, and endurance targets.

Is the 4-hour endurance and 550 km range practical for field planning?

These values are mission-planning references under economic cruise conditions. Actual outcomes depend on payload configuration, weather, speed profile, and operating altitude.

What is the operational value of 4500 m altitude capability?

A 4500 m operating ceiling enables deployment in high-altitude and mountainous environments, improving mission reach for infrastructure inspection and reconnaissance operations.

Can teams switch between manual piloting and autonomous route execution?

Yes. The platform supports both manual flight and autonomous route flight, allowing operators to combine pilot control for dynamic conditions with repeatable automated routes for standardized data collection.

How are pricing and international delivery terms handled?

Pricing is inquiry-based and depends on payload package, mission configuration, and destination. Standard trade terms are FOB and CIF. DDP door-to-door service is not included in the standard scope.
