Type 9 Tactical Loitering UAV System

A compact fixed-wing tactical loitering UAV with a 150 km control radius, 60 m/s maximum speed, 2.5 kg mission payload, and up to 6-aircraft coordinated operation for defense reconnaissance and field surveillance missions.

Type 9 tactical loitering UAV system main product image

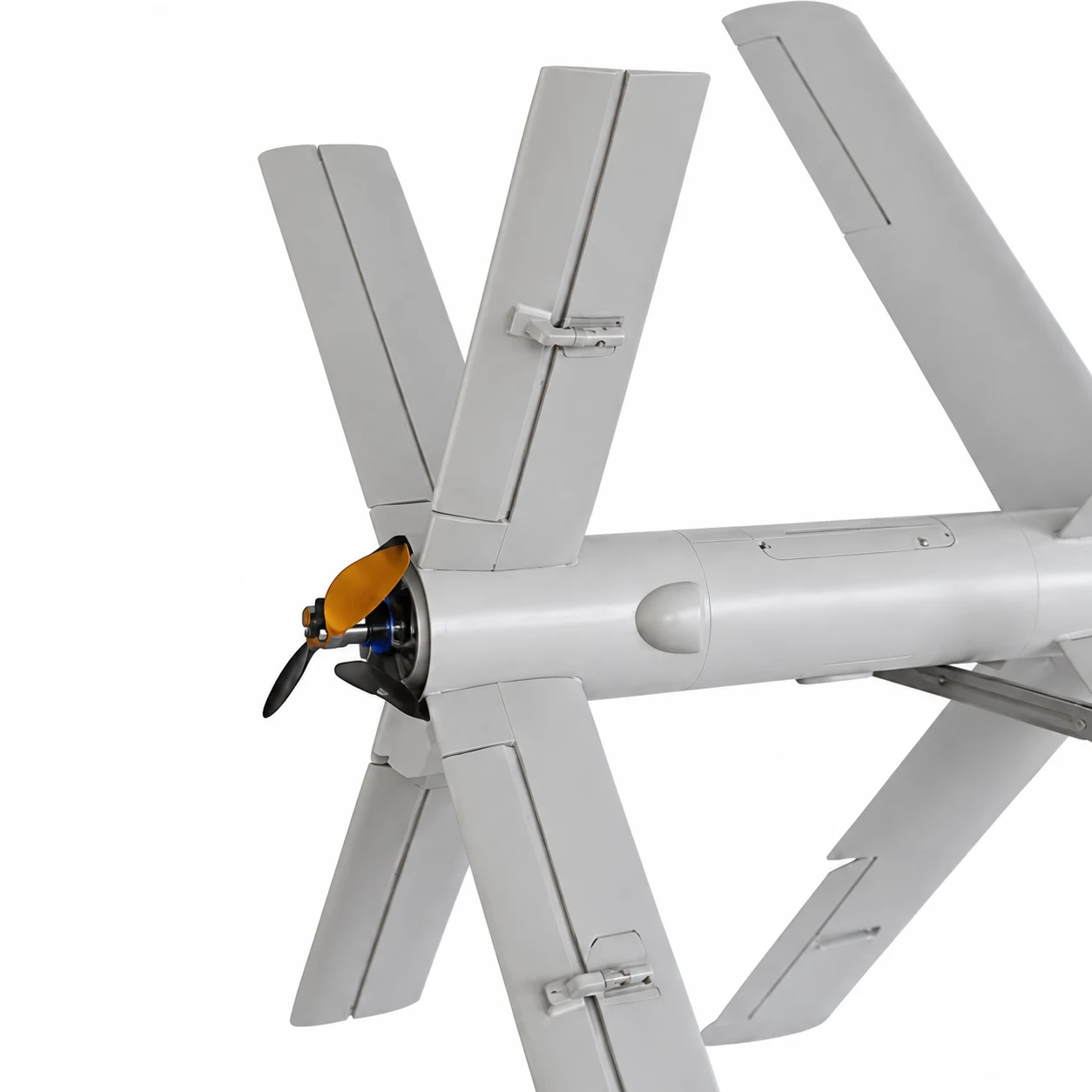

Type 9 tactical loitering UAV airframe detail view

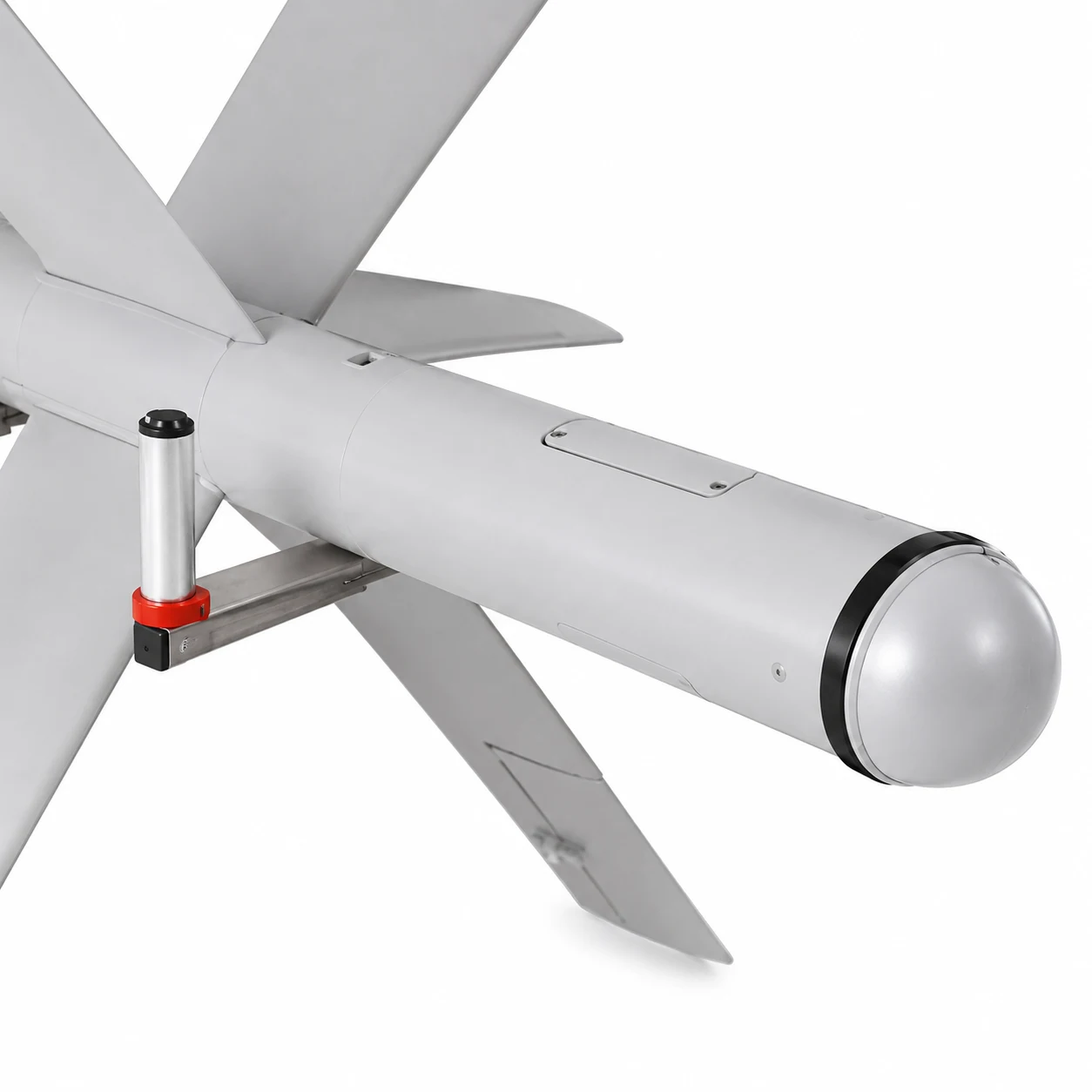

Type 9 tactical loitering UAV rear propeller detail

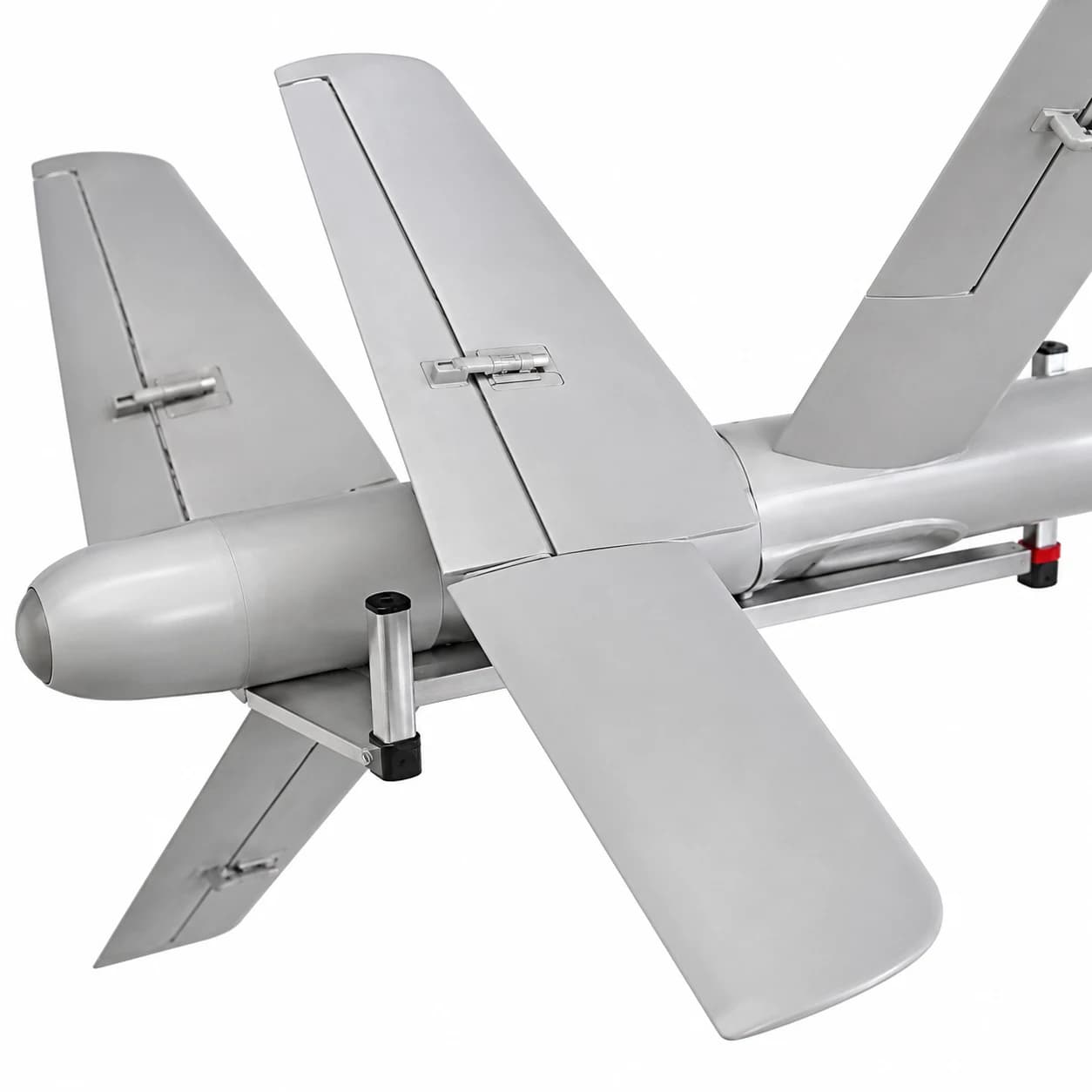

Type 9 tactical loitering UAV tail fin detail

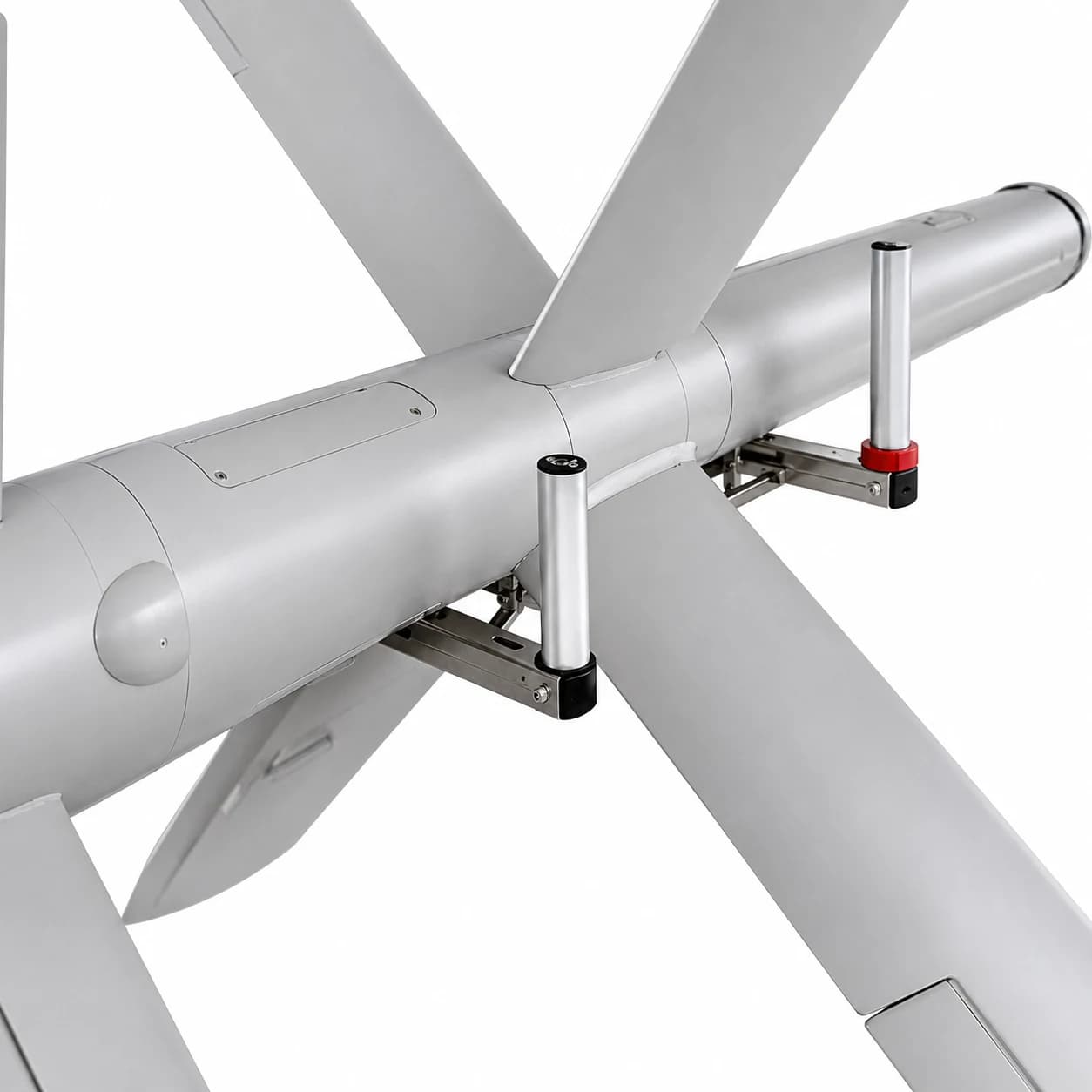

Type 9 tactical loitering UAV wing stabilizer detail

Key Features

  • Fixed-wing tactical loitering architecture for defense reconnaissance and mission-focused deployment
  • Control radius up to 150 km with formation capability of up to 6 aircraft
  • Flight speed range of 45-60 m/s with maximum level speed of 60 m/s
  • Maximum mission payload of 2.5 kg and maximum takeoff weight of 12 kg
  • Operational altitude range from 20-2000 m (MSL) and maximum launch altitude of 4000 m (MSL)

Product Overview

The Type 9 Tactical Loitering UAV System is designed for professional defense and security users who require a compact fixed-wing UAV platform for reconnaissance, surveillance, and field operation support. Its aerodynamic fixed-wing configuration enables faster flight efficiency than conventional multirotor drones, while the 150 km control radius supports extended-area mission coverage. With a maximum takeoff weight of 12 kg, a mission payload capacity of 2.5 kg, and a flight speed range of 45-60 m/s, the Type 9 provides a practical balance between portability, speed, payload capability, and tactical deployment flexibility. The system can also support up to six-aircraft coordinated operation, making it suitable for multi-point observation and wider-area mission planning.

Request a Quote

Technical Specifications

Basic Dimensions
Airframe Length
1.9 m
Wingspan
1.8 m
Flight Performance
Flight Speed Range
45-60 m/s
Maximum Level Speed
60 m/s
Flight Altitude Range
20-2000 m (MSL)
Maximum Launch Altitude
4000 m (MSL)
Maximum Maneuver Load
6 G (instantaneous)
Weight & Payload
Maximum Takeoff Weight
12 kg
Maximum Mission Payload
2.5 kg
Endurance & Control
Endurance Time
< 60 min
Control Radius
150 km
Formation Capability
6 aircraft

Related Products

Explore related products in the Defense & Tactical UAVs range to compare deployment form factors, response methods, and system integration options for similar project requirements.

Explore Related Categories

Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.

Defense & Tactical UAVs

Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.

Agriculture UAV Drones

Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.

Counter-Drone Systems

Counter-drone systems for airports, critical infrastructure, industrial facilities, and public security projects, covering detection, tracking, identification, and authorized response workflows.

Firefighting Drones

Firefighting drones for thermal monitoring, hotspot detection, scene visibility, and emergency-response support across wildfire, urban, and industrial fire operations.

FPV Drones

FPV drones for training, testing, custom integration, and configurable first-person flight projects with low-latency control and flexible setup options.

Frequently Asked Questions

What is the Type 9 Tactical Loitering UAV System?

The Type 9 Tactical Loitering UAV System is a compact fixed-wing UAV platform designed for professional defense, reconnaissance, surveillance, and field operation applications. It features a lightweight airframe, efficient fixed-wing flight performance, and a mission-ready configuration for B2B customers who need a tactical UAV solution. With a control radius of up to 150 km, a maximum speed of 60 m/s, and a maximum mission payload of 2.5 kg, it is well suited for organizations requiring a reliable tactical fixed-wing UAV platform for professional operations.

What category does the Type 9 UAV belong to?

The Type 9 belongs to the Defense & Tactical UAVs category, with a more specific positioning in loitering UAV systems and fixed-wing tactical UAV applications. Unlike multirotor drones, the Type 9 uses a fixed-wing aerodynamic design, which provides higher flight efficiency, faster cruising speed, and stronger long-distance operation capability for reconnaissance, surveillance, and extended field missions.

What are the main applications of the Type 9 Tactical Loitering UAV?

The Type 9 Tactical Loitering UAV System is designed for professional B2B and defense-related scenarios, including tactical reconnaissance, area surveillance, perimeter monitoring, border observation, field operation support, security patrol, and multi-UAV coordinated missions. It is especially suitable for customers who need a fixed-wing UAV system with longer control distance, fast deployment, flexible mission payload options, and reliable performance in field environments.

What are the key performance specifications of the Type 9 UAV?

The Type 9 UAV has a fuselage length of 1.9 m and a wingspan of 1.8 m. Its flight speed range is 45-60 m/s, with a maximum level speed of 60 m/s. It supports a flight altitude range of 20-2000 m above sea level, a maximum launch altitude of 4000 m above sea level, and an instantaneous maneuvering load of 6 G. The maximum takeoff weight is 12 kg, and the maximum mission payload is 2.5 kg. These specifications make it a compact but capable tactical fixed-wing UAV for defense, reconnaissance, and surveillance operations.

What is the endurance and control radius of the Type 9 UAV?

The Type 9 Tactical Loitering UAV System provides an endurance of under 60 minutes, depending on payload weight, flight speed, altitude, weather conditions, and mission profile. Its control radius can reach up to 150 km, depending on communication configuration, ground control setup, terrain conditions, and operational environment. This long-range control capability supports extended-area reconnaissance, tactical surveillance, and field operation support.

Does the Type 9 UAV support payload customization?

Yes. The Type 9 supports payload customization within the 2.5 kg maximum mission payload limit. Depending on project requirements, the platform can be configured with mission modules, communication equipment, tracking devices, sensor systems, or other customer-specific payload interfaces. For B2B projects, we recommend confirming payload type, weight, operating scenario, and integration requirements before quotation.

Does the Type 9 UAV support multi-aircraft or swarm operation?

Yes. The Type 9 Tactical Loitering UAV System supports up to 6-aircraft coordinated operation, depending on ground control architecture, communication configuration, and mission management setup. This capability is valuable for wider area coverage, coordinated reconnaissance, multi-point observation, and flexible UAV fleet deployment in professional operations.

What trade terms do you support for international orders?

For international B2B orders, standard trade terms are FOB and CIF. FOB means the buyer arranges international freight after delivery to the agreed port of shipment, while CIF includes freight and insurance arranged to the agreed destination port. DDP, DAP, EXW, and door-to-door delivery are not included in the standard scope and can be discussed case by case for specific projects. For accurate quotation, please provide destination port, order quantity, required configuration, and customization requirements.
