Type 2 Tactical Loitering UAV System

A compact foldable fixed-wing tactical loitering UAV with 120 km range, 60 min endurance, 5 kg mission payload, and 30 km communication distance for defense reconnaissance, surveillance, and field operation scenarios.

Type 2 tactical loitering UAV system main product image

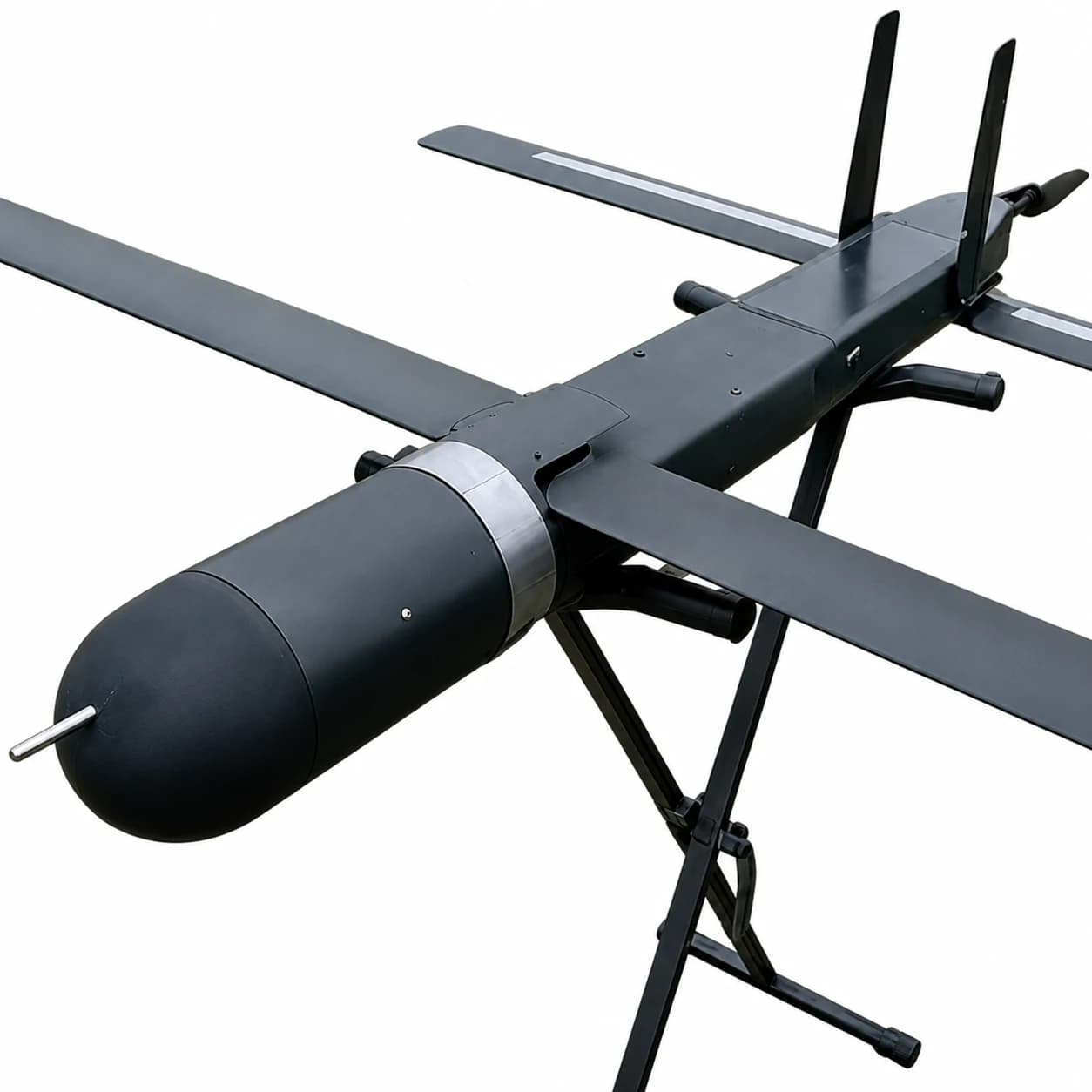

Type 2 tactical loitering UAV airframe detail view

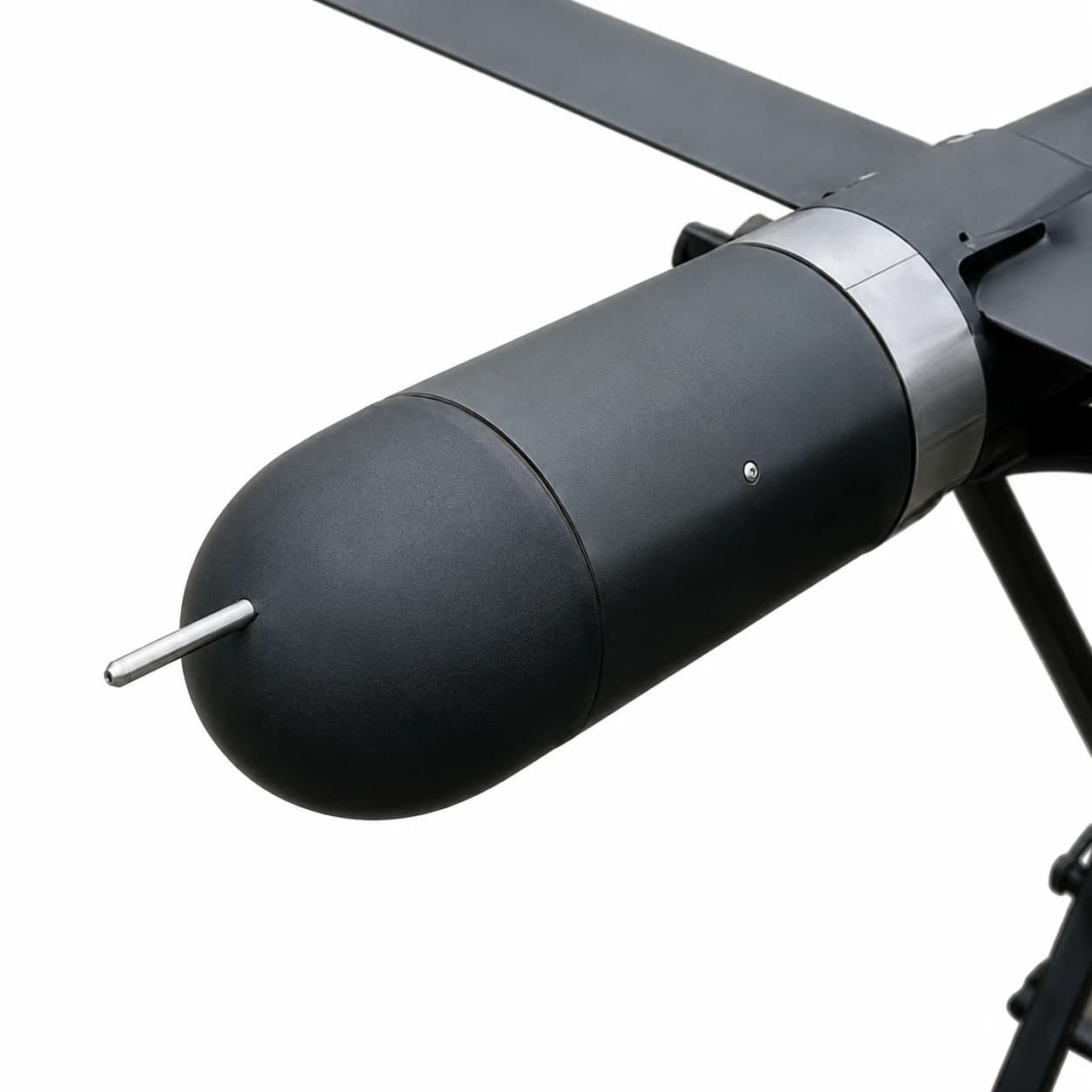

Type 2 tactical loitering UAV nose section detail

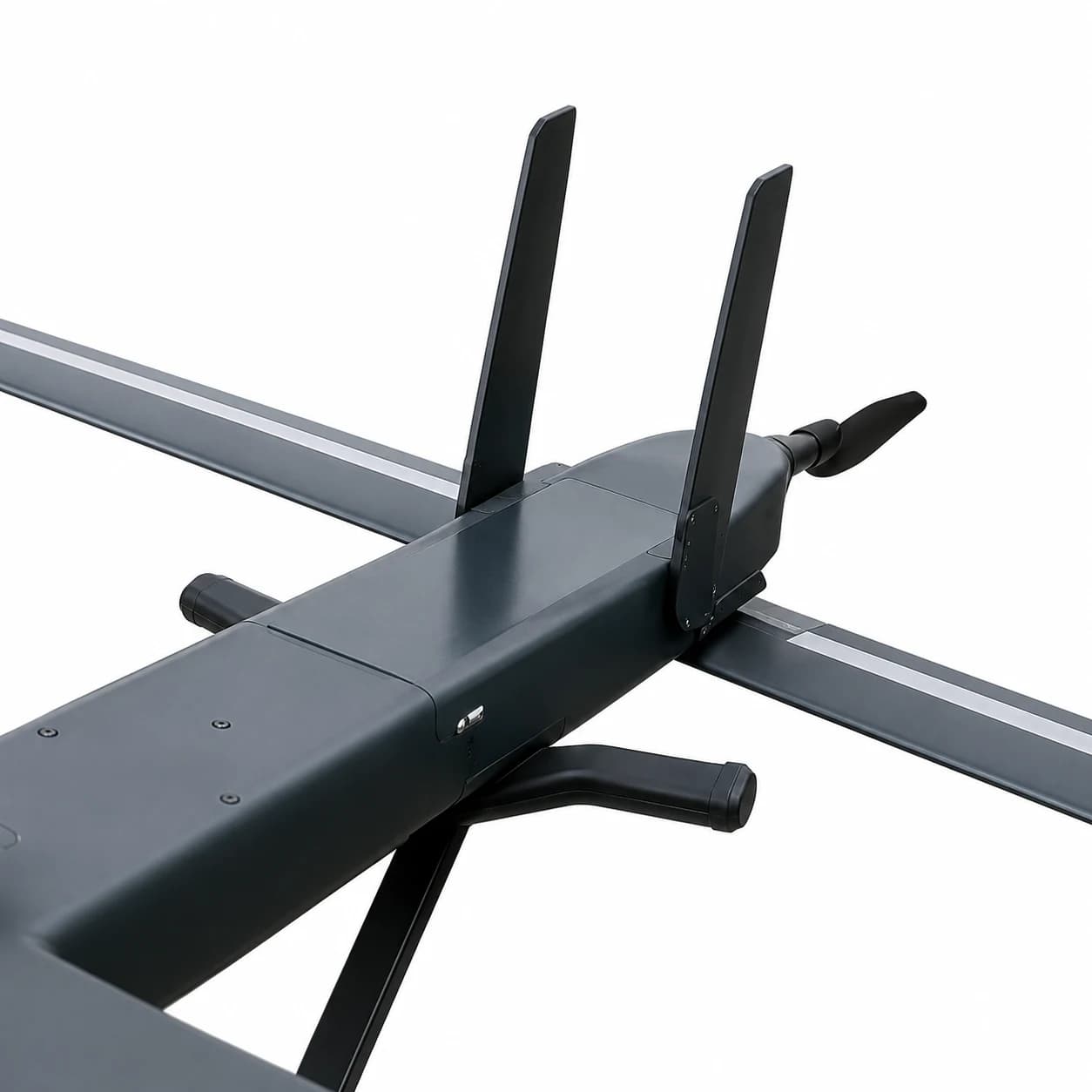

Type 2 tactical loitering UAV tail propulsion detail

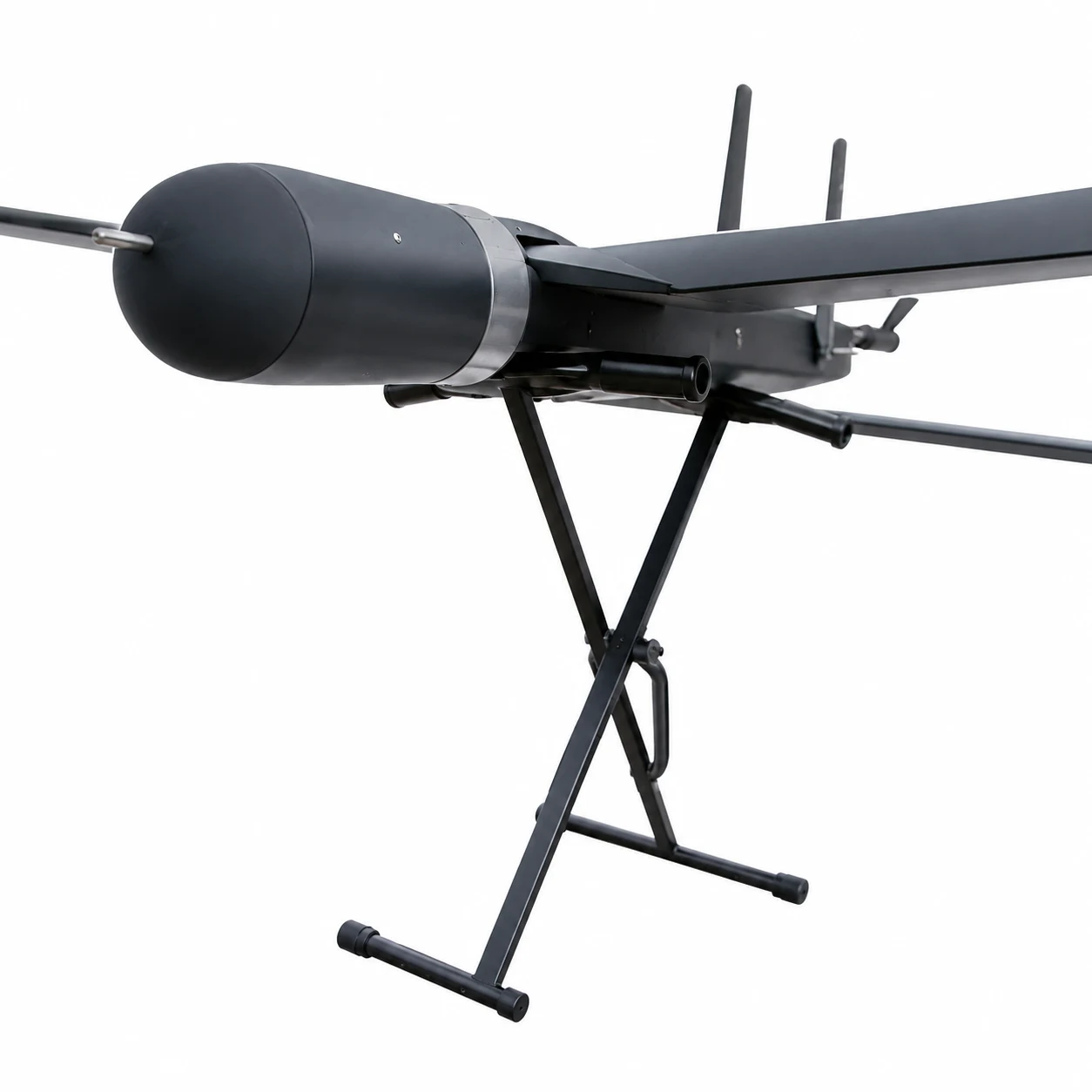

Type 2 tactical loitering UAV underside wing detail

Key Features

  • Compact foldable fixed-wing loitering UAV for tactical reconnaissance and field operations
  • Maximum flight speed of 140-160 km/h with operating altitude range of 100-3000 m
  • Maximum range ≥ 120 km and endurance ≥ 60 min for extended mission coverage
  • Mission payload ≥ 5 kg with communication distance ≥ 30 km
  • Environmental adaptability with broad operating and storage temperature envelope

Product Overview

The Type 2 Tactical Loitering UAV System is a compact fixed-wing UAV platform designed for defense reconnaissance, surveillance, and mission-focused field operations. With a foldable airframe design, the system supports easier transportation, storage, and deployment compared with conventional fixed-wing UAV platforms. The platform offers a maximum range of 120 km, endurance of up to 60 minutes, a mission payload capacity of 5 kg, and a communication distance of up to 30 km. With a maximum flight speed of 140-160 km/h and an operating altitude range of 100-3000 m, the Type 2 provides a practical balance between portability, payload capability, endurance, and tactical deployment flexibility.

Request a Quote

Technical Specifications

Flight Performance
Maximum Takeoff Weight
≥ 15 kg
Maximum Flight Speed
140-160 km/h
Maximum Range
≥ 120 km
Operating Altitude
100-3000 m
Endurance
≥ 60 min
Communication Distance
≥ 30 km
Mission Payload
≥ 5 kg
Dimensions
Fuselage Length (excluding motor)
≥ 1300 mm
Wingspan
≥ 1800 mm
Maximum Folded Diameter
≤ 180 mm
Maximum Folded Length
≤ 1800 mm
Environmental Adaptability
Operating Temperature
-20°C to +50°C
Storage Temperature
-10°C to +70°C
Relative Humidity
≤ 70%

Related Products

Explore related products in the Defense & Tactical UAVs range to compare deployment form factors, response methods, and system integration options for similar project requirements.

Explore Related Categories

Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.

Defense & Tactical UAVs

Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.

Agriculture UAV Drones

Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.

Counter-Drone Systems

Counter-drone systems for airports, critical infrastructure, industrial facilities, and public security projects, covering detection, tracking, identification, and authorized response workflows.

Firefighting Drones

Firefighting drones for thermal monitoring, hotspot detection, scene visibility, and emergency-response support across wildfire, urban, and industrial fire operations.

FPV Drones

FPV drones for training, testing, custom integration, and configurable first-person flight projects with low-latency control and flexible setup options.

Frequently Asked Questions

What is the Type 2 Tactical Loitering UAV System?

The Type 2 Tactical Loitering UAV System is a compact fixed-wing UAV platform designed for professional defense, reconnaissance, surveillance, and field operation scenarios. It features a foldable airframe design, reliable flight performance, and flexible mission payload capacity for B2B customers who need a portable tactical UAV solution. With a range of 120 km or above, endurance of 60 minutes or above, and mission payload capacity of 5 kg or above, the Type 2 provides a practical balance between portability, endurance, payload capability, and deployment flexibility.

What category does the Type 2 UAV belong to?

The Type 2 belongs to the category of Defense & Tactical UAVs, with a more specific classification under Loitering UAV Systems and Foldable Fixed-Wing UAVs. Unlike multirotor drones, the Type 2 uses a fixed-wing aerodynamic structure, which allows better flight efficiency, longer range, and higher cruising speed. Its foldable structure also makes it easier to transport, store, and deploy in field operation environments.

What are the main applications of the Type 2 Tactical Loitering UAV?

The Type 2 Tactical Loitering UAV System is suitable for professional B2B and defense-related applications, including reconnaissance, surveillance, perimeter monitoring, field operation support, security observation, and mission-focused UAV deployment. It is especially suitable for customers looking for a foldable fixed-wing UAV with longer range, practical payload capacity, and easier transportation compared with larger fixed-wing UAV platforms.

What are the key performance specifications of the Type 2 UAV?

The Type 2 Tactical Loitering UAV has a maximum takeoff weight of 15 kg or above and a mission payload capacity of 5 kg or above. It supports a maximum flight speed of 140-160 km/h, a maximum range of 120 km or above, and an endurance of 60 minutes or above. The UAV can operate at an altitude range of 100-3000 m, with a communication distance of 30 km or above. These specifications make it a practical tactical fixed-wing UAV for reconnaissance, surveillance, and field operation scenarios.

What makes the Type 2 UAV different from larger fixed-wing UAVs?

The key advantage of the Type 2 UAV is its foldable airframe design. Its fuselage length is 1300 mm or above excluding the motor, and its wingspan is 1800 mm or above. After folding, the maximum diameter is 180 mm or below, and the maximum folded length is 1800 mm or below. This makes the Type 2 easier to transport and store than many traditional fixed-wing UAVs, while still providing strong range, endurance, and payload capability for tactical and professional applications.

Can the Type 2 UAV support payload customization?

Yes. The Type 2 UAV supports a mission payload of 5 kg or above, and the payload configuration can be customized according to customer requirements. Depending on the project, the UAV platform can support different mission modules, communication equipment, sensor systems, tracking devices, or customer-specific payload interfaces. Before quotation, we recommend confirming the payload type, weight, integration method, and operating scenario.

What operating environments can the Type 2 UAV support?

The Type 2 Tactical Loitering UAV is designed for field operation environments. It supports an operating temperature range from -20°C to +50°C, a storage temperature range from -10°C to +70°C, and a relative humidity condition of 70% or below. Actual performance may vary depending on payload configuration, wind conditions, altitude, mission profile, and communication environment. For project-based procurement, customers can share their operating conditions so that we can recommend a suitable configuration.
