Type 10 High-Speed Turbojet UAV

A high-speed turbojet fixed-wing UAV with 210 m/s maximum speed, 300 km range, 20 kg payload capacity, and low-RCS airframe design for defense, tactical, and specialized field operation scenarios.

Type 10 high-speed turbojet UAV main product image

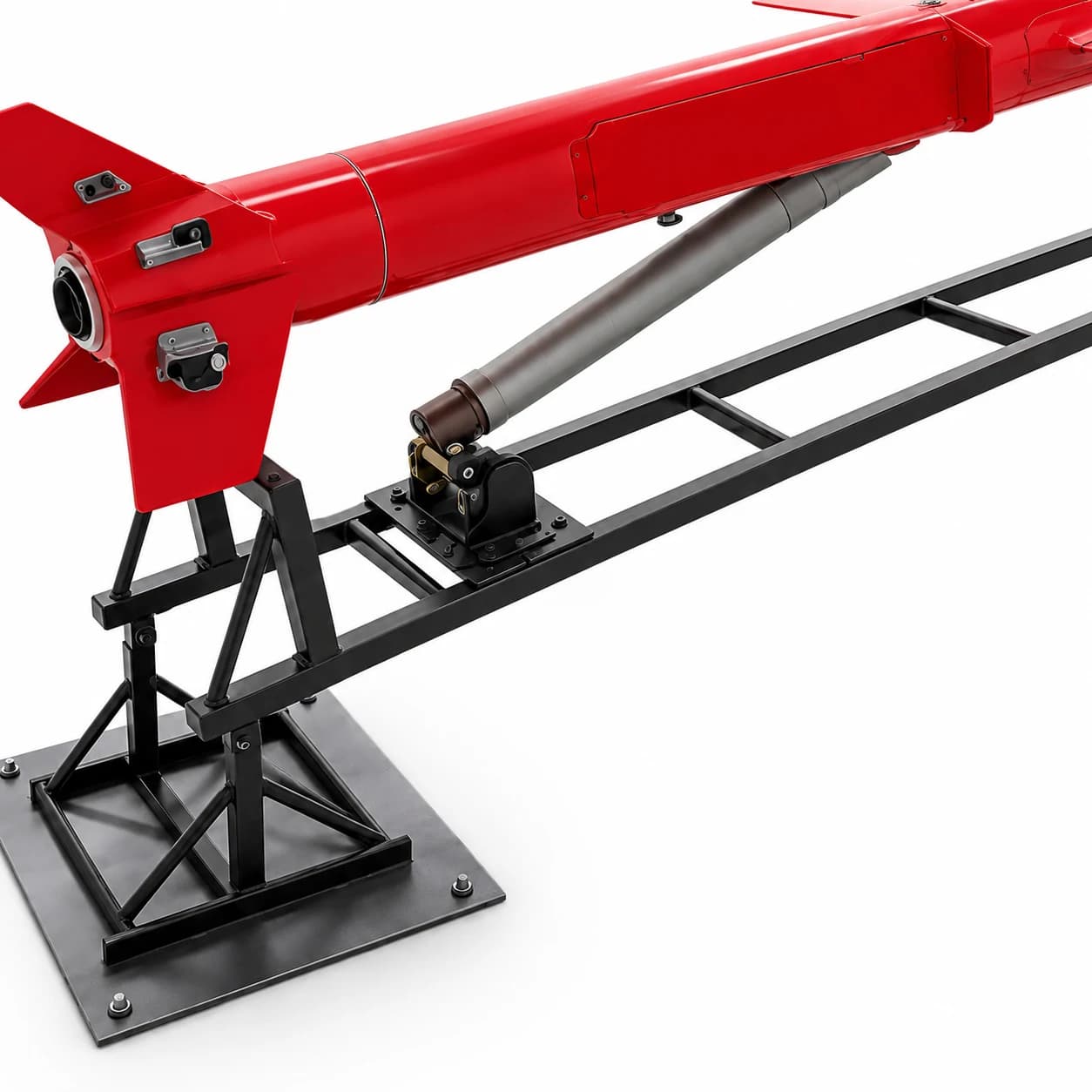

Type 10 high-speed turbojet UAV launch frame detail

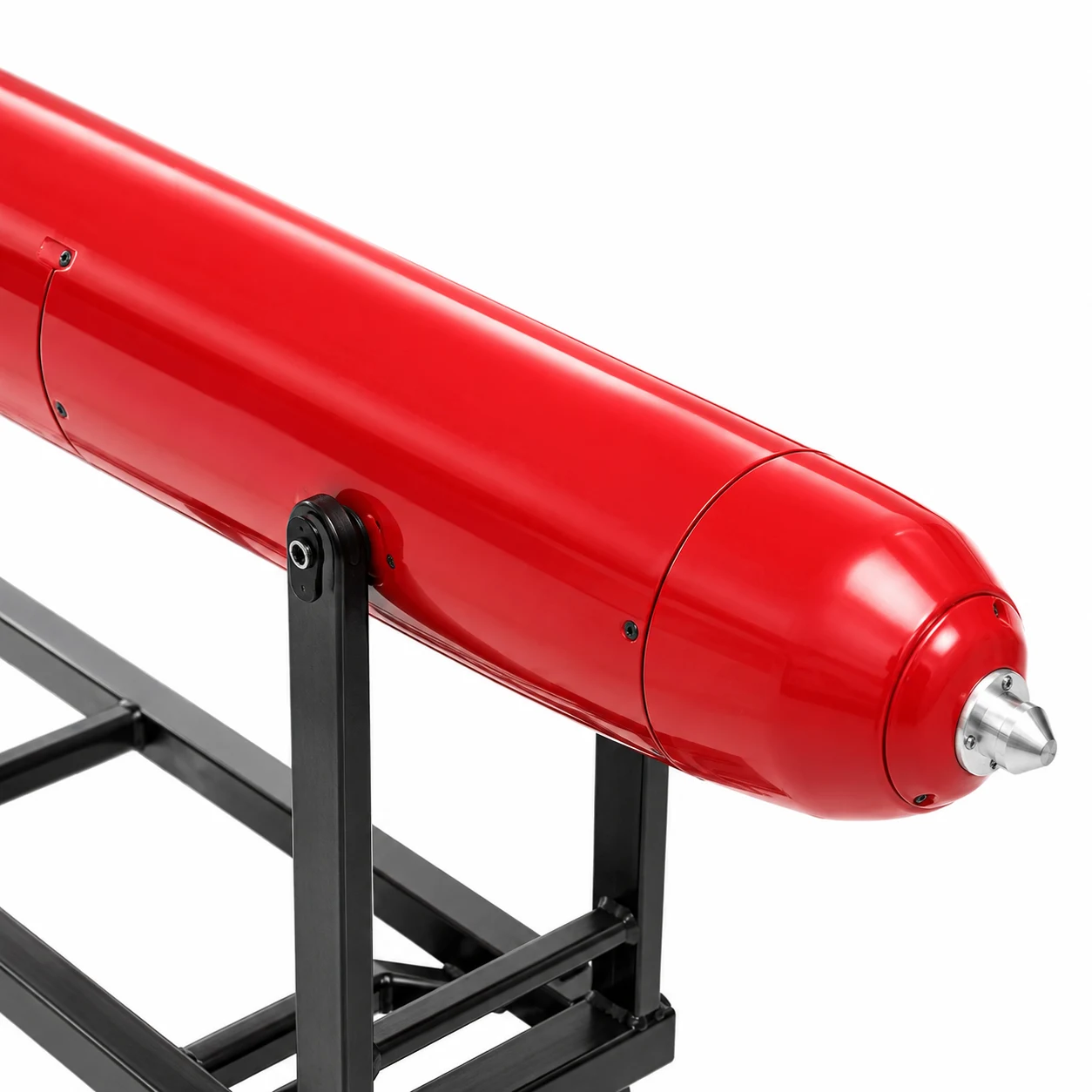

Type 10 high-speed turbojet UAV nose section detail

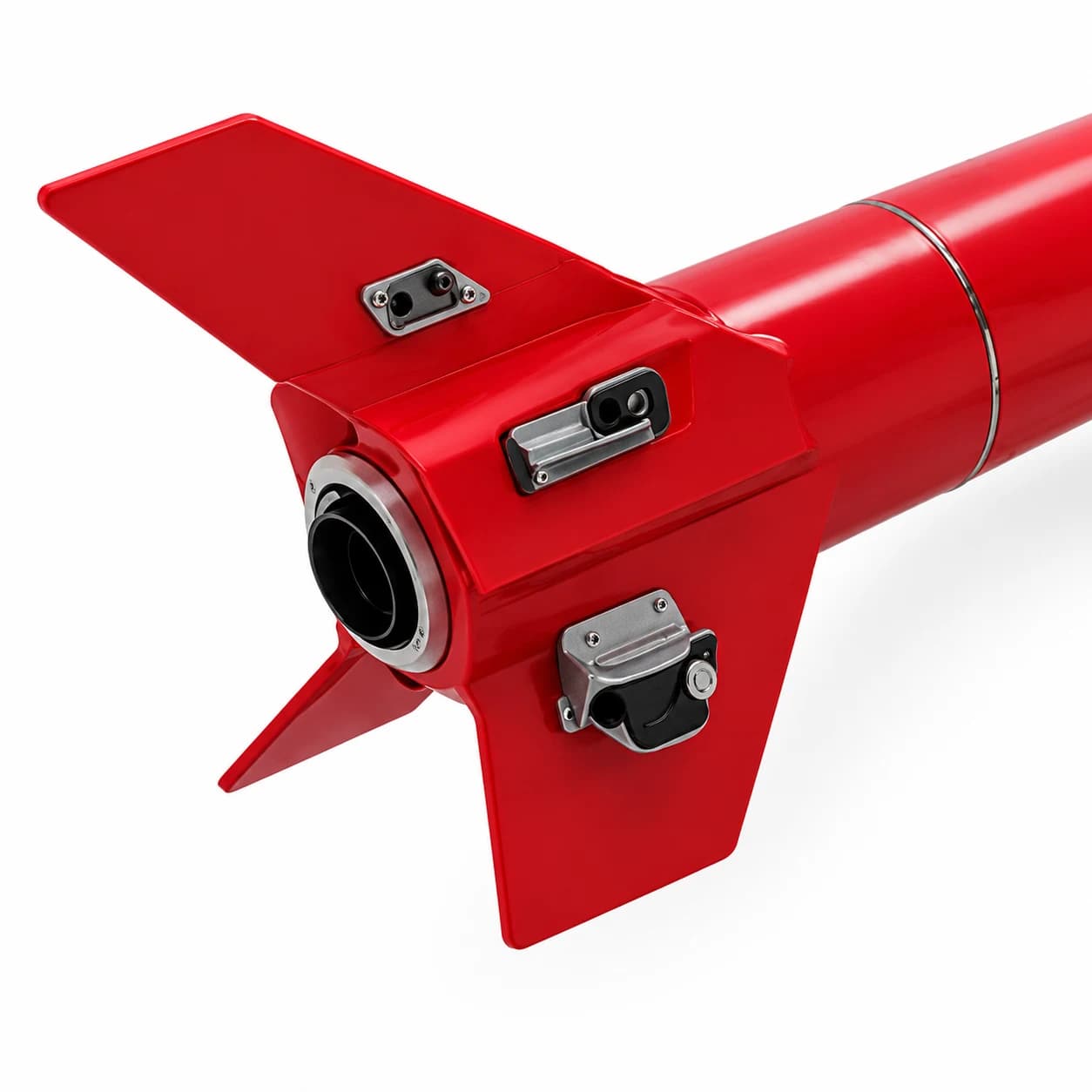

Type 10 high-speed turbojet UAV tail fin detail

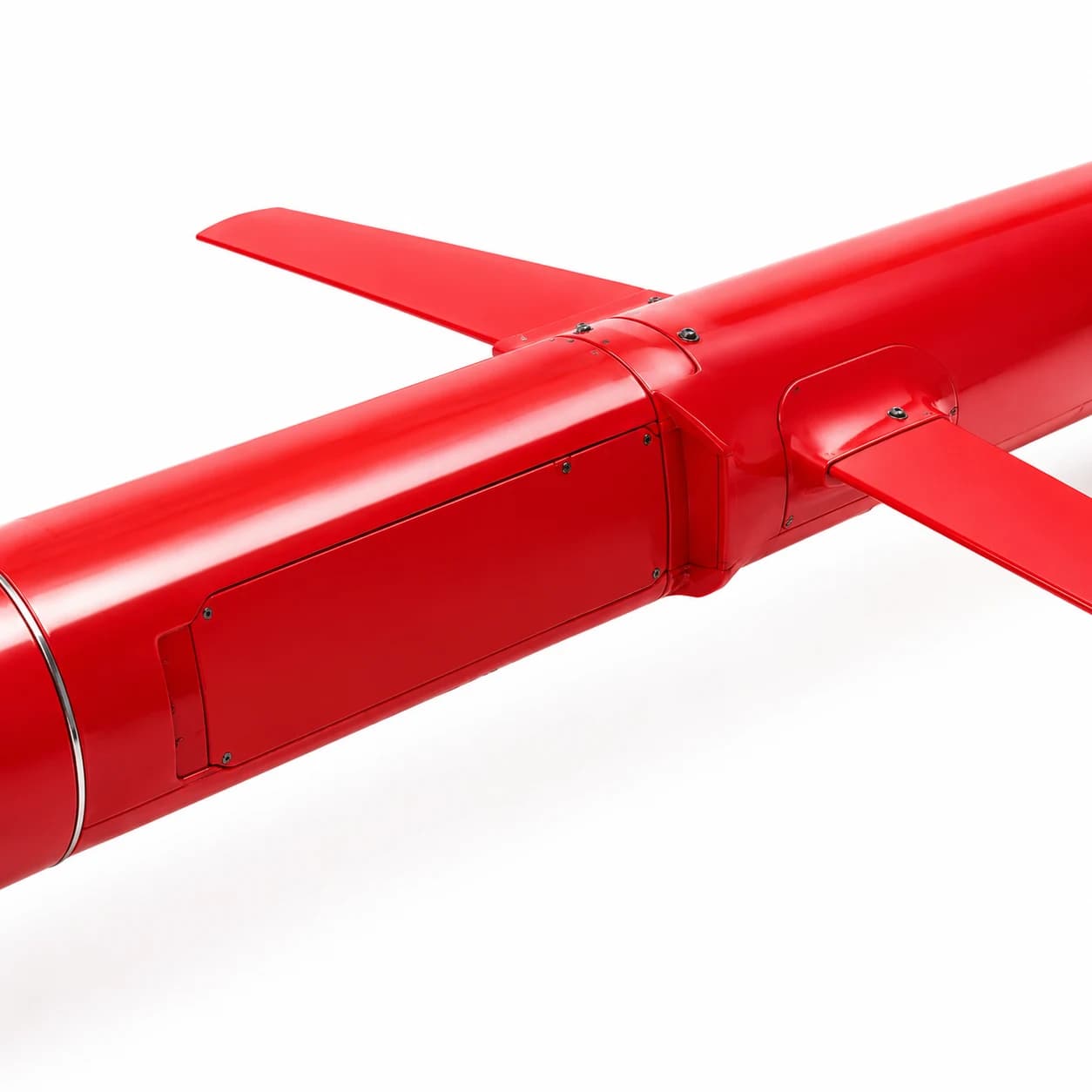

Type 10 high-speed turbojet UAV wing and mid-body detail

Key Features

  • High-speed turbojet fixed-wing architecture with 210 m/s maximum flight speed
  • Cruising speed envelope of 180-200 m/s for fast-response mission profiles
  • 300 km maximum range and 40 min flight endurance for tactical field deployment
  • 20 kg effective payload capacity for mission-specific equipment integration
  • Low-RCS airframe with frontal RCS not exceeding 0.01 m²

Product Overview

The Type 10 High-Speed Turbojet UAV is a fixed-wing tactical UAV platform designed for high-speed flight, long-range operation, and mission-focused deployment. Powered by a turbojet engine, the system supports a cruising speed of 180-200 m/s and a maximum flight speed of 210 m/s, making it suitable for customers who require fast-response UAV solutions for defense and specialized field applications. With a maximum range of 300 km, 40 min flight endurance, 20 kg payload capacity, and a low-RCS airframe design, the Type 10 provides a practical balance between speed, payload capability, operational range, and cost efficiency. Its compact airframe structure also supports flexible transportation, launch preparation, and project-based customization for B2B users.

Request a Quote

Technical Specifications

Flight Envelope
Patrol Flight Altitude
10 m-10 km
Maximum Flight Speed
210 m/s
Patrol Flight Speed
180-200 m/s
Payload & Endurance
Effective Payload
20 kg
Flight Endurance
40 min
Maximum Range
300 km
Power, Dimensions & Signature
Patrol-Class Power System
Turbojet engine
Dimensions
Overall length approx. 3.0 m, wingspan approx. 1.4 m
Stealth Characteristic
Frontal RCS ≤ 0.01 m²

Related Products

Explore related products in the Defense & Tactical UAVs range to compare deployment form factors, response methods, and system integration options for similar project requirements.

Explore Related Categories

Browse adjacent product categories to find complementary platforms, alternative configurations, and broader solution paths connected to this product line.

Defense & Tactical UAVs

Mission-ready tactical UAV platforms for reconnaissance, surveillance, border patrol, and specialized payload operations in complex environments.

Agriculture UAV Drones

Agriculture UAV drones for spraying, spreading, crop protection, and precision farm operations across commercial field, orchard, and plantation environments.

Counter-Drone Systems

Counter-drone systems for airports, critical infrastructure, industrial facilities, and public security projects, covering detection, tracking, identification, and authorized response workflows.

Firefighting Drones

Firefighting drones for thermal monitoring, hotspot detection, scene visibility, and emergency-response support across wildfire, urban, and industrial fire operations.

FPV Drones

FPV drones for training, testing, custom integration, and configurable first-person flight projects with low-latency control and flexible setup options.

Frequently Asked Questions

What is the Type 10 High-Speed Turbojet UAV?

The Type 10 High-Speed Turbojet UAV is a fixed-wing unmanned aerial vehicle designed for high-speed flight, long-range operation, and professional defense-related applications. Powered by a turbojet engine, it is built for customers who require a fast-response UAV platform with strong payload capacity and extended mission range. With a maximum flight speed of 210 m/s, a cruise speed of 180-200 m/s, a maximum range of 300 km, and a payload capacity of 20 kg, the Type 10 provides a practical solution for B2B users looking for a high-speed fixed-wing UAV or turbojet UAV platform.

What category does the Type 10 UAV belong to?

The Type 10 belongs to the category of Defense & Tactical UAVs, with a more specific classification under High-Speed Fixed-Wing UAVs and Turbojet UAV Systems. Unlike electric multirotor drones or small mapping UAVs, the Type 10 is designed around high-speed fixed-wing flight. Its turbojet propulsion system gives it higher speed, stronger flight performance, and better suitability for long-range tactical and specialized field operation scenarios.

What are the main applications of the Type 10 High-Speed Turbojet UAV?

The Type 10 High-Speed Turbojet UAV is suitable for professional B2B and defense-related applications that require speed, range, and payload capability. Typical application scenarios include high-speed UAV flight testing, defense and tactical training programs, long-range field operation support, payload integration and system evaluation, target simulation and test platform applications, and specialized aerospace and UAV research projects. Its high-speed flight capability and turbojet propulsion make it suitable for customers who need a fast fixed-wing UAV platform rather than a low-speed conventional drone.

What are the key performance specifications of the Type 10 UAV?

The Type 10 High-Speed Turbojet UAV has a maximum flight speed of 210 m/s and a cruise speed of 180-200 m/s. It supports a maximum range of 300 km and a flight endurance of approximately 40 minutes, depending on mission profile, payload configuration, altitude, and operating conditions. The platform supports a payload capacity of 20 kg, with an airframe length of more than 3.0 m and a wingspan of more than 1.4 m. Its turbojet engine and compact fixed-wing structure make it suitable for high-speed, long-range, and mission-focused applications.

What propulsion system does the Type 10 UAV use?

The Type 10 UAV uses a turbojet engine, which provides the high-speed performance required for professional fixed-wing UAV applications. Compared with electric propulsion systems, turbojet propulsion is better suited for high-speed flight, extended-distance operation, and specialized mission profiles where speed and power are important. This makes the Type 10 a strong option for customers looking for a turbojet UAV, high-speed UAV, or fixed-wing tactical UAV platform.

Can the Type 10 UAV support payload customization?

Yes. The Type 10 UAV supports a payload capacity of up to 20 kg, and the payload configuration can be customized according to project requirements. Depending on the customer application, the platform can be configured for different mission modules, test equipment, communication systems, sensor packages, or customer-specific payload interfaces. For B2B projects, we recommend confirming the payload type, payload weight, integration method, and operating scenario before quotation.

What information should I provide before requesting a quotation?

To provide an accurate quotation for the Type 10 High-Speed Turbojet UAV, please share the following information: required quantity, destination country or region, expected application scenario, required payload type and weight, required communication and control configuration, ground support or launch frame requirements, customization requirements, spare parts needs, and expected delivery schedule. Because this product is intended for professional B2B use, order availability may depend on end-user verification, destination requirements, and applicable export compliance procedures.

What trade terms do you support for international orders?

For international B2B orders, we currently support FOB and CIF trade terms only. FOB means the buyer arranges international freight after the goods are delivered to the agreed port of shipment. CIF means we arrange freight and insurance to the agreed destination port. At this stage, we do not support DDP, DAP, EXW, or door-to-door delivery terms. For an accurate quotation, please provide your destination port, order quantity, required configuration, and any customization requirements.
